The IC testing system is designed for the measuremet of EMC behavior of circuits (ICs) at specific radiated or conducted disturbance influences and for transmission measurements. The test IC is tested in operation. The ICE1 test environment generates the functional environment of the test ICs. The respective measuring task is done with the appropriate probe set. These sets are not included in the scope of delilvery.

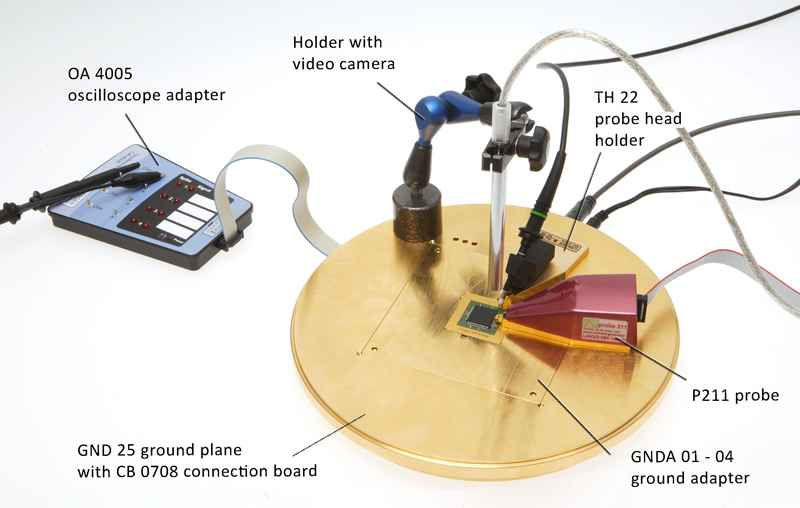

The test IC is installed on the test PC board. The costumer can prepare the test PC board (IC test instructions of Langer EMV-Technik GmbH) or the costumer can place an order at Langer EMV-Technik GmbH. The PC board is inserted into the GND 25 ground plate and via a connector connected to CB 0708 connecting board. Other ICE1 set components are: different ground adapter for testing different PC boards, connection board control software, an oscilloscope adapter for transforming measured signals in order to visualize them at the oscilloscope. Additional equipment for setting up IC test stations are included in the scope of delivery as well.
ICE1 Set Scope of Delivery Includes:
- 1xCB 0708, Connection Board
- 1xCB Control, Connection Board Control Software
- 1xCU 22, Control Unit
- 1xGND 25, Ground Plane
- 1xGNDA 01, Ground Adapter 22.9 mm x 22.9 mm
- 1xGNDA 02, Ground Adapter 32.9 mm x 32.9 mm
- 1xGNDA 03, Ground Adapter 22.9 mm x 68.3 mm
- 1xGNDA 04, Ground Adapter 45.8 mm x 68.3 mm
- 1xOA 4005, Oscilloscope Adapter
- 1xDM-CAM, Digital Microscope Camera
- 1xSGA 30, Probe Adapter
- 1xSGA 45, Probe Adapter
- 1xTH 22, Probe Head Holder
- 1xPMK ARM 130, Universal Holder
- 1xUSB-AB, USB Cable Type A-B
- 1xNT FRI EU, Power Supply Unit
- 1xICE1 acc, Accessories
- 1xICE case, System Case
- 1xICE1 m, ICE1 Set User Manual
Langer EMV ICE1 Set IC Test Environment
Order Info
Please allow 2 - 3 weeks lead time for this new product to arrive.
Made and manufactured in Germany.
Comes with a One Year warranty from the manufacturer.
CB 0708 Connection Board
The CB 0708 connection board is used to control and monitor the test IC. The connection board is inserted into the GND 25 ground plane and connected to the test board and therefore to the test IC via a wall plug connector. Sockets for connecting external devices and signals are on the side of the connection board. The CB 0708 is controled by Connection Board Control software
The micro controller on the back side of CB 0708 monitors the communication with the test IC. It provides an interface to a PC to send and receive commands and signals via USB. The incoming and outgoing signals can be connected with the test IC and the micro controller via wiring fields. Thus, the CB 0708 can be adapted to the respective test IC. The three LEDs allow for the visualization of freely selectable signals.
Technical parameters
Supply voltage 12 V DC or USB Connector USB Weight 200 g Sizes (L x W x H) ∅ 215 mm, H = 23 mm CB Control Connection Board Control Software
The Connection Board Control software is used to monitor and control the test IC. The test IC is connected to the PC via the Connection Board. The signals are transmitted to the Connection Board Control software via a USB cable and displayed in the user interface.
Technical parameters
Operating system Windows XP SP3 and above Interface USB HD space 20 MB Processor Pentium III 500 MHz Memory 128 MB GND 25 Ground Plane
The GND 25 ground plane ensures the RF-compatible contacting of the probe during an EMC measurement at a test IC. The GND 25 consists of steel with a gold plated surface. The recess (103 mm x 103 mm) is designed for the placement of GNDA ground adapters (GNDA 01-04) and TEM cell prints (100 mm x 100 mm).
The CB 0708 connection board is placed into the undersite of the ground plane. On the ground plane there are three openings for LEDs.
Technical parameters
Height 24 mm Depth of the recess 1.7 mm Diameter 218 mm Opening (103 x 103) mm Weight 2 kg OA 4005 Oscilloscope Adapter
The OA 4005 is used to monitor the test IC and to visualize its signals. It is connected with the CB 0708 connection board via a flat ribbon cable. The LED signals 1-4 and spikes 1-4 show the signals of the test IC. Furthermore, there are four connections for oscilloscope probes (CH1-CH4).
The flat ribbon cable from the connection board ensures the power supply to the OA 4005.
Technical parameters
Cut-off frequency 45 MHz sine wave Cut-off frequency 1 MHz rectangle wave Max. input voltage RF 50 V ICE1 Set User Manual
