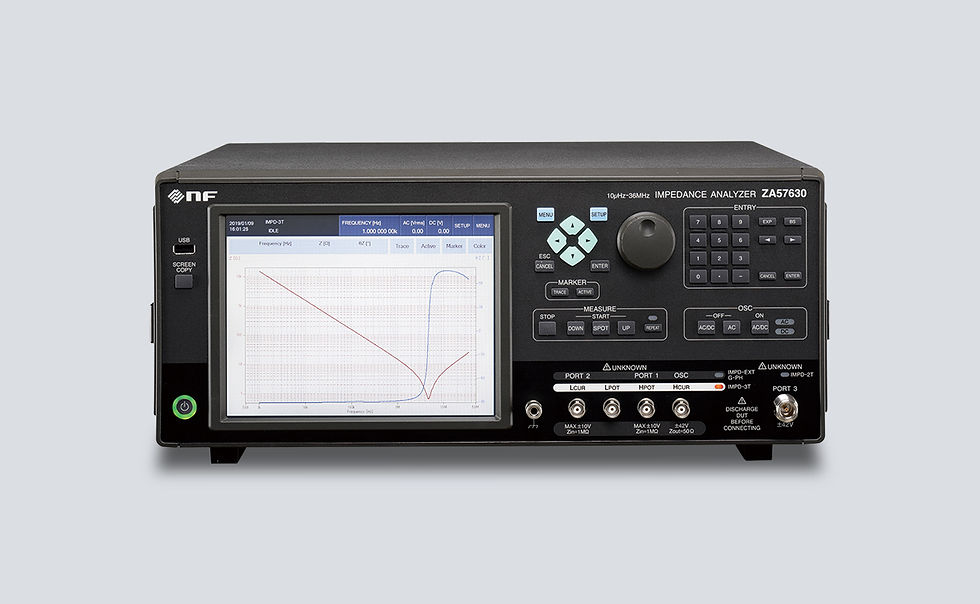

NF Corp ZA57630 Impedance Analyzer 10 µHz to 36 MHz 100 GΩ
The ZA57630 Impedance Analyzer from NF is the industry's fastest at 0.5 ms/point with 4 measurement modes enabling it to handle a broad range of DUTs.

For a broad range of impedance measurement requirements, from electronic parts and semi-conductor devices to material and substance characteristics assessments. The ZA57630 Impedance Analyzer from NF is the industry’s fastest at 0.5 ms/point with 4 measurement modes enabling it to handle a broad range of DUTs.

Four measurement modes
  1. IMPD-3T
Default measurement mode
This mode provides high-accuracy measurements across a broad range of frequencies. Test leads and test fixtures can be used to suit test materials with a variety of different shapes.
2. IMPD-2T
High-frequency measurement mode
This mode allows more stable measurements at high-frequency of 10 MHz or more. 2-terminal measurements using N connectors allows stable measurements even when using long cables.
3. IMPD-EXT
Expanded measurement mode
Allows external amplifiers, shunt resistors or other devices to be connected. Allows measurements outside of the unit's specifications, like applying high voltages or detecting small voltages/currents.
4. G-PH
Gain/phase measurement mode
This mode provides measurements of transmission characteristics of devices like filters and amplifiers. Accurately measures the frequency response (gain, phase) when applying a sweep signal to the measured circuit.


NF Corp ZA57630 Impedance Analyzer 10 µHz to 36 MHz 100 GΩ

Quantity
    • Basic accuracy: ±0.08%
    • Measurement frequency: 10 µHz to 36 MHz
    • Measurement Impedance range: 10 µΩ to 100 GΩ (Mode: IMPD-EXT)
    • Measurement signal amplitude: 0.01 mVrms to 3 Vrms0.1 µArms to 60 mArms
    • DC bias: −5 V to +5 V/−40 V to +40 V (more than 1 kHz)100 mA to +100 mA
    • Measurement time: 0.5 ms/point
    • Measurement parameter Z, R, X, Y, G, B, Ls, Lp, Cs, Cp, Rs, Rp, θz, θy, D, Dε, Dµ, Q, V, I, εs, εs’, εs”, µs, µs’, µs”, FREQUENCY

    High Speed Measurement: The fastest in the industry at 0.5 ms/point. Reduce takt time. In addition, by increasing the measurement time to be set, the measurement results are averaged and the influence of noise is reduced. The optimum measurement time can be selected as required.

  • Please allow 2 - 3 weeks lead time for this new product to arrive.

    Comes with a 1 year warranty from the manufacturer.
