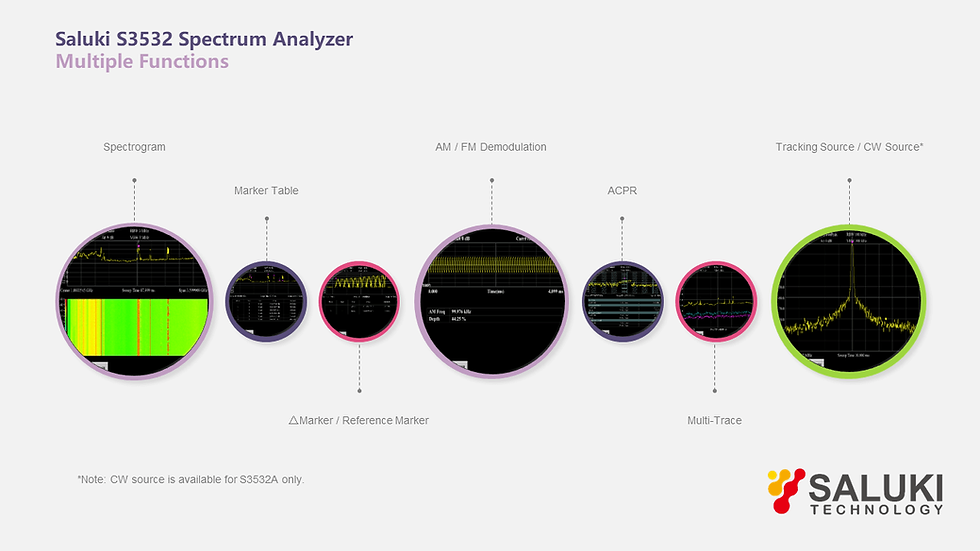

Saluki S3532 is a bench top spectrum analyzer designed for R&D, manufacture, maintenance and education. S3532 has excellent performance and multi-functions. Frequency reaches 7.5GHz and DANL is <-150dBm (<-161dbm typ.). S3532 integrated most used functions are standard, save the troubles for customer lost themselves in the complex configuration guide. Pre-amplifier, AM/FM demodulation, Interference analysis, limit line, OBW, ACPR etc, all these functions are provided as a standard part. Optional tracking source and CW source extend the ability of S3532. Engineers can easily use it as a network analyzer.
Key Features
- Frequency range: 9kHz - 7.5GHz
- DANL <-150dBm, <-161dBm typ
- Max 3GHz tracking source and CW source
- Audio analysis
- Standard preamplifier/waterfall function/Limit line function
- SCPI supported
Saluki S3532 Spectrum Analyzer 9kHz - 3.6/7.5GHz
For S3532A and S3532B
Frequency range
9 kHz - 3.6 GHz
9kHz - 7.5GHz
Resolution
1 Hz
1Hz
RBW Range
1 Hz - 500 kHz, 1 MHz, 3 MHz
1Hz - 500kHz, 1MHz, 3MHz
VBW Range
10 Hz - 3 MHz
10Hz - 3MHz
DANL (CF = 1GHz, RBW=1Hz)
<-135 dBm Preamp off
<-155 dBm Preamp on<-133dBm Preamp off
<-148dBm Preamp on
