The HyperLOG® series 40xx broadband antennas are identical to those of the 70xx series, but offer a wider frequency range down to 400 MHz, in particular for covering the important 70 cm amateur radio frequency range (430 MHz and up).
As a result, the physical size of these completely GOLD-COATED-antennas had to be increased significantly. The result is an antenna-series of unique high-tech antennas with a formerly totally unknown combination of functionality, performance and design in this price category.
Highlights:
• Only a single broadband antenna for the complete frequency range from 400 MHz up to 6 GHz
• Optimal for usage with spectrum analysers for EMC measurement
• Incl. high-tech radom with modern, appealing design
• Freely alignable polarisation
• Calibration data can be saved to an IC on the antenna and also be read back
• Excellent forward/backward ratio
• Excellent symmetry of radiation patterns
• Integrated 1/4" tripod socket
• Suitable for mobile use
• Suitable for outdoor installation
• Directional
• Robust design
• Splash water proof
• Small weight and dimensions
• Made in Germany
Aaronia HyperLOG 4060 Directional Logarithmic Antenna 400MHz-6GHz

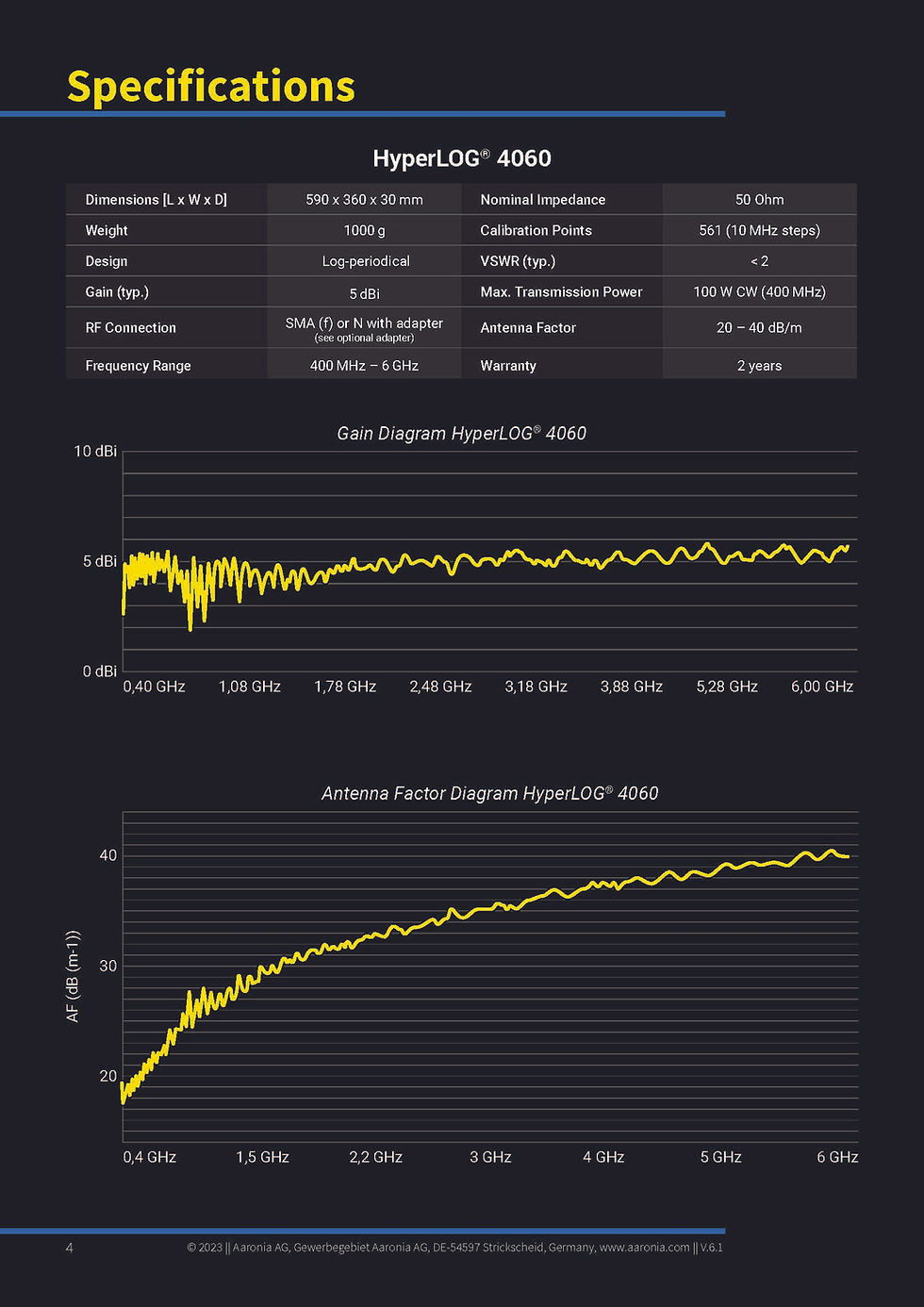

Key Facts
Frequency Range 400 MHz - 6 GHz Design LPDA Active No Gain (max.) 5 dBi Connector SMA (f) Mount 1/4" Thread Dimensions 590x360x30 mm Weight 1000 g Ordering Information
Please allow 2-3 weeks for this product to arrive.
This product comes with a 2 year manufacturer warranty.
Included Equipment
HyperLOG 4060 antenna
Typical calibration data with up to 533 calibration points (10MHz steps!)
Aluminum design carrycase
Detachable handle with "miniature tripod" mode
Aaronia SMA toolset with over-torque protection
