The PB-5 sets a new standard for precision pulse generators. It offers full digital controllability with a built-in ramp generator for linearity testing. It provides tail and flat top pulses with outstanding integral linearity and extremely low amplitude change with temperature. The PB-5 is capable of testing the stability, linearity, and resolution of the most demanding spectroscopy circuits and instrumentation. It is the successor to the industry standard, PB-4 pulse generator.

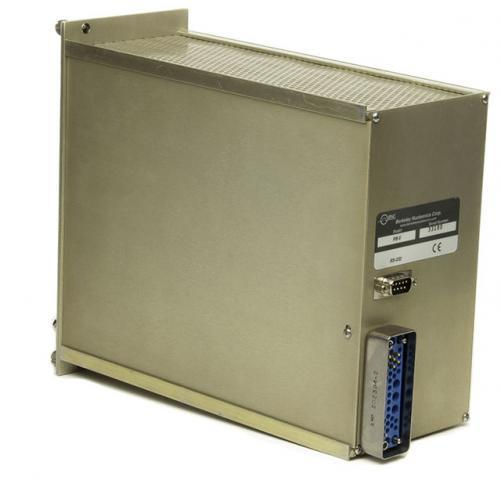

Berkeley BNC Model PB-5 Precision NIM Pulse Generator Temp Stability ±5ppm

Quantity

Ordering Information
Please allow 3 - 6 weeks for this product to arrive.

This product comes with a 2 year (24 Month) warranty.

Technical Specifications

SPECIFICATIONS

Repetition Rate	2 Hz to 500 kHz
Width	100 ns to 1 ms
Delay	250 ns to 10 ms
Pulse Type	Flat-Top or Tail Pulse
Pulse Width	100 ns to 1 ms *fixed pulse width in Tail-Pulse mode
Rise Time (10 % - 90 %)	50 ns to 10 µs ( 8 steps ) *fixed 50ns in Tail-Pulse mode
Decay Time (100 % - 37 %)	0.5 us to 1.0 ms ( 11 steps )
Amplitude	0 to 10 V into Hi-Z [0 to 5 V into 50 Ω] Scalable in Energy units (keV)
Resolution	155 µV
Jitter	± 10 ppm
Attenuation	1, 2, 5, 10, 20, 50, 100, 200, 500, 1000
Integral Non-Linearity	± 15 ppm [0.0015%]
Temperature Stability	± 5 ppm/ºC ( 20 ºC to 45 ºC )
Polarity	Positive or Negative
External Trigger/Gate	Frequency Range: 0 to 500 kHz Threshold Range: +100 mV to +3.5 V
Modes	Single Cycle Pulse via a front panel pushbutton; Internal Rep Rate External Trigger External Gate Ramp (Internal Adjustable)
Ramp Mode	Programmable Start and Stop points Adjustable Ramp period from 30 sec to 900 seconds Programmable number of ramp cycles Selectable units ( keV or Volts ) Clamped baseline option to force the baseline to zero prior to the next pulse.
Memory	9 User Settings plus Power-On default (recalls last parameters when powered on)
Remote	RS232 (LabView Driver available)
Power Requirement	+24V / 170 mA -24V / 150 mA +12V / 450 mA -12V / 5 mA See BNC Model AP-3* for portable applications
Dimension	Triple-Width AEC NIM module 4.05" wide x 8.70" high in accordance with TID-20893 ( Rev 3. ).
Weight	2 lbs. 13 oz. net, 6 lbs shipping.

Features and Applications
Features
- Excellent Linearity, Stability, and Resolution
- Built-in Ramp Generator
- Digital and Programmable
- Fast Automated Testing
Applications
- Multi-Channel Analyzer (MCA) Testing
- Nuclear Circuit Testing
- Pulse Height Analyzer Calibration
- Pile-Up and Saturation Tests
- Rise-time and Bandwith Characterization
- NIM Module System Integration
- Radiation Detector Testing
- Temperature Stability ±5ppm (world's best)
- Pulse Types: Flat Top, Tail Pulse
- Remote: RS-232, Labview Support
- Rise Time: Adjustable
- Fall Time (Decay): Adjustable
- Amplitude Resolution: 155uV steps
