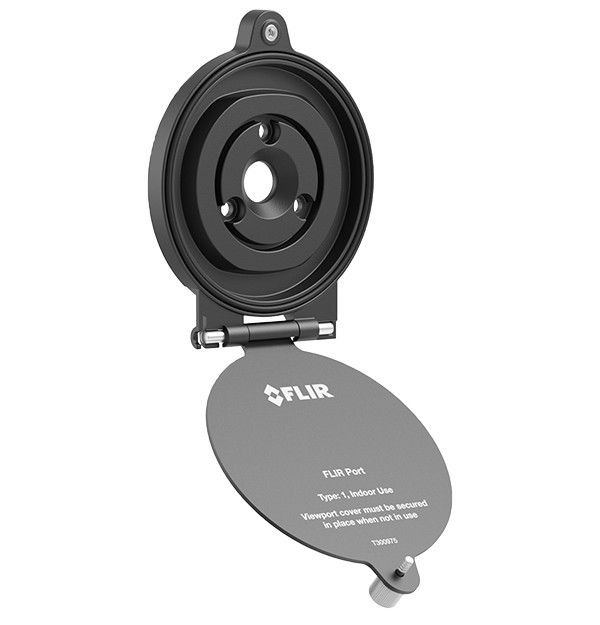

FLIR T300975 IRP-1 Indoor Inspection Port for 80° Lens Outer view
The Flir IRP-1 port helps to improve worker safety and electrical inspection efficiency—all while reducing the installation costs associated with using thermal cameras to inspect indoor electrical cabinets. Designed to support quick and precise connection with a Flir 80° lens (T300805), this lens-free port allows technicians to survey switchgear and other enclosed equipment carrying the risk of arc flash without the need to open the cabinet, greatly reducing the risk of arc flash injury. Technicians can execute predictive maintenance inspections faster, reducing the time needed to take on and off heavy arc-flash PPE, remove and replace electrical panels, and adjusting thermal camera settings to account for IR window transmission.

The IRP-1 lens-free inspection port is a low-cost alternative to infrared windows, providing a wide field of view for electrical panel inspections without transmission correction. It helps improve worker safety and electrical inspection efficiency, all while reducing the installation costs associated with using thermal cameras to inspect indoor electrical cabinets. Designed to support quick and precise connection with a FLIR 80° lens (T300805).

FLIR T300975 IRP-1 Indoor Inspection Port for 80° Lens

Quantity

  • Ordering Information

    This product is only available to customers in the USA.

    Please allow 2 - 3 weeks for this product to arrive.

    This item comes with a 1 year warranty.



  • Specifications

    Imaging and Optical
    Viewing Aperture Area 0.1885"2 (123 mm2)
    Viewing Aperture Diameter 0.49" (12.5 mm)
    Visible Light Spectrum No certification
    General Specifications
    Body Material Body: Plastic (PC/PBT)
    Cover: Anodized aluminum
    Hardware: Stainless steel
    Operating Temperature Range 212°F (100°C)
    Nema Environment Type Standard 250
    Certifications CE, UL (UL50V), IP67
    Required Hole Diameter (nominal) 0.827" (21 mm)
    Dimensions 0.75 × 3.3 × 4.1" (19 × 84 × 104 mm)

  • Features

    The IRP-1 helps improve worker safety by allowing technicians to survey switchgear and other enclosed equipment that carries the risk of arc flash without the need to open the cabinet, thereby greatly reducing the risk of arc flash injury. As a result, they can execute predictive maintenance inspections more efficiently, reducing the time required to put on and take off heavy arc-flash PPE, remove and replace electrical panels, and adjust thermal camera settings to account for IR window transmission.

    These lens-free ports require no input of transmission factor or window temperature, which simplifies the inspection process. Together with the 80° lens, this inspection port provides by far the largest field of view, which gets as much equipment as possible into the same image, improving context and understanding of issues, which leads to better maintenance decisions being made.

    • Inspect energized electrical equipment quickly without opening the panel door and compromising safety
    • No crystal or grid means no transmission loss and provides great imaging without the need to stop and input transmission and IR window temperature correction factors
    • Helps companies comply with electrical codes (example: NFPA 70B) requiring direct line of sight inspection of all electrical equipment without added expense
