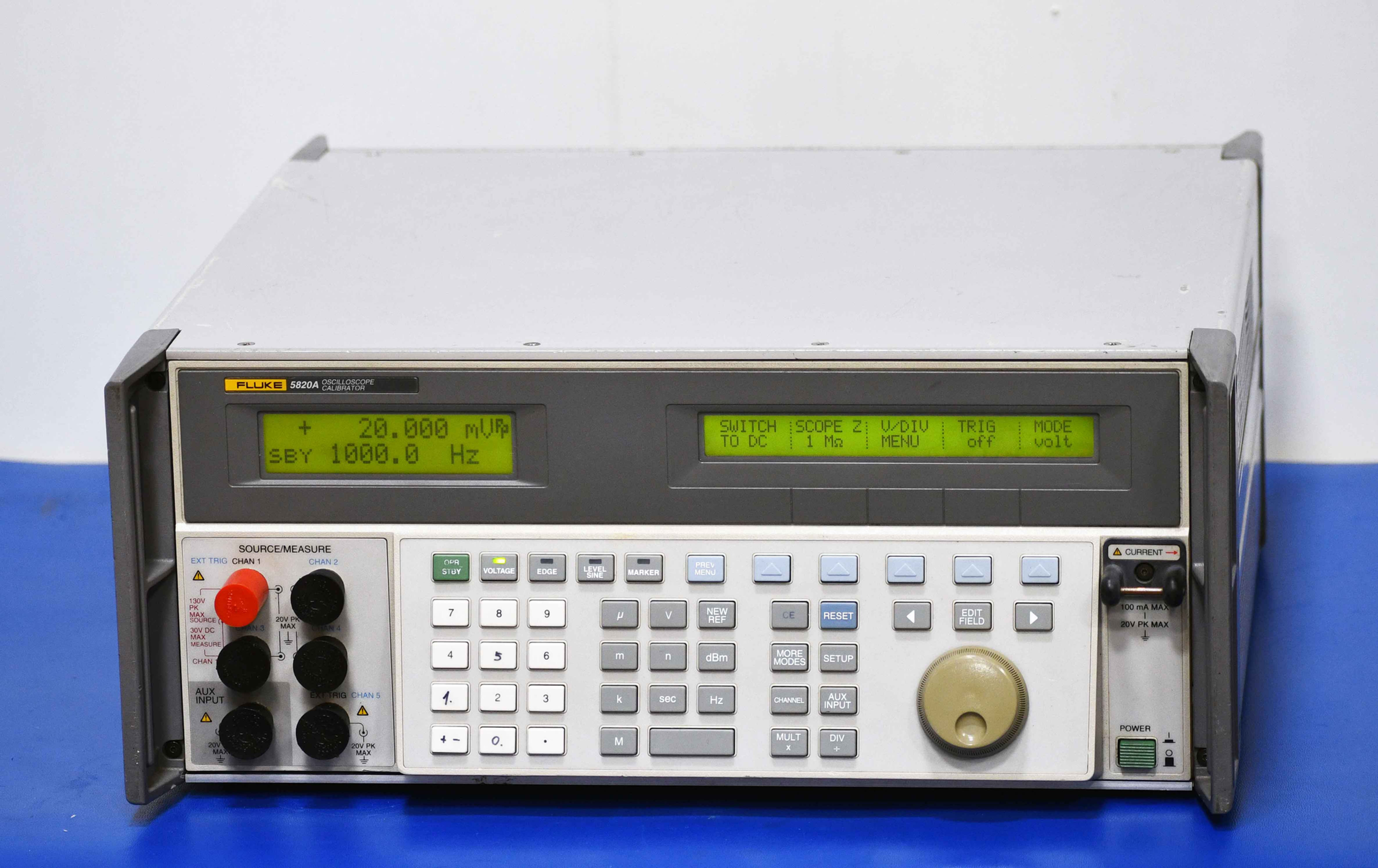

This item is a used condition Fluke 5820A Oscilloscope Calibrator. *There are some light scratches on the top of the case, please see all pictures.* All functions have been performance verified but not formally calibrated. Comes with standard power cable. All pictures are of the actual unit, no accessories or scope included.
This item comes with a 6 Month (180 day) warranty. All functions are guaranteed to work or money will be refunded.
For customers in the USA, all purchases arrive cleared. ALL brokerage or customs fees are prepaid by us. Your item arrives FOB destination.
International Buyers – Please Note: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying. For more information of clarification, please ask.
Will ship worldwide. We make our best efforts to get you the best shipping prices. Contact us for other international rates and we will be pleased to give you a quote. We accept VISA / Mastercard. Paypal is also accepted. Sales to within Canada are subject to 5% GST. Ontario sales subject to 13% HST.
Contact us for Calibration options, including ISO 17025 Accredited Calibration for your Test Equipment! Visit stratatek.com/calibration for more details.
Fluke 5820A Oscilloscope Calibrator 600 MHz Scope Calibrator
Product Information
The standard 5820A is designed to calibrate the bulk of your oscilloscope calibration workload everything up to 600 MHz. Its bandwidth extension option lets you extend that capability still further — to oscilloscopes with bandwidths up to 2.1 GHz.
For automated applications, the five-channel option allows you to calibrate up to four oscilloscope channels, with trigger, simultaneously without changing cables. This allows you to perform fast, hands-free automated calibrations with documented procedures and results while freeing the operator to complete other work — a dramatic productivity improvement. Plus, the external trigger allows you to work with tough-to-capture signals like fast edges simultaneously.
Specifications
DC Voltage Range ± 10V
DC Accuracy
0 to ± 5.99V
0.05% + 1 mV
DC Accuracy
± 6 to ± 10V0.25% + 10 mV
Resistance Measurement Range 40Ω to 60Ω and 500 kΩ to 1.5 MΩ
Capacitance
Measurement Range5 pF to 50 pF ± (5% of input + 0.5 pF)2
General Specifications Warm up Time 2x the time since last warmed up, to a maximum of 30 minutes Interfaces IEEE-488 (GPIB), RS-232 Temperature Performance Operating: 0°C to 50°C
Calibration: 15°C to 35°C
Storage: -20°C to 70°CRelative Humidity Operating: < 80% to 30°C, < 70% to 40°C, < 40% to 50°C
Storage: < 95%, non-condensing. A power-on stabilization period of four days may be required after extended storage at high temperature and humidity.Safety Designed to comply with IEC 1010-1 (1992-1), ANSI/ISA-S82.01-1994; CAN/CSA-C22.2 No. 1010, 1-92 Analog low isolation 20 volts EMC Complies with EN 61326-1 Line Power Line voltage (selectable): 100V, 120V, 220V, 240V Size Height 17.8 cm (7 in), standard rack increment, plus 1.5 cm (0.6 in) for feet; width 43.2 cm (17 in), standard rack width; depth 47.3 cm (18.6 in) overall Weight 20 kg (44 lbs.)
