SIKA EC 25 Process Calibrator For Resistance Thermometers, Thermocouples
ForvResistance Thermometers, Thermocouples and Electrical Signals

Highlights
  • Generation of RDT-, TC- mA- and V signals
  • Frequency and pulse simulation (EC25)
  • For mobile on-site calibration

SIKA EC 25 Process Calibrator For Resistance Thermometers, Thermocouples

  • Technical Data
    Resistance Thermometers (RTD)
    Generation and measurement of RTD signals: Pt100, Pt200, Pt500, Pt1000, Cu10, Cu50
    Ω-generator function: 0-4000Ω
    Ω-measurement function: 0-5500Ω
    Accuracy (of reading + const.): ±0.05 %
    Selectable temperature unit: °C/ F
    Measurement of multi-wire connections: 2/3/4
    Thermocouples (TC)
    Generation and measurement of TC signals: J,K,T,R,S,B,N,E,U,L
    mV-generator function: -100-1100 mV
    mV-measurement function: -50-550 mV
    Accuracy (of reading + const.): ±0.02 %
    Selectable temperature unit: °C/°F
    Internal comparison point ±0.5 °C

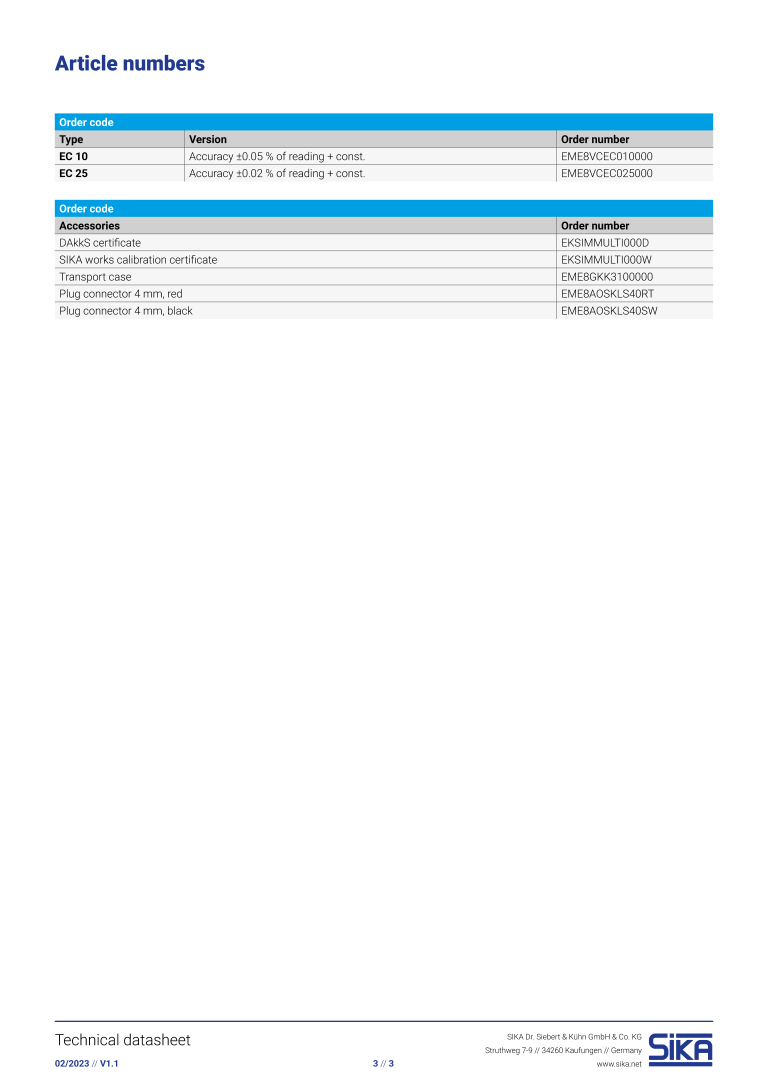

    • DAkkS certificate
    • SIKA works calibration certificate
    • Transport case
    • Plug connector 4 mm, red
    • Plug connector 4 mm, black
