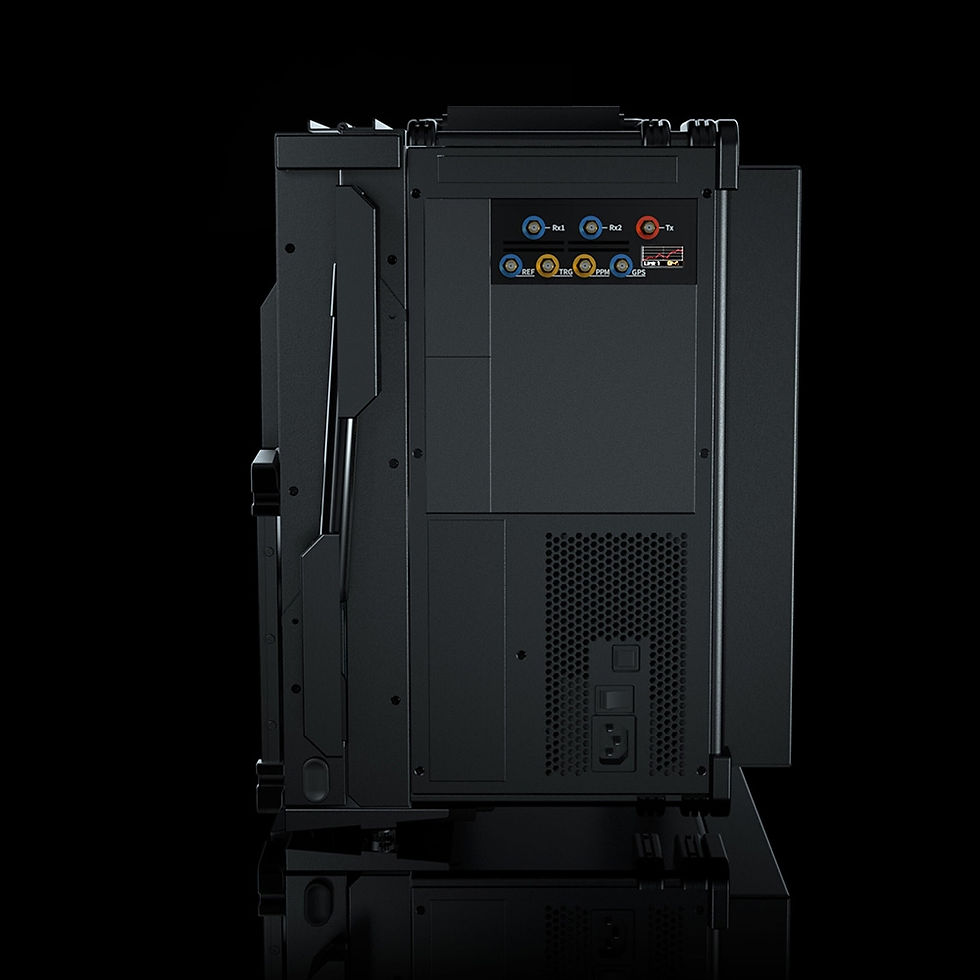

SPECTRAN® V6 CC 2000CA-6
Mobile Dual Screen Real-Time Spectrum Analyzer

One of the fastest real-time spectrum analysis solutions in the world, the SPECTRAN® V6 Command Center 2000CA-6 delivers the RF performance you need, right where you need it.

Even the basic version shines with expandable 160 MHz RTBW or more than 730 GHz/s sweep. Thus, this customizable high-end spectrum analyzer already offers excellent performance for all basic measurement scenarios in a mobile dual-screen system, which are only supported by the SPECTRAN® CC 4000CA-6 and the SPECTRAN® CC 8000CA-6.

The SPECTRAN® V6 Command Center 2000CA-6 samples the configured frequency range of up to 6 GHz (optionally 8 GHz) at over five million samples per second. The internal spectrum analyzer provides 160 MHz of real-time bandwidth out of the box, which can be optionally expanded to meet your needs. In addition, the system can be extended, for example, via built-in RF-over-Fiber back converter.

The two 4K widescreen monitors (combined resolution of 3840 x 4320 pixels) are predestined for displaying the complete frequency range or simultaneous monitoring of multiple frequency bands in real time. This enables detailed analysis of even the very shortest signals, which are reliably captured thanks to a POI of less than 15 ns (I/Q-based) or 97 ns (FFT-based).

The optional 4 TB data memory offers a wide range of storage options (I/Q raw data or SPECTRA data). An innovative Smart Buffering solution allows overwriting of the oldest data in each case, which enables virtually "unlimited" recording time.

The modular and extremely efficient real-time spectrum monitoring software "RTSA-Suite PRO", which is already equipped with a record and playback function and includes all necessary basic functions, is supplied free of charge.

Last but not least, the SPECTRAN® V6 Command Center is manufactured in Germany, which guarantees quality at the highest level
