Formerly called V6 RSA2000X
The SPECTRAN V6 PLUS 2000XA-6, as the flagship of Aaronia's latest generation of high performance real-time spectrum analyzers, is equipped with a real-time bandwidth of 160MHz (optional 245MHz) as well as a vector signal generator, which is unprecedented in the USB spectrum analyzer instrument class!
The compact design of the aluminum housing of just 210 x 115 x 30 mm (850 g) requires little space in the laboratory and is also ideal for mobile applications (laptop) due to the low power requirements. In real-time mode, the IQ-based POI is only 15ns, which can optionally be reduced to a remarkable 10ns.
A complete scan from 10 MHz to 6 GHz (optionally 8GHz) is achieved by the PLUS 2000XA-6 in about 5ms, which corresponds to a sweep speed of 700 GHz/s (1100 GHz/s with upgrade). Measurement data is transmitted as raw I/Q data or FFT data via two USB3.x interfaces connected in parallel.
The included modular software "RTSA-Suite PRO" includes already in the basic version more than 20 measurement units and 5 detectors, including AVG and QPEAK. In addition, it has a variety of unique display options, which can be expanded at any time via corresponding license keys. Simple signals can also be generated using free included software blocks. Optional extensions allow modulation of complex signals, for example QAM4096, or signal generation without additional USB connection.
In addition, various mounting or installation solutions can be implemented according to customer requirements.

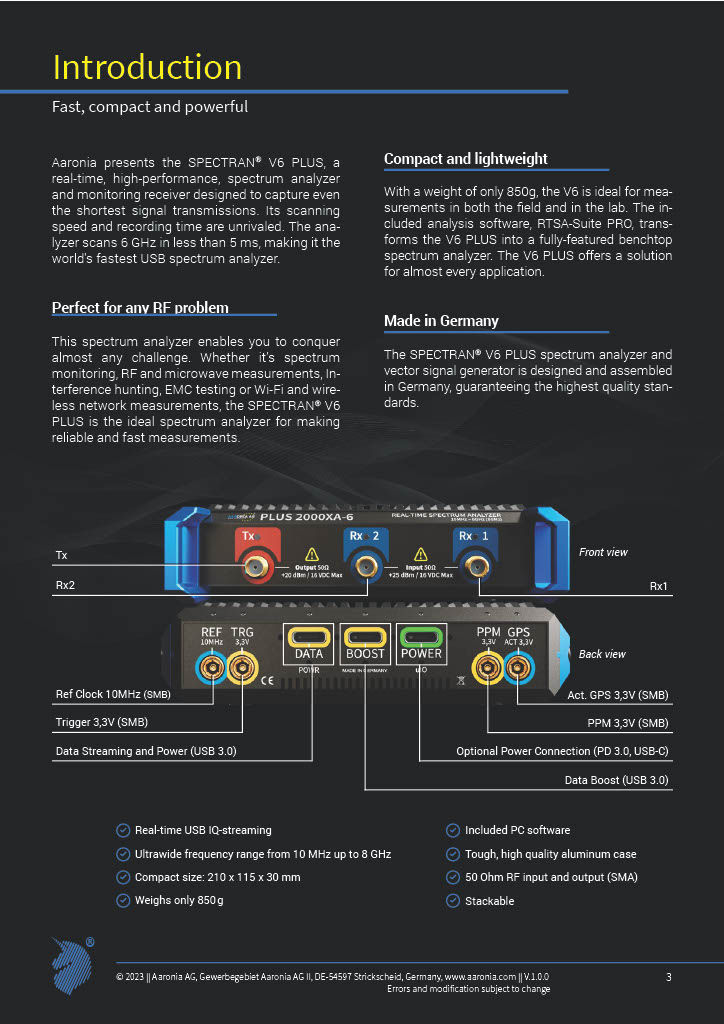

PLUS 2000XA-6 Connectors: 2 x Rx (50 Ohm SMA) | 1 x Rx (50 Ohm SMA) | 1 x USB-C Data | 1 x USB-C Boost | 1 x USB-C Power
Aaronia SPECTRAN V6 PLUS 2000XA-6 6GHz USB Spectrum Analyzer 160MHz RTB
- Radio Frequency range of 10 MHz to 6 | 8 GHz
- World’s first, dual USB true I/Q streaming spectrum analyzer – up to 784 MBytes/s
- Scans 6 GHz in less than 5 ms (1 THz/s)
- Unlimited, continuous, true I/Q streaming over dual USB 3.0
- Instanta neous bandwidth (complex I/Q) of up to 245MHz
- I/Q vector signal generator bandwidth of up to 245 MHz
- FFT-based POI up to 97 ns
- I/Q-based POI up to 10 ns
- Extraordinary dynamic range with a 16-Bit ADC at 2GSPS
- Sample rate of 500 MSPS (16 Bit Dual 256 MSPS I/Q-Data)
- FPGA: 930 GMAC/s
- FFT rate: 960 Million FFT-points/s (120 Million FFTs/s)
- Full MATLAB support
- Fully automatic pulse classification (decodes Wifi, BT, GSM, DECT, QPSK, QAM etc.)
- Stackable accessories
- Compact and lightweight Includes “RTSA-Suite PRO” spectrum analysis software with regular updates
- Made in Germany
Please allow 2-3 weeks for this product to arrive.
This product comes with a 2 year standard warranty.
