Berkeley Nucleonics' Model 805-SG microwave signal source provides a powerful set of features in a compact module. It delivers instrument-grade performance, increased functionality, and efficient power consumption at a reduced size and affordable cost. The sleek design combines low phase noise with fast switching capability, covering a wide frequency range from 8 kHz up to 20 GHz. The low spurious and harmonic content of the signal makes it ideally suitable for many demanding applications. Optimal Substitute for National Instruments (NI) Models FSW-0020 and FSW-0010.
Among the Model 805-SG's notable features is its high stability OCXO, which provides accurate, power-calibrated and phase-lockable output signals. The frequency resolution is 1 mHz and the power resolution is 0.01 dB power. BNC offers the option for the module to support anolog modulations. The unit is remotely controlled with USB, LAN or SPI control.
The 805-SG is a popular choice among RF and microwave engineers and scientists. It integrates excellent signal purity, accurate setting capabilities, and quick switching capabilities. As the industry strives for quality, the 805-SG leads the way, ushering in a new era of microwave signal sources that enable innovation.
Due to the form-factor, the unit can also be used as a drop-in replacement of the obsolete "QuickSyn Synthesizers" from NI.
Options
| 8K | Frequency range extension to 8 kHz |
| FS | Ultra-fast switching speed |
| PULSE | Internal / External Pulse Modulation |
Berkeley BNC 805-SG 20 GHz Microwave Signal Source
Ordering Information
Please allow x - x weeks for this product to arrive.
This product comes with a x year(month) warranty.

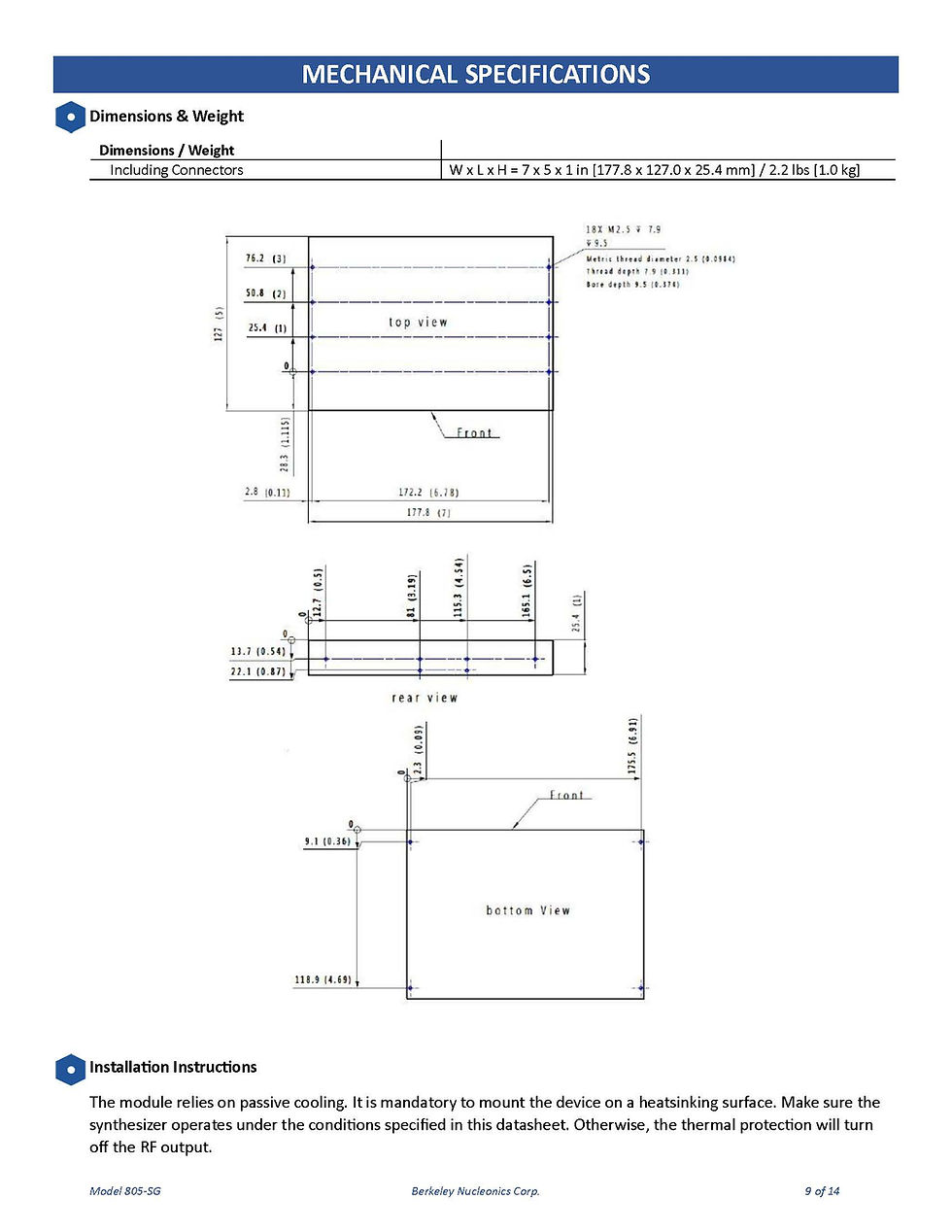

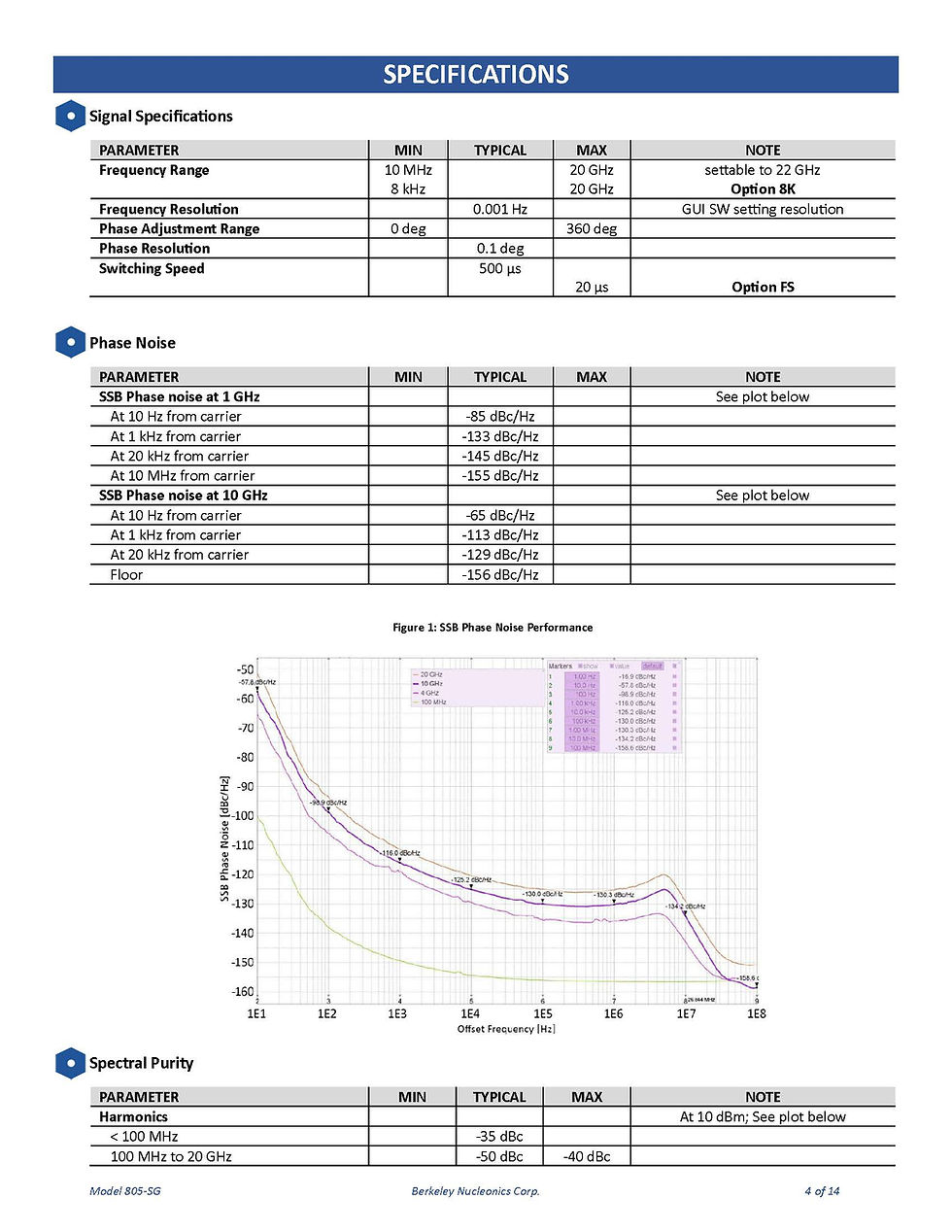

Technical Specifications
Frequency Range 100 kHz (8 kHz with option 8K) to 20 GHz
Frequency Resolution 0.001 Hz Power Range -20 to +16 dBm Power Resolution 0.01 dB Switching Speed 500 µs (20 µs with option FS) Phase Noise at 1 GHz: at 10 Hz offset -87 dBc/Hz Phase Noise at 1 GHz: at 1 kHz offset -133 dBc/Hz Remote Control Ethernet, SPI, USB 2.0 Modulation Pulse Sweeps Frequency, Power, List Dimensions (W x L x H), Weight 7.0 x 5.0 x 1.0 in, 2.2 lbs Features and Applications
Features
- Microsecond switching speed
- Low-phase noise and low spurs level
- Portable battery operation
- Low level error accuracy
- Compact RF signal source
Applications
- QuickSyn FSW-0010/0020 replacement
- ATE
- Characterizing antennas, semiconductor devices and other components
- Radar signal generation & Electronic warfare
- Local oscillator for frequency converter application
