The Model 845-M-X is a one or two-channel wideband low phase-noise synthesizer operating up to 20 GHz. The module has a sub-Hertz (1 mHz) frequency resolution and uses a high-stability internal reference. The internal reference can be phase-locked to a programmable external reference. The module has a standard USB and LAN interfaces and an optional GPIB interface and can be controlled using the SCPI 1999 command set.

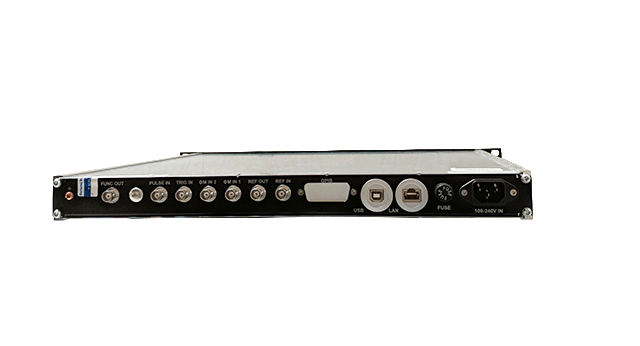

Berkeley BNC Model 845-M-X 1 Or 2 Channel RF Synthesizer 10 MHz - 20 GHz

Quantity

Ordering Information
Please allow x - x weeks for this product to arrive.

This product comes with a x year(month) warranty.

Technical Specifications

Number of Channels	1, 2
Frequency	Range: 0.01 to 20 GHz Resolution: 0.001 Hz Accuracy: 0.1 ppm
Output Power	+23 dBm
Switching Speed	150 µs (30 µs with option FS)
Phase Noise At 1 GHz	at 1 kHz: -118 dBc/Hz at 20 kHz-128 dBc/Hz at 10 MHz: -150 dBc/Hz
Remote Control (SCPI 1999)	Ethernet, USB (optional GPIB)
Sweeps	List, Frequency
Dimensions (W x L x H) Weight	16.93 x 18.11 x 1.69 in [430 x 460 x 43 mm] 17 lbs (8 kg)

Features and Applications
Features
- Low Phase Noise
- Fast Switching down to 20 µs
- FM, Chirps, Pulse
- Internal OCXO, External variable reference
Applications
- Automated Testing Environment (ATE)
- Local Oscillator (LO) for frequency converters
- Telecom / SatCom
Options & Accessories
OPTIONS

FS Ultra-Fast Switching Speed

GPIB GPIB interface
