Models available are:
745T-4C
745T-8C
The Model 745T Digital Delay Generator (DDG) offers the world's leading performance in a benchtop timing instrument. Twenty-five years ago, our Model 7095 Digital Delay Generator dramatically advanced research with jitter below 25 ps. Now, with all the features of a modern DDG, the Model 745T gives users incredible performance at a fraction of the cost. The Model 745T offers 4 precision delay channels from the front panel (output rise time less than 2 ns) with an additional 4-channel option on the rear panel (output rise time less than 5 ns). The Model 745T synchronizes to an external clock at 10 MHz or 80 MHz or custom frequency between 10 MHz and 80 MHz making the unit ideal for a broad range of applications that require short time domain delays.

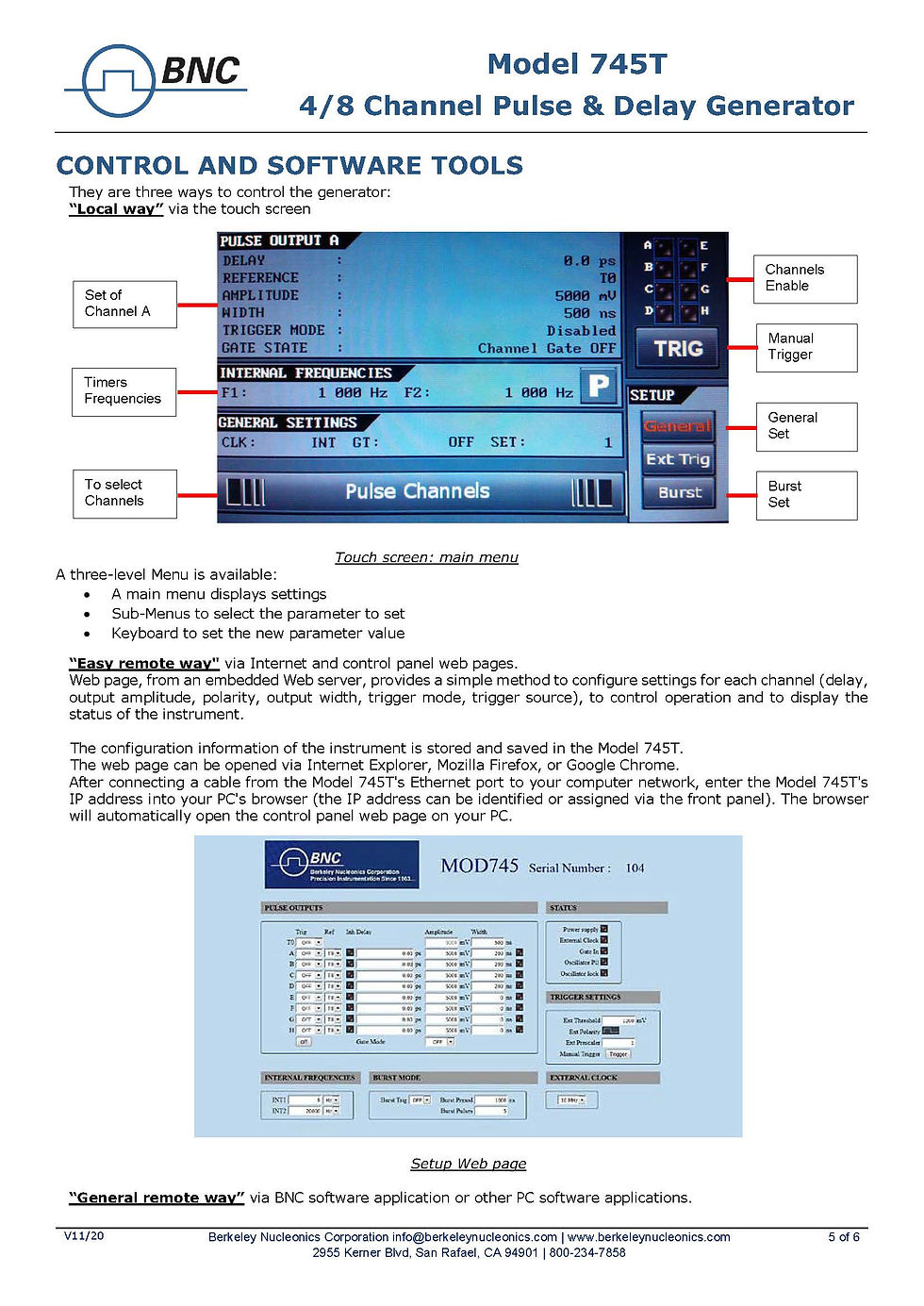

The Clock In Connector and Clock Out Connector, are located on the rear panel of the instrument. A convenient Ethernet interface on the rear panel, allows remote control of the instrument. Berkeley Nucleonics' DDG-MUC software controls up to eight instruments (64 Channels). Alternatively, you may use the LabVIEW driver or the embedded web interface for ease of set up and control. The control software and LabVIEW drivers are included with the Model 745T at no additional cost.
Because many industries are now moving away from locally installed software packages, we have embedded a control interface in the Model 745T instrument. This also allows all parameters to be controlled by any PC, Mac or Linux system with a web browser. All you have to do is type in the unit's IP address into the browser after connecting a cable from the Ethernet port to your computer or network. A USB port is also available if LAN port cannot be used. Ethernet ports allow the user to use the web interface or sends and receives SCPI commands while the USB is SCPI . This is ideal for laboratories where you may need to move the delay generator to different locations.
Berkeley BNC Model 745T Digital Delay Generator 1 ps Delay Resolution
Please allow 3 - 6 weeks for this product to arrive.
This product comes with a 2 year (24 Month) warranty.
