The 588-OEM series board products retain all functionality of the standard Pulse Generator in an easy-to-integrate package. These boards provide a cost-effective method to create and synchronize multiple sequences, delayed triggering, or any precisely timed series of events. We offer optional computer interfaces for ease of programming and full integration support.
- 1 ns or 250 ps timing resolution
- Fully independent channel outputs
- Computer Interfaces
- Full Integration and Product Support Offered
There are two options for the OEM card level Digital Delay/Pulse Generator. There is a 1 ns option and a 250 ps option. The Model 588-OEM-1n offers several programming operations to meet a variety of interface requirements. The 1 ns delay resolution, along with all the other parameters, may be controlled using Serial, USB, or GPIB interface. The connectors are mounted on the side of the PC Board (card-edge connectors) and allow connections internally to your system or through panel mount configurations.
The Model 588-OEM-250ps offers control of 250 ps delay and width resolution, along with all other parameters, from a Serial, USB, or Ethernet connection. The connectors are mounted to the side of the PC Board (card-edge connectors) and allow connections internally to your system or through panel mount configurations.
Berkeley BNC Model 588-OEM OEM Series Board Level Pulse Generator
Please allow 3 - 6 weeks for this product to arrive.
This product comes with a 2 year (24 Month) warranty.

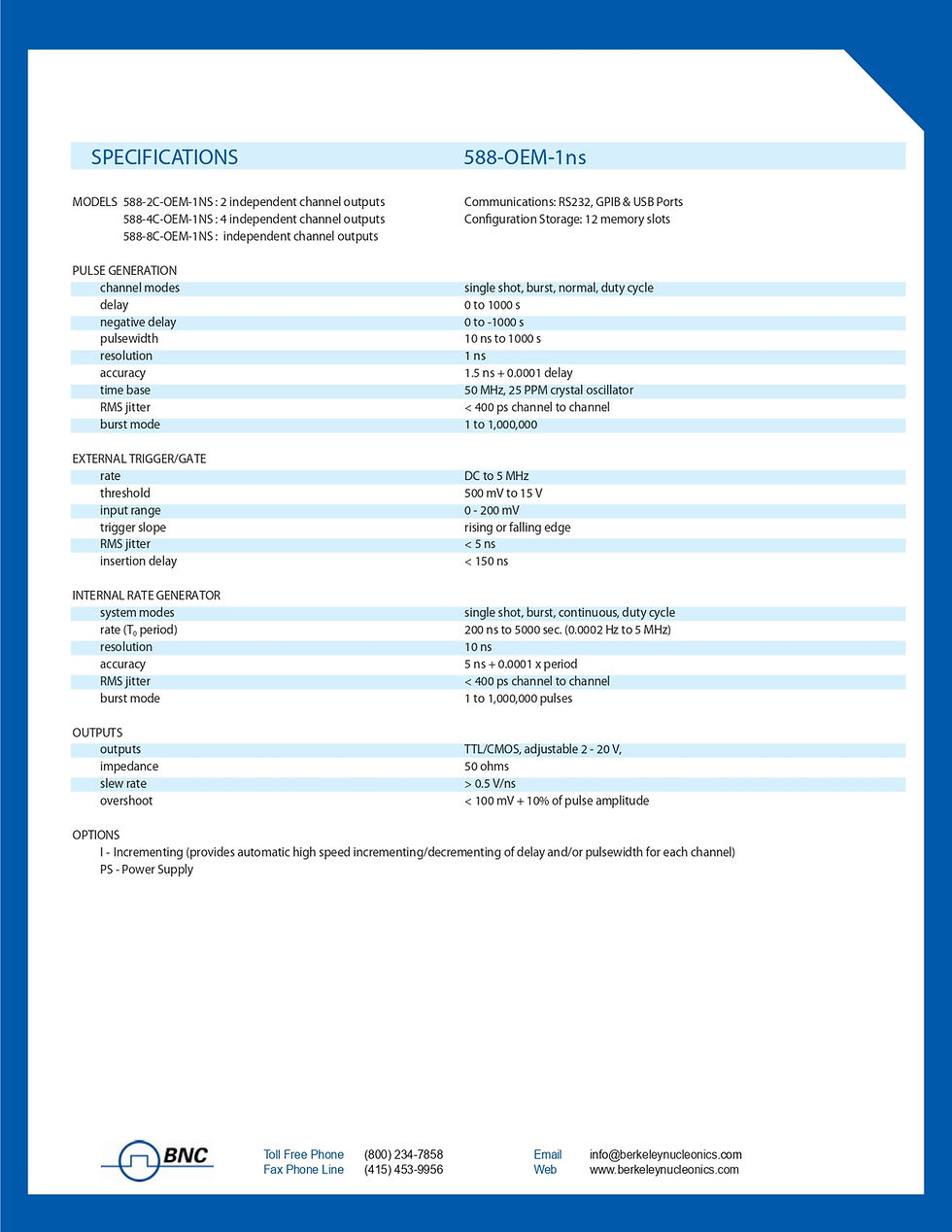

Channel Modes Single Shot, Burst, Normal, Duty Cycle Delay 0 to 1000 s Negative delay 0 to -1000 s Pulsewidth 10 ns to 1000 s Resolution 1 ns Accuracy 1.5 ns + 0.0001 delay Timebase 50 MHz, 25 PPM crystal oscillator RMS Jitter < 400 ps channel to channel Burst mode 1 to 1,000,000 External Trigger/Gate
Rate DC to 5 MHz Threshold 500 mV to 15 V Input range 0 – 200 mV Trigger slope Rising or falling edge RMS jitter < 5 ns Insertion delay < 150 ns Internal Trigger Generator
System modes Single Shot, Burst, Continuous, Duty Cycle Rate (T0 period) 200 ns to 5000 sec. (0.0002 Hz to 5 MHz) Resolution 10 ns Accuracy 5 ns + 0.0001 x period RMS jitter < 400 ps channel to channel Burst mode 1 to 1,000,000 pulses Outputs
Outputs TTL/ CMOS, adjustable 2 – 20 V Impedance 50 ohms Slew rate > 0.5 V/ns Overshoot < 100 mV + 10% of pulse amplitude Programable Timing Generator
System modes Single Shot, Burst, Continuous, Duty Cycle Control modes Internally triggered, externally triggered, and external gate Output multiplexer Any/all channels may be multiplexed to any/all outputs Delayed output 0 to 9,999,999 pulses Timebase Same as internal rate generator Delays
Range 0 to 1000 secs Range 0 – 1000 s Accuracy 1.5 ns + 0.0001 delay Resolution 250 ps RMS jitter < 400 ps Pulse inhibit delay/output inhibit delay 120 ns / 50 ns Internal Rate Generator
Timebase 100 MHz, low jitter PLL Rate 0.0002 Hz to 10.000 MHz Resolution 10 ns Accuracy Same as timebase RMS jitter 50 ps Burst mode 1 to 9,999,999 pulses Oscillator 50 MHz, 25 ppm TTL/Adjustable Channel Output Impedance 50 ohm TTL/CMOS Mode
Output Level 4.0V into kΩ (typ) Rise time 3 ns typical Slew rate > 0.5 V/ ns Jitter 50 ps RMS Adjustable Mode
Output Level 2.0 to 20 VDC into 1 kohm, 1.0 to 10 VDC into 50 ohms Output resolution 10mV Current 200 mA typical, 400 mA max (short pulses) Slew rate > 0.1 V/ns Overshoot < 100 mV + 10% of pulses amplitude Trigger/Gate Dual Input Module (Standard)
Threshold 0.2 to 15 VDC Maximum input voltage 60 V peak Resolution 10 mV Input impedance 1 Mohm + 40 pF or 50 ohm Trigger insertion delay < 180 ns Trigger jitter < 800 ps RMS external clock in/out 10 MHz – 100 MHz Shipping Dimensions 18x12x9″ Shipping Weight 5 lbs
