The Model 765-HV High-Voltage Pulse Generator, available in 1 or 2 channels, delivers fast rise times below 400 ps and pulse amplitudes up to 50 Vpp into 50 Ohms, making it ideal for demanding high-voltage applications. Supporting up to 400 MHz repetition rates and pulse widths as narrow as 1 ns, the 765-HV provides exceptional control over both timing and amplitude domains. Each channel offers fully programmable amplitude, offset, delay, and width with 10 ps resolution and <15 ps jitter.
A 7-inch user friendly touchscreen and intuitive front-panel controls simplify setup and channel navigation, while the rotary encoder enables fine, real-time adjustments. The redesigned analog front end ensures precise edge transitions with minimal overshoot and ringing, even at maximum output. Whether used for semiconductor testing, radar systems, or high-energy physics research, the Model 765-HV combines power, precision, and ease of use. Pushing the limits of high-voltage pulse generation.
Applications
Radar and Sonar Systems
Semiconductor and Laser Testing
Big Physics (Colliders, Photomultipliers, Particle Experiments)
High-Power Microwave and Electromagnetic Systems
X-Ray and Flash Radiography Sources
Pulse Electron Beam and Lighting Pulse Simulation
High-Speed Digital Pattern and Timing Generation
Features
Fast Rise and Fall Time < 400 ps (20%–80%)
1 ns to 8 s Pulse Width Range
Up to 400 MHz Repetition Rate per Channel
1 or 2 Independent Channels
10 ps Resolution for Width, Delay, and Timing Control
Adjustable Pulse Amplitude from 100 mVpp to 50 Vpp
±25 V Adjustable DC Offset
Low Overshoot (<5%) and <15 ps RMS Jitter
7″ Touchscreen GUI with Rotary Encoder Controls
SCPI Programmable via USB, LAN, or Remote Interface
Berkeley BNC Model 765-HV 400MHz 400ps High-Voltage Pulse Generator
Please allow 3 - 6 weeks for this product to arrive.
This product comes with a 1 year (12 Month) warranty.
Channels 1 or 2 Independent Channels Pulse Period Range: 5 ns to 8 s
Resolution: 10 ps
RMS Jitter: <15 ps
Accuracy: ±2 ppm maxPulse Frequency Up to 200 MHz (Single Pulse Mode)
Up to 400 MHz (Double, Triple, Quad Mode)Pulse Width Range: 1 ns to (Period – 1 ns)
Resolution: 10 ps
Accuracy: ±(1% + 100 ps)
RMS Jitter: <10 psPulse Delay Range: 0 ps to Period
Resolution: 10 ps
Accuracy: ±(0.1% + 100 ps)Pulse Amplitude Range (p-p): 100 mVpp to 50 Vpp
Resolution: 10 mV
Accuracy: ±(2% of amplitude + 2% of |DC Offset| + 200 mV)DC Offset / Baseline Range: 0 V or ±25 V adjustable
Software-Selectable Baselines: –25 V, –12.5 V, 0 V, +12.5 V, +25 V
Resolution: 12.5 mVRise and Fall Times Rise Time (20%–80%): <400 ps (up to 50 Vpp)

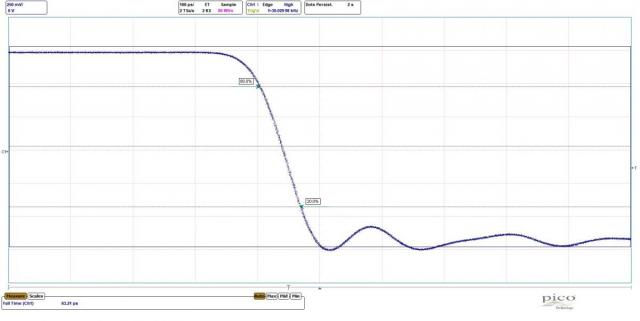

Fall Time (20%–80%): <530 ps (up to 50 Vpp)
Rise Time (10%–90%): <630 ps (up to 50 Vpp)
Fall Time (10%–90%): <840 ps (up to 50 Vpp)
Overshoot: <8% (≤25 Vpp), <5% (25–50 Vpp)Channel-to-Channel RMS Jitter <15 ps Output Impedance 50 Ω nominal Trigger Input / Output Input Impedance: 50 Ω or 1 kΩ (programmable)
Input Range: ±3.5 V (50 Ω), ±10 V (1 kΩ)
Min Detectable Amplitude: <50 mVpp
Threshold Range: ±8 V (10 mV res., ±100 mV acc.)
Max Input Frequency: 40 MHz
Min Pulse Width: 1 ns
Trigger Output: 1.8 V–3.3 V adjustable, 50 Ω
Trigger Delay (In–Out): <100 ns
Trigger Jitter: <30 ps (≤15 MHz input)Reference Clock Input: 10–100 MHz, 50 Ω AC-coupled, –5 dBm to +4 dBm
Output: 10 MHz or External Clock Frequency
Accuracy: ±2 ppmTrigger Modes Single, Continuous, Burst, Gated
Multiple Pulse: Single, Double, Triple, Quadruple, External WidthPower Requirements 100–240 VAC ±10%, 47–63 Hz
Maximum Power Consumption: 300 WEnvironmental Conditions Operating Temp: +5 °C to +40 °C
Storage Temp: –20 °C to +60 °C
Operating Humidity: 5–80% RH (non-condensing)
Storage Humidity: 5–95% RH (non-condensing)
Operating Altitude: ≤3,000 m
Non-Operating Altitude: ≤12,000 mCompliance & Safety EN61010-1 (Safety)
EN 61326-1:2013 (EMC / Immunity)Hardware & Software Intel Celeron J1900 2 GHz
8 GB RAM, 128 GB SSD
Windows 10 OS
7″ Capacitive Touch LCD (1024×600)
Interfaces: HDMI, VGA, LAN, USB 2.0/3.0, PS/2, Audio I/OPhysical Characteristics Dimensions (W × H × D): 445 × 135 × 320 mm (3U 19″ rackmount)
Weight: 9.7 kg (21.4 lbs)
