Berkeley BNC PNC High Voltage Power Supply Output Voltage up to 300,000 Volts PNC
The PNC series are switched mode power supplies that feature precisely regulated DC voltage in combination with lowest residual ripple and best long-term stability. Units are available in various ranges up to 300,000 volts and allow for modifications in real-time to meet customer requirements. Universal housing allows for the units to be used as both a benchtop and a 19” rackmount unit.
Functional safety and long-term stability are essential for demanding applications, and the PNC series excels with both. At any time modifications can be made to meet customer requirements.
The PNC series is available as standard with power ratings up to 2 kW and accuracies up to <0.01%. Alternatively, higher performances up to 6,000 Watts (see PNC3p) and higher accuracy up to <0.0001% (see PNChp) are available.

Berkeley BNC PNC High Voltage Power Supply Output Voltage up to 300,000 Volts

Quantity

  • Ordering Information

    Please allow 3 - 6 weeks for this product to arrive.

    This product comes with a 1 year (12 Month) warranty.

  • Technical Specifications

    Specifications

    Input voltage

    PNC & PNChp: 230 V ±10%; other on request

    PNC3p: 3x400 V ±10% 3p; other on request
    Input frequency 47...63 Hz
    Input current

    type-dependent

    PNC: type-dependent; max 10A
    Output voltage

    Positive or negative

    (reversal polarity as option)

    connected to earth
    Voltage stabilization

    Line regulation

    (at ±10% mains voltage change

    		 <±0.01 % Unom

    Load regulation

    (on load step from 0 to 100%)

    		 ≤0.05 % Unom

    Stability

    (under constant conditions)

    		 ≤0.01 % Unom over 8 h
    Current Stabilization

    Line regulation

    (at ±10% mains voltage change)

    		 <±0.01 % Inom

    Load regulation

    (on output voltage change of around ±10% due to load change)

    		 <0.1 % Inom

    Stability

    (under constant conditions)

    		 ≤0.05 % Inom over 8 h

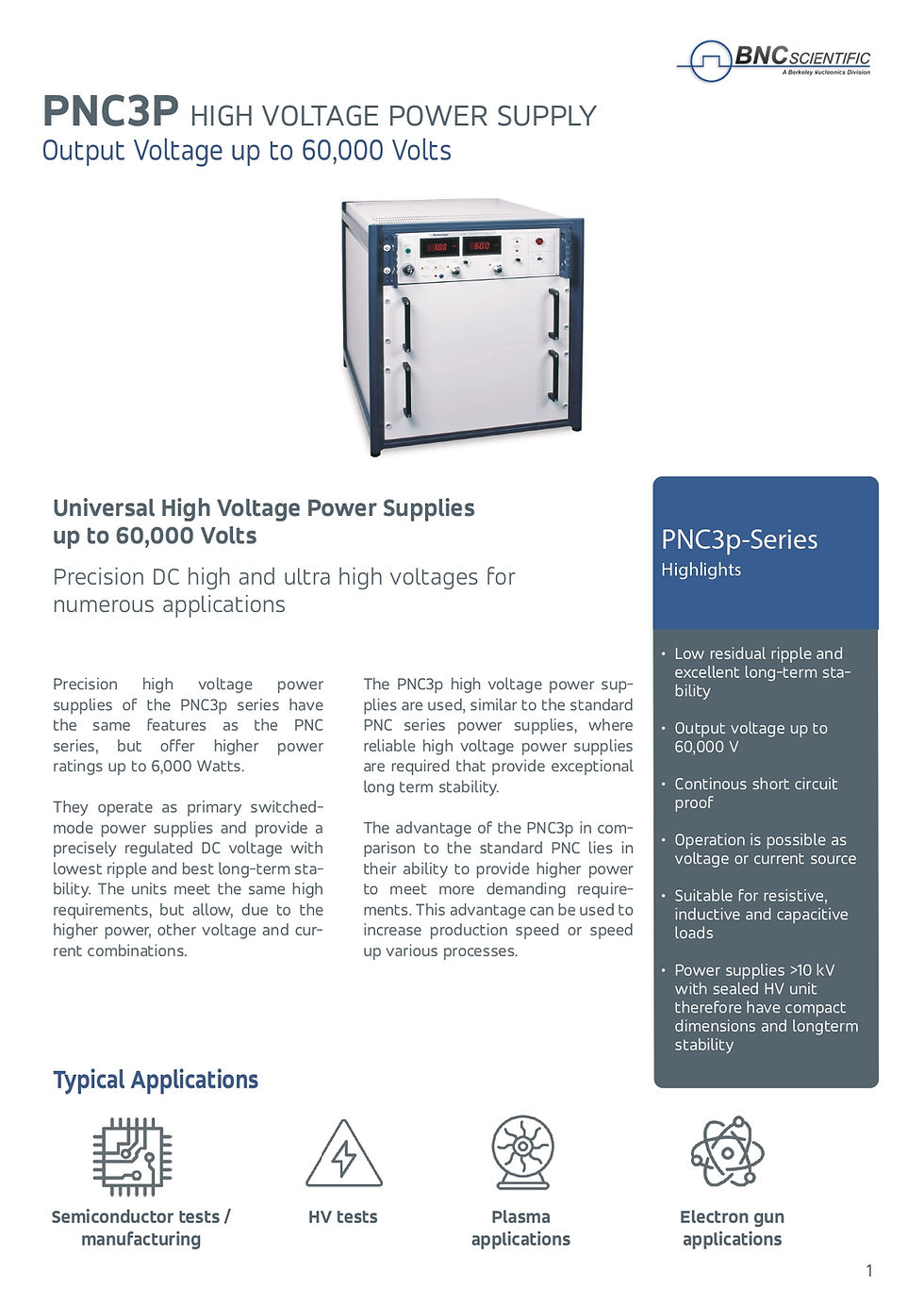

    Please see the images for more information.

  • Features/Applications

    FEATURES

    • Low residual ripple and excellent long term stability
    • Continuous short circuit proof
    • Reverse voltage proof
    • HV on/off via push button or interface
    • Output power up to 2,000 W
    • Setting of the output values through 10-turn potentiometers, separately for voltage and current
    • Remotely controllable and extendable by means of the integrated analog interface 0...10 V

    APPLICATIONS

    • Semiconductor tests / manufacturing
    • HV tests
    • Quality tests
    • Mass spectrometer detectors
    • Accelerators (kickers, detectors)
