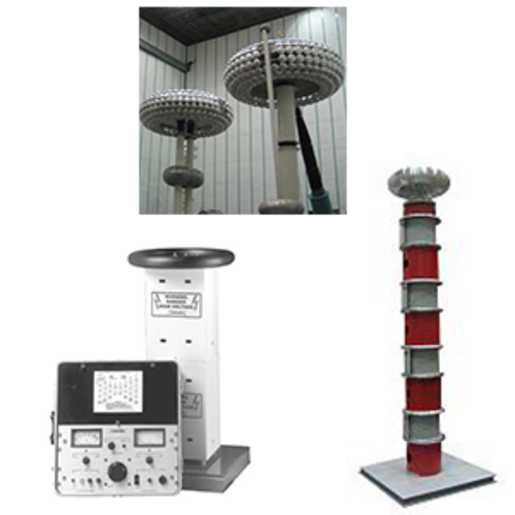

The 8120-5PL-A is HIPOTRONICS' 120 kV DC Hipot solution for testing insulation strength of electrical apparatus. The controller is outfitted with a rugged field case and our high voltage transformer is inside a steel tank, making this unit ideal for field or factory use.
Environmental friendly FR3™ transformer, Rugged and portable construction, Shielded output cable, Full-wave voltage doubling rectifier, Zero start interlock and guard circuit, Internal discharge solenoid, Meter accuracy ± 2% full scale, 5-10 mA current rating, External interlock provisions, Three range voltage meter, Four range current meter, No internal leakage at full load, Instantaneous overload relay, Surge-limiting resistors in High Voltage output
Hipotronics 8120-5PL-A DC Hipot Tester 120kV
- DC hipot tests up to 120kV at 5mA
- Input 120V, 60Hz (230V, 50Hz available, contact sales)
- Three range analog voltmeter
- Four range analog current meter
- Manual controlled only
- Rugged design for field and factory use
- Measures output voltage and leakage current
- Utilizes environmentally friendly FR3 transformer oil
- Metering accuracy +/- 2% of F.S.
- Includes shielded output cable
- HHDA13-280 - Grounding stick, 120kV max voltage
- SPK1-1820-5PL - Spare parts kits for 8120-5PL-A
