THT200 is the new professional thermal camera equipped with a high resolution 160 x 120pxl IR sensor that makes it suitable for use in electrical, mechanical, plumbing, ventilation and refrigeration systems. It is equipped with a measuring range of -20°C ÷ 650.0°C and a field of view of 20.7° x 15.6°, producing high quality thermal images and videos, as well as allowing AutoFusion and Picture in Picture functions. The thermal imaging camera is equipped with a modern internal icon structure and a high brightness capacitive touch-screen display.
It is also equipped with Wi-Fi connection, as well as being compatibile with the new and convenient HT Pro Camera application.

HT Instruments THT200 Infrared Thermal Camera IR 160x120pxl -20°C to +650°C

US$2,099.00

Quantity

Ordering Information
Please allow 3 - 4 weeks for delivery of this product.

This product comes with a 1 year manufacturer warranty.

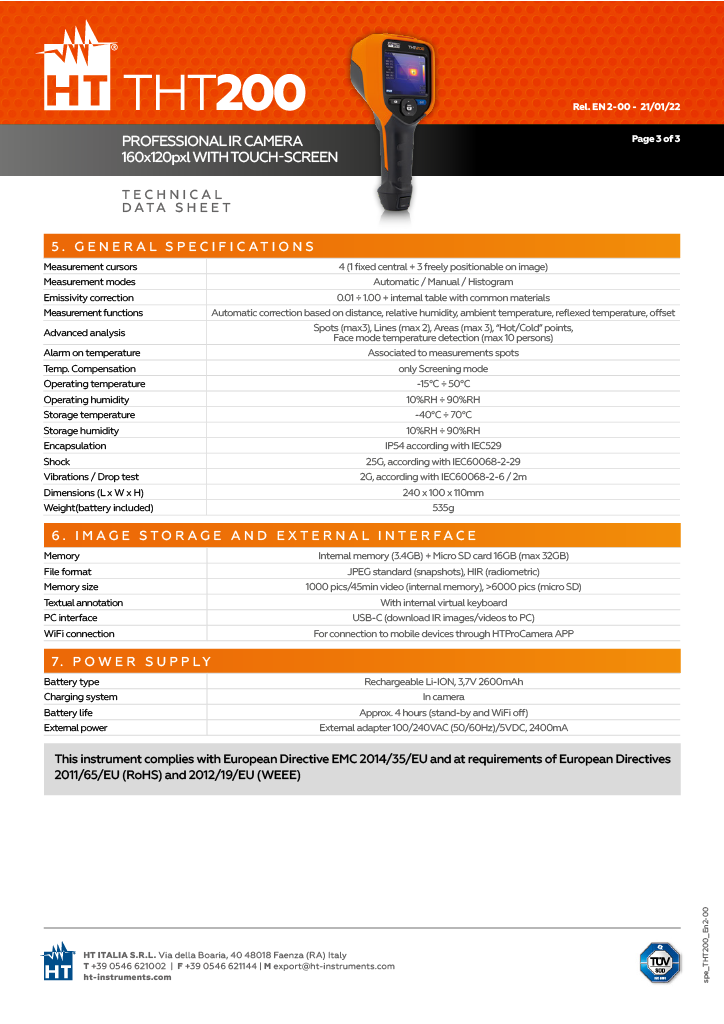

Technical Specifications

IR Resolution	160 x 120 pxl
Temperature range	-20° ÷ 650°C
Image frequency	50Hz
Thermal sensitivity / NETD	<0.05°C @ 30°C / 50mK
Field of view (FOV)	20.7° x 15.6°
Focal length	f 1.0
Lens	7.5mm
IFOV	2.26mrad
Focus mode	Manual Focus
Built-in camera	2 MP, focus free
Picture in Picture function	●
AutoFusion image enhancement	●
Uncertainty about the measure	±2°C (±3.6°F) o±2% of reading
Digital zoom	1x ÷ 32x
Measurement tools (in live mode)	none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
Area measurement information	max, min, AVG
IR Video recording	●
Measurement corrections	emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
Color Palettes	iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
Internal memory storage	3,4 GB
On-camera report building	text annotation
Communication modes	USB type C, Wi-fi, SD card
Display	touch screen
Battery operation time	4 hours
Size (LxWxH) (mm)	240 x 101 x 110mm
