A range of tools and instruments vital for assessing and maintaining the health of optical networks. At its core are our OTDRs (Optical Time Domain Reflectometer), specialized devices that provide detailed insights into fiber optic lengths, mapping all events and pinpointing flaws or breaks. This enables technicians and professionals to ensure optimal performance and swift troubleshooting.
The MINI2 OTDR is used in the installation and maintenance of fiber optic cables. Features of the MINI2 OTDR include high precision test capabilities, fast response times, and easy to learn operation. The multi-point capacitive touch screen allows for user-friendly operation. The MINI2 OTDR offers accurate and fast test results and creates a report automatically. The MINI2 OTDR’s compact design, delivers a lightweight, truly hand-held device.

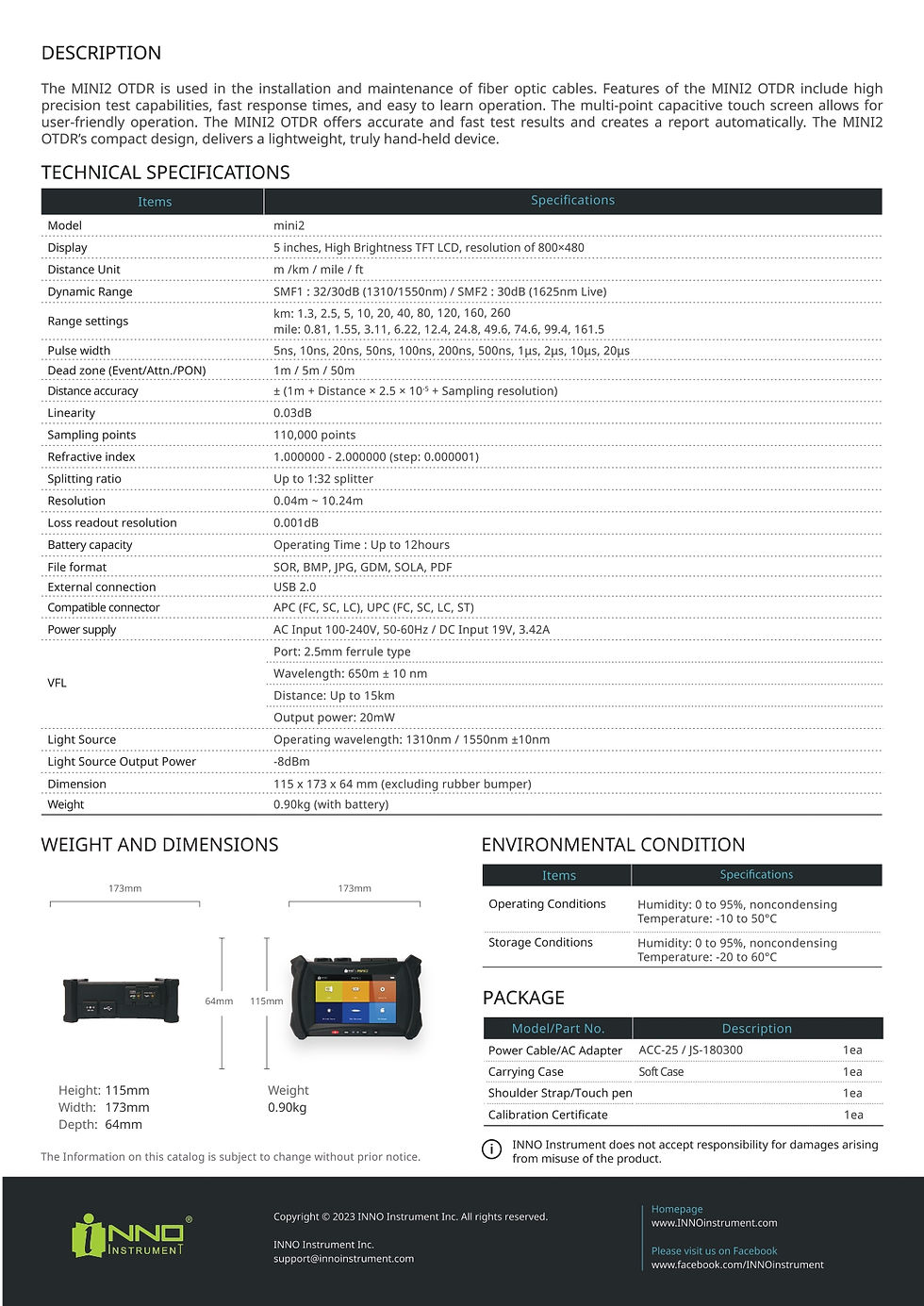

Inno Instruments OTDR MINI2
Features
- OTDR & SOLA
- Lightweight Design
- VFL and Light Source
- Inspection Probe
Specifications
Display Size 5 inches, High Brightness TFT LCD, resolution of 800×480 Distance Units m / km / mile / ft Range Settings SMF1 : 32/30dB (1310/1550nm) / SMF2 : 30dB (1625nm Live) Pulse Widths 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs Linearity 0.03dB Resolution 0.04m ~ 10.24m Sampling Points 110,000 points Output Power 20mW Dimensions
Size (HWD) 4.52H x 6.81W x 2.51D inches Weight 1.98 pounds (900 g with battery) Application
- FTTH / Last-Mile Installation and Troubleshooting
- Short Access-Network Testing
- FTTA / DAS Installations
