A range of tools and instruments vital for assessing and maintaining the health of optical networks. At its core are our OTDRs (Optical Time Domain Reflectometer), specialized devices that provide detailed insights into fiber optic lengths, mapping all events and pinpointing flaws or breaks. This enables technicians and professionals to ensure optimal performance and swift troubleshooting.
INNO Instrument proudly introduces VIEW600, a truly modular OTDR with 13 applicable modules, supporting last-mile, access network, FTTX/PON, metro networks. VIEW600 boasts qualified CPU, fast response time, capacitive touch screen, user-friendly GUI, and above all, accurate test result. We guarantee that you can seamlessly test your networks with this changeable smart gear.

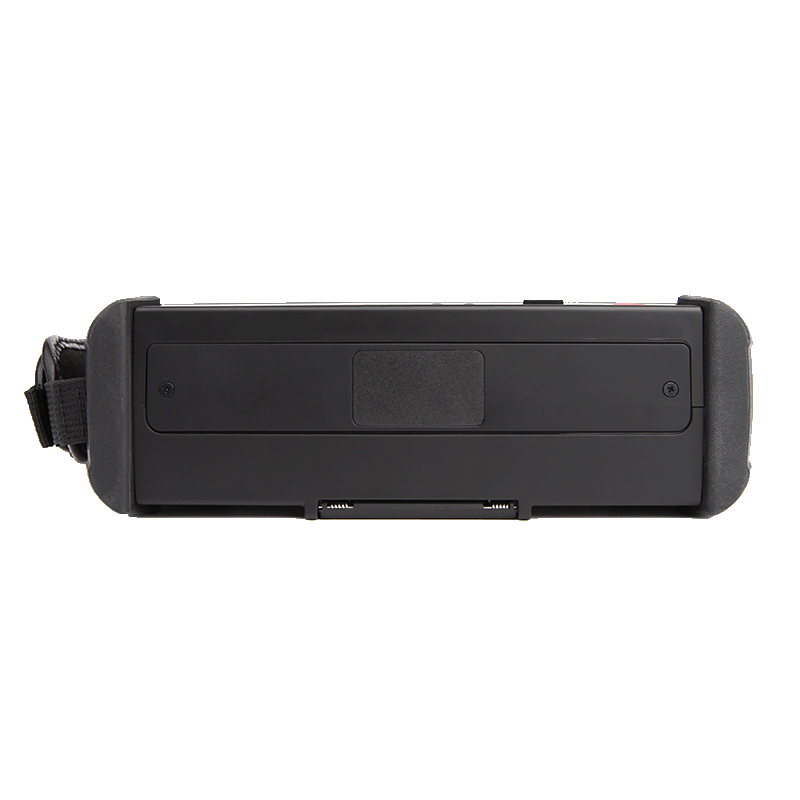

Inno Instruments OTDRs VIEW600
Features
- OTDR & SOLA
- VFL, LS, and OPM
- Modular Design
- Inspection Probe
Specifications
OTDR
Display Size 7 inches, High Brightness TFT LCD, resolution of 800×480 Distance Units m / km / mile / ft / kft Range Settings 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km Pulse Widths 3ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs Linearity 0.03dB Resolution 0.04m ~ 10.24m Sampling Points 256,000 points Output Power 20mW Dimensions
Size (HWD) 6.25H x 8.58W x 2.75D inches Weight 3.75pounds (1.70kg with battery) Application
- Upgradability - Multiple Modules Available
- FTTx/PON Testing
- Splitters (up to 1x128)
- Live Fiber Testing
- Metro & Core Testing
- Link Certification
