The P500 probe set is used for the conducted measurement of the immunity according to IEC 62132-4. Understanding the immunity parameters allows an IC optimization and the definition of application requirements. Available DPI couple networks (P501,P502,P503) allow the RF coupling with different frequency ranges and different input voltages.
**Please note this set requires Langer ICE1 Test Set**
Link to ICE1: https://www.stratatek.com/product-page/langer-emv-ice1-set-ic-test-environment
Scope of delivery
- 1xP501, DPI Coupling Network up to 3 GHz, 50 V
- 1xP502, DPI Coupling Network up to 3 GHz, 1 V
- 1xP503, DPI Coupling Network up to 1 GHz, 50 V
- 1xProbeControl-500, ProbeControl-500 Software / CD-ROM
- 1xSMA-SMA 1 m ds, SMA-SMA Double-Shielded Measurement Cable
- 2xSMA-SMB 1 m ds, SMA-SMB Double-Shielded Measurement Cable
- 1xNT FRI EU, Power Supply Unit
- 1xP500 case, System Case
- 1xP500 m, P500 Set User Manual
Langer EMV P500 Probe Set RF Power Injection
Order Info
Please allow 2 - 3 weeks lead time for this new product to arrive.
Made and manufactured in Germany.
Comes with a One Year warranty from the manufacturer.
P501 DPI Coupling Network up to 3 GHz, 50 V
The P501 DPI coupling network is designed for RF direct power injection (DPI) in IC pins according to IEC 62132-4. Current and voltage can be measured seperately during the power injection via integrated measuring outputs. The P501 coupling network is connected to a power amplifier.
Technical parameters
Coupling capacity 3 µF Voltage probe without preamplifier Frequency range 16 kHz ... 3 GHz Measurement output 50Ω, SMB Transfer factor -40 dB Ammeter /current probe with preamplifier -1 dB compression point 120 dBµV Frequency range 2 MHz ... 3 GHz IP3 134 dBµV Correction curve R (2 MHz - 40 MHz) [dBΩ] characteristic curve Correction curve R (40 MHz - 3 GHz) dBΩ, typical 0 dBΩ ( = 1 V/A) Measurement output 50Ω, SMB Noise figure 4.5 dB Delay from current to voltage, typical 135 ps Supply voltage 12 V / DC Max. forward power 30 W Max. input voltage RF 50 Veff Max. input current RF 1 A Connector - input 50Ω, SMA P502 DPI Coupling Network up to 3 GHz, 1 V
The P502 DPI coupling network is designed for RF direct power injection (DPI) in IC pins according to IEC 62132-4. Current and voltage can be measured seperately during the power injection via integrated measuring outputs. The P502 coupling network is connected to a power amplifier.
Technical parameters
Coupling capacity 3 µF Voltage probe with preamplifier -1 dB compression point 120 dBµV Frequency range 16 kHz ... 3 GHz IP3 134 dBµV Measurement output 50Ω, SMB Noise figure 4.5 dB Transfer factor 0 dB Ammeter /current probe with preamplifier -1 dB compression point 120 dBµV Frequency range 2 MHz ... 3 GHz IP3 134 dBµV Correction curve R (2 MHz - 40 MHz) [dBΩ] characteristic curve Correction curve R (40 MHz - 3 GHz) dBΩ, typical 0 dBΩ ( = 1 V/A) Measurement output 50Ω, SMB Noise figure 4.5 dB Delay from current to voltage, typical 135 ps Supply voltage 12 V / DC Max. forward power 30 W Max. input voltage RF 1 Veff Max. input current RF 1 A Connector - input 50Ω, SMA P503 DPI Coupling Network up to 1 GHz, 50 V
The P503 DPI coupling network is designed for RF direct power injection (DPI) in IC pins according to IEC 62132-4. Current and voltage can be measured seperately during the power injection via integrated measuring outputs. The P503 coupling network is connected to a power amplifier.
Technical parameters
Coupling capacity 3 µF Voltage probe without preamplifier Frequency range 16 kHz ... 3 GHz Measurement output 50 Ω, SMB Transfer factor -40 dB Ammeter /current probe with preamplifier -1 dB compression point 120 dBµV Frequency range 200 kHz ... 1 GHz IP3 134 dBµV Correction curve R (2MHz - 1 GHz), typical 0 dBΩ ( = 1 V/A) Correction curve R (200 kHz - 2 MHz) [dBΩ] characteristic curve Measurement output 50 Ω, SMB Noise figure 4.5 dB Delay from current to voltage, typical 240 ps Supply voltage 12 V/DC Max. forward power 30 W Max. input voltage RF 50 Veff Max. input current RF 1 A Connector - input 50 Ω, SMA ProbeControl-500 ProbeControl-500 Software / CD-RO

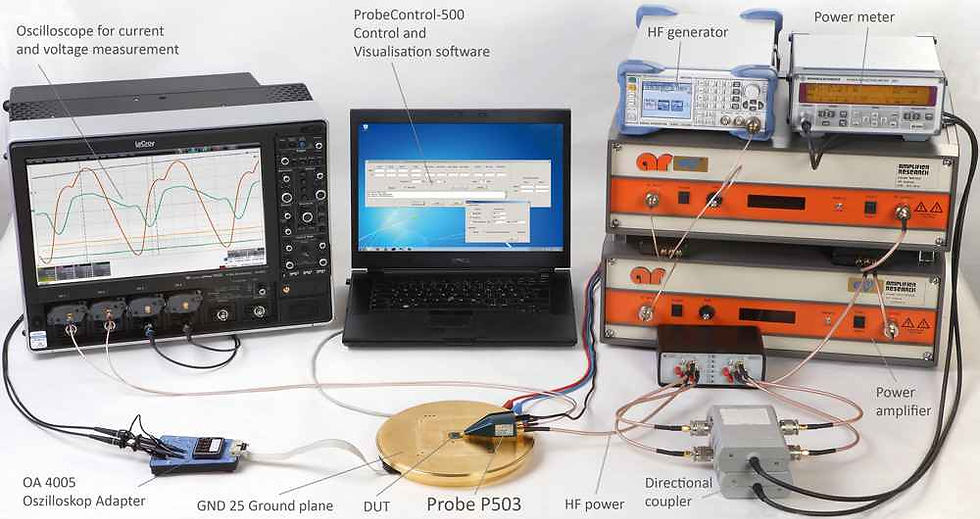

The software ProbeControl-500 controls the measuring station for the coupling of RF power into ICs. The coupling takes place via the device arrangement HF generator, power amplifier and directional coupler.
Scope of delivery
- 1xDongle, Licence Dongle
Technical parameters
Operating system Windows 7 64-bit Monitor resolution 1280 x 1024 Interface USB HD space 100 MB Periphery CD drive Processor Intel Core i3 Memory 1 GB
