LR-Cal LAP-P Electric Pressure Comparison Test Pump to 25 bar/360 psi
The LR-Cal LAP-P electrical pressure test pump is used to generate electrical pressure (without manual effort) for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparative measurement.

If the measuring instrument to be tested and a sufficiently accurate reference measuring instrument are connected to the LR-Cal LAP-P electrical pressure test pump, the same pressure acts on both measuring instruments when the pump is actuated. By comparing the two measured values at any pressure values, it is possible to check the accuracy or adjust the pressure gauge to be tested.
Due to the integrated electric pump, the LR-Cal LAP-P enables automatic and exact test pressure generation with the option of switching to vacuum generation. For precise adjustment for accurate comparison testing, the LR-Cal LAP-P electric pressure test pump is equipped with a fine adjustment valve.

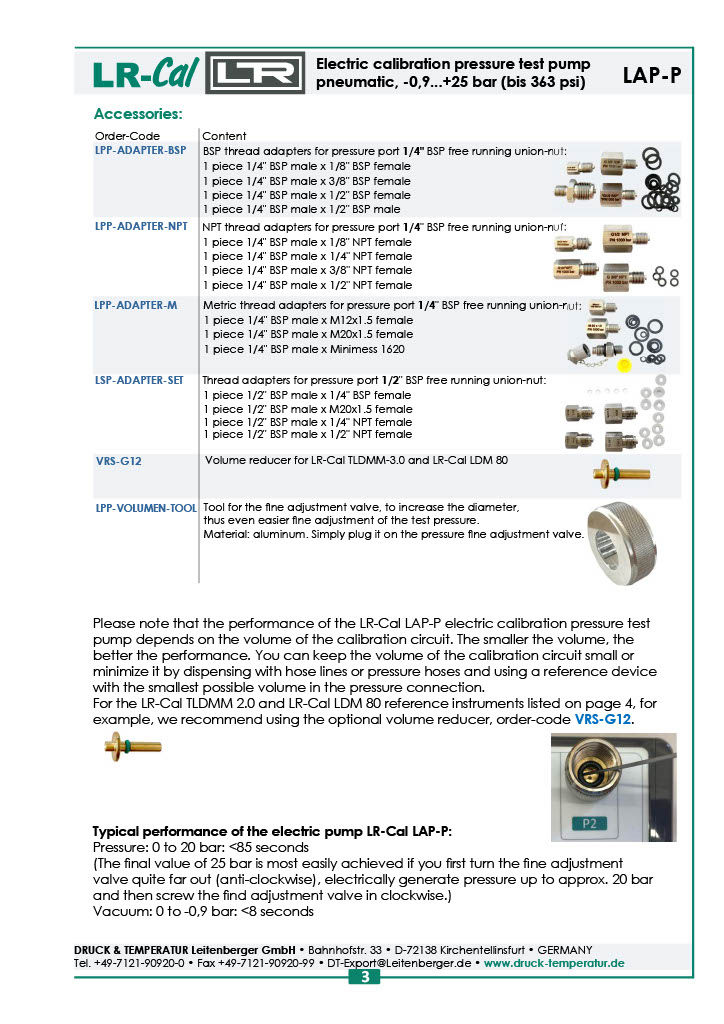

Both the test item and the reference pressure gauge (pressure calibrator) are mounted on top of the electrical calibration test pump, using suitable thread adapters if necessary (see Accessories).

No tools are needed to connect the measuring instruments to the pump; hand-tightening and tightening the instruments is quite sufficient.

The LR-Cal LAP-P electric calibration test pump can be supplied in various versions:
  • Code: LAP-P-G14-G12
    Connection P1 (test item): 1/4" BSP female rotating
    Connection P2 (reference): 1/2" BSP female rotating

  • Code: LAP-P-G14-G14
    Connection P1 (test item): 1/4" BSP female rotating
    Connection P2 (reference): 1/4" BSP female rotating

  • Code: LAP-P-G12-G14
    Connection P1 (test item): 1/2" BSP female rotating
    Connection P2 (reference): 1/4" BSP female rotating

  • Code: LAP-P-G12-G12
    Connection P1 (test item): 1/2" BSP female rotating
    Connection P2 (reference): 1/2" BSP female rotating

LR-Cal LAP-P Electric Pressure Comparison Test Pump to 25 bar/360 psi

$3,959.00Price
Quantity
  • Generation of pressure: 0 to 25 bar (363 psi), switchable to
    Generation of vacuum: 0 to -0,9 bar = 0 to -26.6 inHg
    Pressure ports: 2 connections with free-running union nut and with dirt separator strainer and sealing ring.
    Left pressure port P1 for unit under test and right pressure port P2 for reference instrument.
    Part-No. LAP-P-G14-G12: P1 = 1/4" BSP F + P2 = 1/2" BSP F
    Part-No. LAP-P-G14-G14: P1 = 1/4" BSP F + P2 = 1/4" BSP F
    Part-No. LAP-P-G12-G14: P1 = 1/2" BSP F + P2 = 1/4" BSP F
    Part-No. LAP-P-G12-G12: P1 = 1/2" BSP F + P2 = 1/2" BSP F
    Material wetted parts: Stainless steel, nickel-plated brass, brass, FKM
    Test pressure setting: Fine adjustment valve (large volume variator, sensitivity better than ±1 mbar)
    Temperatures: Operation 0...50°C (+32...+122°F); Storage -20...+60°C (-4...+140°F)
    Power supply: 100...230 VAC (incl. power supply unit to 24 VDC / 1.5 ADC)
    Motor specification: 24 VDC, 220 Ncm, 0.88 A
    Dimensions: approx. 271 x 228 x 116 mm (without power supply unit)
    Housing material: ABS
    Weight: approx. 2.9 kg (without power supply unit)
