Temperature range +20°C...+550°C, Accuracy ±0.3°C, Stability ±0.05°C
Block diameter: 60 mm, Insertion depth: 275 mm



The LR-Cal PULSAR-80Cu temperature calibrator is a compact instrument used to calibrate temperature probes, thermometers, thermostats and temperature mesuring sensors. The considerable size makes it suitable for calibrations of probes with large insertion lengths.

The LR-Cal PULSAR-80Cu temperature calibrator consists of a metal block (80 mm diameter x 300 mm depth) heated by a resistance which winds around the outer surface of the block. A hole with 60 mm diameter and 275 mm depth is made in the block for the apprpriate reduction inserts.

The LR-Cal PULSAR-80Cu is equipped with a counter-current forced air cooling system which keeps the temperature at the upper part of the well low. This system enables to check even very short probes, without heating the connecting head or the handgrip.
The instrument is equipped with a PID microprocessor controller with a resolution up to 0.01°C, allowing the setting of the standard of measurement to °C, °F or K and programming of ascent or descent ramps, and storage of thermostats' operative temperature.

  • Operative temperature range: ambient temperature up to 550°C
  • Insertion depth for units under test 275 mm
  • Ramp functions
  • Thermostat tests
  • Computer aided calibration via RS232 interface
  • Reduction inserts with customizable holes available



Model PULSAR-35Cu-2I comes with two inputs for Pt 100 and Thermocouples. Programmabler

  • Pt 100 IEC 3-/4-wire, Range -100...+700°C, Accuracy ±0.3°C
  • Thermocouple type K/N/R/S, Range 0...1300°C, Accuracy ±1°C
  • Extended scope of delivery:Set of electr. leads, set of screw terminals



This item comes with a one year warranty from the manufacturer. Please allow 4-6 weeks lead time for this new product to arrive.

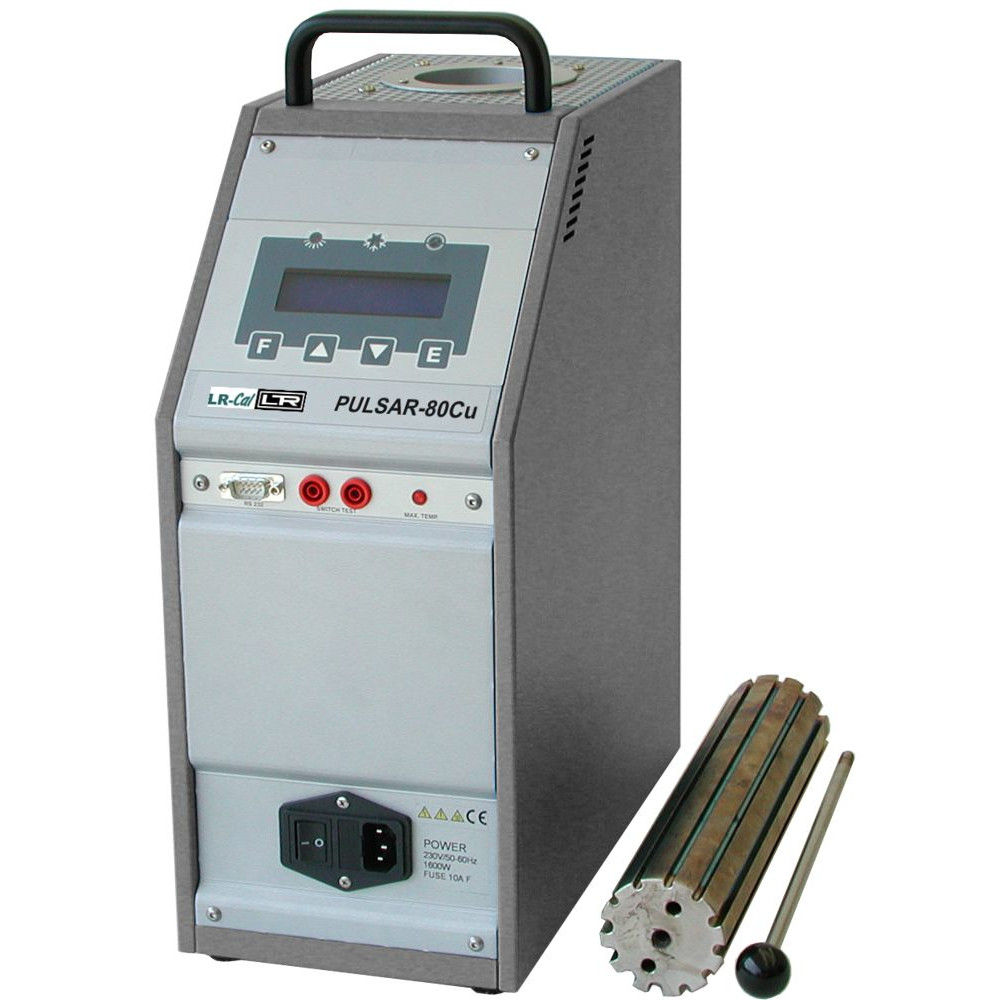

LR-Cal PULSAR-80Cu Dry Block Temperature Calibrator +20°C to +600°C

$9,419.00Price
Models
  • Temperature range (at +20°C ambient temperature) +20°C...+550°C
    Stability ±0.05°C (at 450°C) / ±0.09°F (at 842°F)
    Radial temperature uniformity at 400°C at 100 mm ±0.1°C / ±0.1°F
    Axial temperature uniformity at 400°C for 120 mm from the bottom ±0.3°C / ±0.5°F
    Maximum heating time 9°C/min  (48°F/min)
    Maximum cooling time 1.6°C/min (35°F/min)
    Display resolution 0.1°C / 0.01°F
    Display accuracy ±0.3°C / ±0.5°F
    Units of measurement °C, °F, K
    Serial interface RS232
    Well diameter 60 mm / 2.3 in.
    Insert hole depth 275 mm / 10.8 in.
    Power supply 230 VAC - 50/60 Hz
    Electric power 1700 W
    Calibrator size 170 x 450 x 330 mm
    6.6 x 17.7 x 12.9 in.
    Calibrator weight 23 kg / 50 lb
