MI 3155 EurotestXD is the newest flagship of Metrel’s most advanced line of multi-functional measuring instruments and is designed specifically for testing in industry. What differentiates this instrument from the rest is its ergonomic design and an intuitive user interface, encompassing a memory organizer and fully programmable AUTO SEQUENCEs, managed through a large colour touch screen display. It is fully compliant with functionality standards (e.g. IEC/EN 61557) and other reference standards for testing (e.g. IEC/EN/HD 60364-4-41,...) as is required for any instrument that performs TRMS current measurements, RCD tests, line and loop impedance tests with 3 (and 4) wires and earth resistance measurements. Besides those, the instrument supports a wide range of tests and measuring functions, including on-line voltage monitoring, phase sequence testing, varistor testing, PI/DAR calculation, luminance measurement, discharge time testing, ISFL measurements, IMD tests as well as functional and visual inspections.

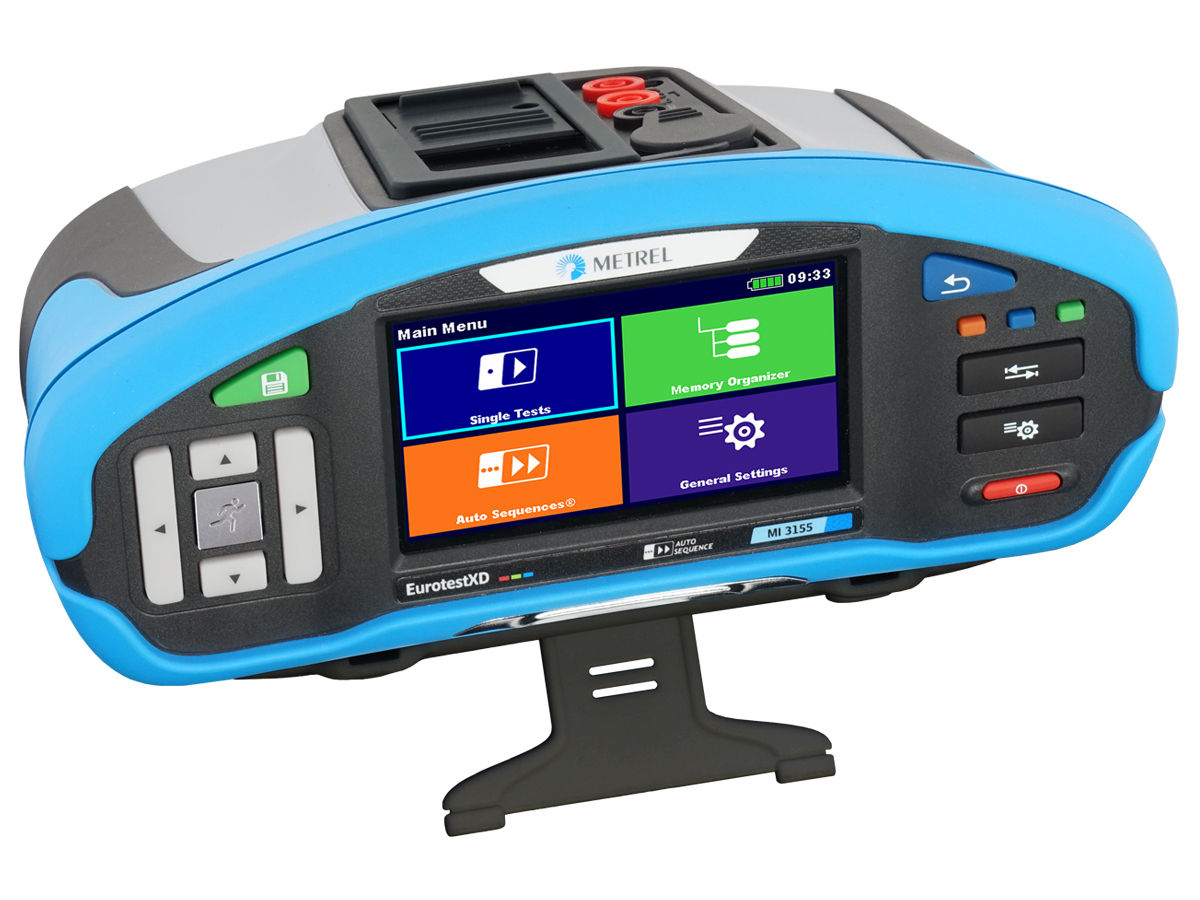

Metrel MI 3155 EurotestXD Multifunction Tester, TRMS, RCD, Insulation ST
Ordering Information
Please allow 2 - 3 weeks lead time.
This product is only available to customers in North America and Canada.
Contact us for any questions or more information about this product.
Included Equipment
- MI 3155 EurotestXD
- 4400 mAh battery pack
- Power supply adapter 12 V / 3 A
- Plug commander, 1.5 m
- Test lead, 4-wire, 1.5 m
- Test lead, 3-wire, 1.5 m
- Test lead, 2-wire, 2,5 kV, 1.5 m
- Test probe, 4 pcs (black, blue, green, red)
- Crocodile clip, 6 pcs (black – 2 pcs, blue – 1 piece, green – 1 piece, red – 2 pcs)
- Earth set 20 m
- USB cable
- Soft carrying bag
- Soft carrying neck belt
- Metrel ES Manager BASIC license
- Short instruction manual
- Instruction manual (CD)
- Guide for testing and verification of Low voltage installations (CD)
- Calibration certificate
- Metrel ES Manager (program installation) A 1481 (CD)
Features and Application
Testing of TT, TN and IT systems;
• Testing of single and multiphase systems;
• Initial and periodic testing of domestic and
industrial installations;
• LV Installation safety testing;
• Maintenance;
• Lightning installations;
• Testing on high and low frequency
installations (industrial, aircraft, railway,
mining, chemistry, ferry boat);
• Construction sites;
• Mobile LV Generator Units;
• Machine and switchboard testing;
• Medical installation testing;
• Fire brigades, ambulance, military and police
vehicles;
• Mobile Video/Audio, Concert Halls, Fairs,
Playgrounds;
• Electrical Vehicle Supply Equipment (EVSE)
testing;
• Observation of insulation trends.Measuring functions
- Live Transformer’s Impedance Measurement with Four Wire Test;
- Hi-precision Short Circuit Current evaluation with Calculated Hot factor;
- 3-wire test of PE (RPE function) without extension lead conductor;
- Autotest insulation function between L-N, N-PE and L-PE (R ISO ALL function);
- 4 wire continuity test;
- Insulation resistance with DC voltage from 50 V to 2500 V and PI, DAR calculation;
- Varistor test;
- Continuity of PE conductors with 200 mA DC test current with polarity change;
- Continuity of PE conductors with 7 mA test current without RCD tripping;
- 2-wire and 3-wire loop impedance (L-PE) measurement with Trip Lock RCD function;
- Touch voltage / Contact voltage measurement with external P/S probe.
- 2-wire and 3-wire high-current loop impedance (L-PE) measurement;
- 3-wire loop impedance (L-PE) measurement with Trip Lock RCD function;
- 1-phase / 3-phase TRMS voltage and frequency measurements;
- Line, loop and RCD measurements at frequency range 16 ... 400 Hz;
- Phase sequence;
- Power and THD measurement (up to the 12th harmonic);
- RCD testing (general and selective, type AC, A, F, B, B+, MI RCD, EV RCD, PRCD, PRCD-K, PRCD-S);
- Earth resistance (3-wire and 2-clamps method);
- Specific earth resistance with Ro-adapter (option);
- TRMS leakage and load currents (option);
- First fault leakage current (ISFL);
- Testing of Insulation Monitoring Devices (IMDs);
- Machine mode support with time discharge;
- Illumination (option);
- High resolution Loop impendance (mΩ) (option);
- EVSE (Electrical Vehicle Supply Equipment) support (option);
- Determining location of cables (option);
- QR and/or barcode scanner support (option).
