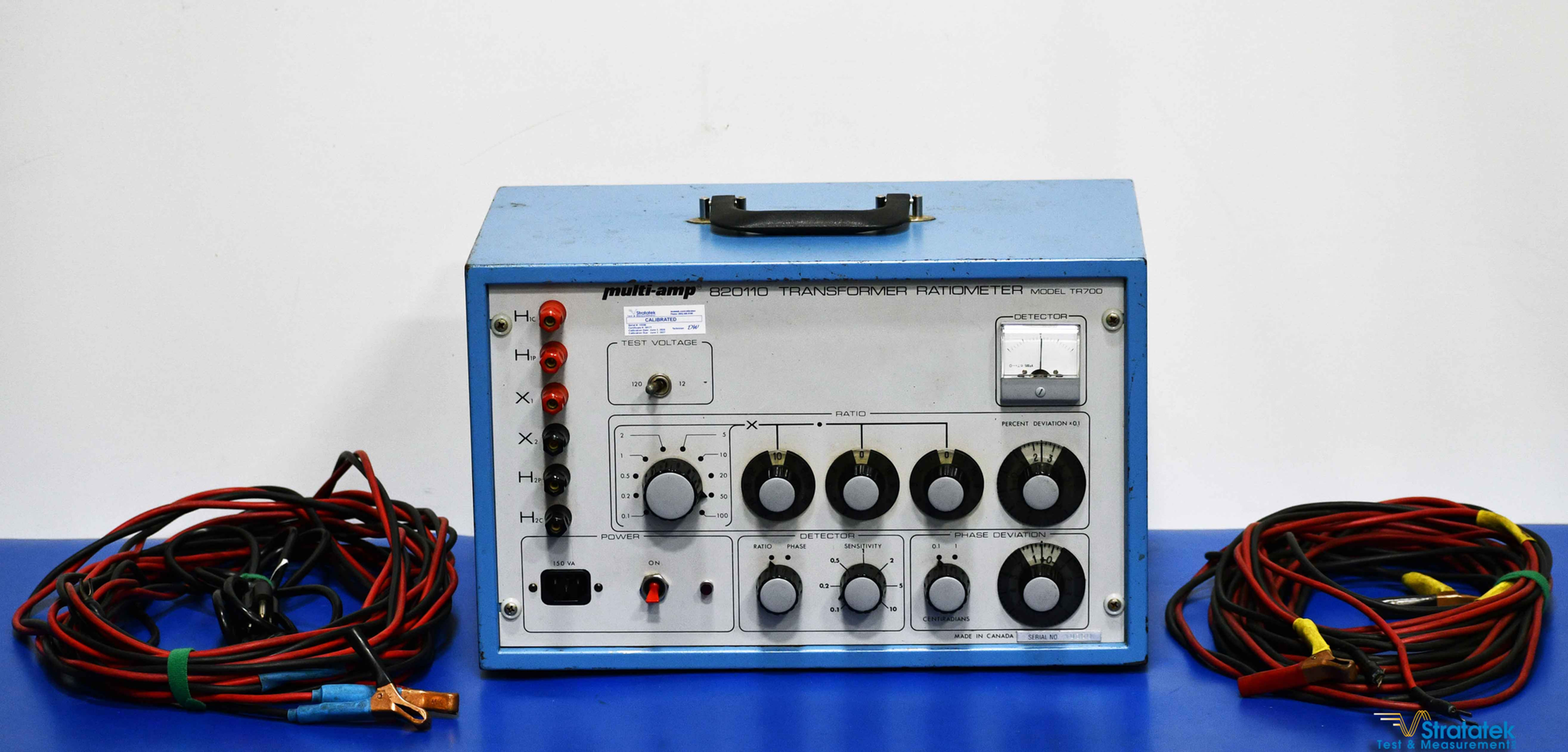

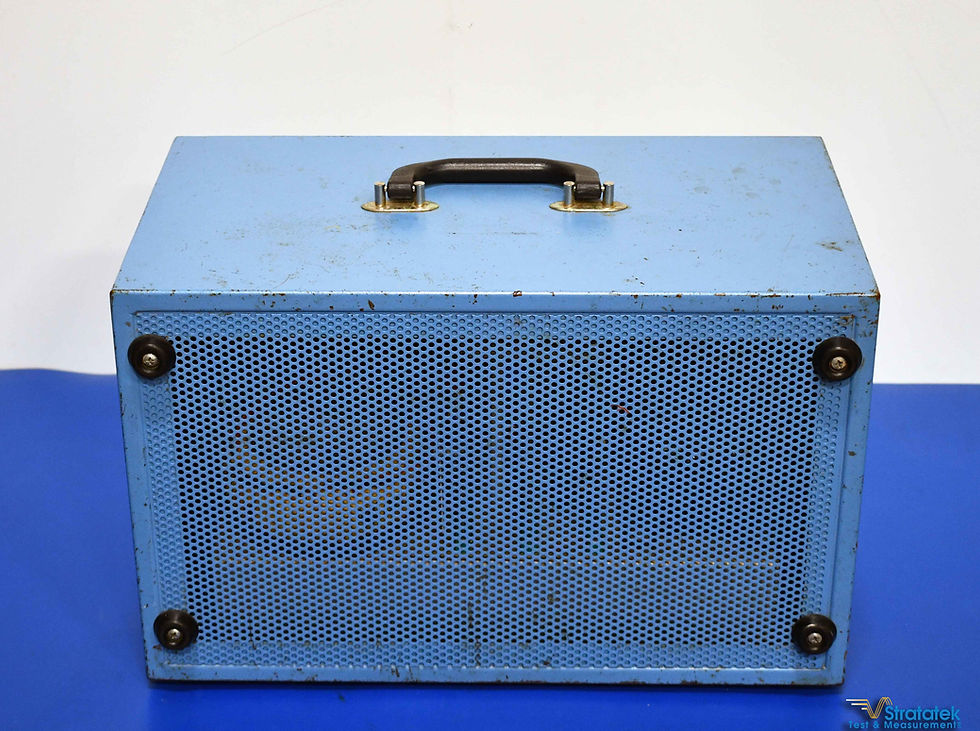

This item is a good condition used Multi-Amp (Megger) TR700 Transformer Ratiometer 3-Phase TTR Cat # 820110. Calibrated to NIST Traceable Standards on June 2, 2026. Comes with rigid shipping case, x2 sets of test leads with clamps X and H), standard power cable, calibration certificate, and 180 day warranty. All pictures are of the actual unit, please see pictures showing the unit testing against 100 turns and 500 turns reference.
This item comes with a 6 Month (180 day) warranty. Every pre-owned unit we offer goes through meticulous inspection and NIST calibration to guarantee its reliability and durability.
We Calibrate Your Test Equipment!
Contact us for more information on Calibration.
For customers in the USA, all purchases arrive cleared. ALL brokerage or customs fees are prepaid by us. Your item arrives FOB destination.
International Buyers – Please Note: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying. For more information of clarification, please ask.
Will ship worldwide. We make our best efforts to get you the best shipping prices. Contact us for other international rates and we will be pleased to give you a quote. We accept VISA / Mastercard. Paypal is also accepted. Sales to within Canada are subject to 5% GST. Ontario sales subject to 13% HST.
Contact us for Calibration options, including ISO 17025 Accredited Calibration for your Test Equipment! Visit stratatek.com/calibration for more details.
Multi-amp Megger TR700 820110 Transformer Ratiometer 3-Phase TTR Calibrated
The Multi-Amp TR700 (Cat. No. 820110) is a portable transformer turns-ratio tester (TTR) designed for accurately measuring the ratio of power transformers, current transformers (CTs), voltage transformers (VTs), regulators, and other AC ratio devices. It uses a transformer ratio-arm bridge with a phase-sensitive null detector to determine ratio, ratio deviation, and polarity. The instrument is commonly used in transformer commissioning, maintenance, and condition assessment to verify winding integrity and identify potential faults.
- Measures transformer turns ratio from approximately 1:1 to 2021:1.
- Provides direct reading of percent ratio deviation from the expected nameplate ratio.
- Measures phase angle deviation, helping identify winding defects, shorted turns, or parallel winding issues.
- Suitable for testing single-phase transformers, auto-transformers, CTs, and VTs.
- Includes built-in protection against over-voltage and incorrect test connections.
Specifications
- Ratio range: 1:1 to 2021:1.
- Ratio accuracy: ±0.1% of ratio reading.
- Ratio deviation range: ±0.5% of ratio reading.
- Ratio deviation resolution: 0.02%.
- Ratio deviation accuracy: ±2% of dial reading.
- Test voltages: 12 V or 120 V AC, selectable, isolated output.
- Operating frequency: 50 or 60 Hz, line-frequency dependent.
