Noise XT PNG-A Phase Noise Generator Amplitude Generator Calibrator
The PNG-A is a high precision generator used in Test and Measurement instruments calibration. It is a Signal Generator with precisely computed phase and amplitude noise characteristics.
With its wide frequency offset range, 1Hz to 1 MHz offset, and its programmable Phase and Amplitude noise in real time, this is the ideal standard to calibrate phase noise analyzers, Signal Source Analyzers and Spectrum Analyzers.
The PNG-A can also be programmed in Random and Deterministic Jitter in order to test Oscilloscopes or even test clock recovery systems or receivers in the presence of noise or jitter.
Much more flexible than traditional noise sources; the PNG-A allows the user to tailor the noise shape and its Phase and Amplitude distribution.

SPECIFICATIONVALUE
Output Frequency5 to 35 MHz
Frequency Resolution0.1 Hz
Output Level-10 to +5 dBm
Phase Noise Range-120 to 0 dBc/Hz
Amplitude Noise Range-120 to -80 dBc/Hz
Offset frequency Range1Hz to 1MHz
Discrete Spurious Range-20 to -200

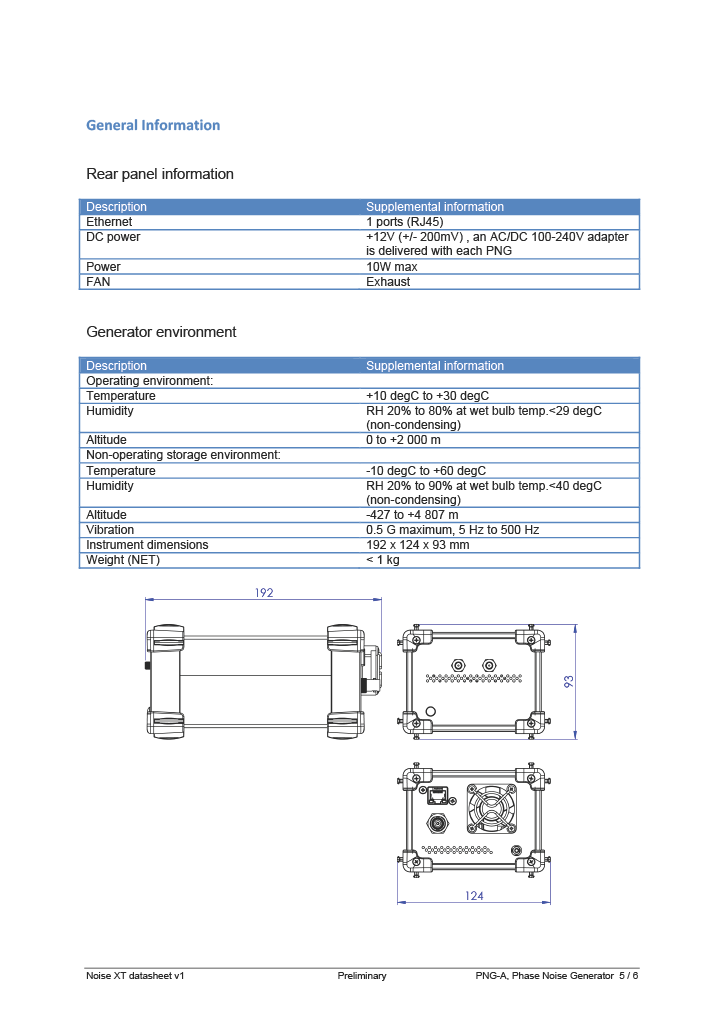

Noise XT PNG-A Phase Noise Generator Amplitude Generator Calibrator

  • Please contact us for a quote or more information about this product.
    info@stratatek.com or (905) 406 - 0100

    • Pure Digital Phase and Amplitude Noise Generation
    • Enables fast Calibration of Phase Noise Analyzers
    • 5 to 35 MHz output frequency
    • Variable output power
    • Remotely programmable Phase and Amplitude noise profiles
    • Small and lightweight (< 1 Kg)
    • Very affordable
    • Works with all Signal Source Analyzers
