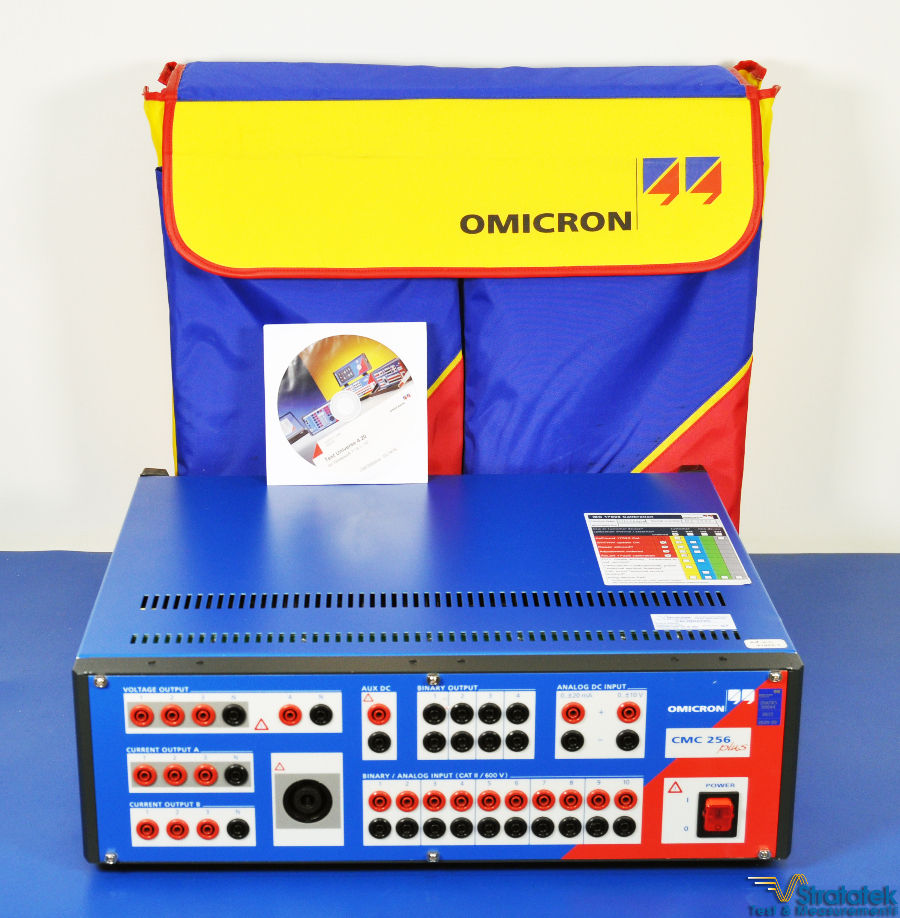

This item is an excellent condition used Omicron CMC 256-6 Relay Test Set. Calibrated to NIST standards with data report on April 18, 2023. Comes with Test Universe Software CD, padded Omicron carry bag, standard power cable, previous/expired Omicron calibration certificate, new NIST traceable certificate of calibration with data, and 90 day warranty. All pictures are of the actual unit and accessories.
This item comes with a 90 day warranty. All functions are guaranteed to work or money will be refunded.
For customers in the USA, all purchases arrive cleared. ALL brokerage or customs fees are prepaid by us. Your item arrives FOB destination.
International Buyers – Please Note: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying. For more information of clarification, please ask.
Will ship worldwide. We make our best efforts to get you the best shipping prices. Contact us for other international rates and we will be pleased to give you a quote. We accept VISA / Mastercard. Paypal is also accepted. Sales to within Canada are subject to 5% GST. Ontario sales subject to 13% HST.
Contact us for Calibration options, including ISO 17025 Accredited Calibration for your Test Equipment! Visit stratatek.com/calibration for more details.
Omicron CMC 256 Plus Relay Test Set 3 Phase Relay Tester NIST Calibrated
Unit Description
The OMICRON CMC 256 Voltage Protective Relay Test Set is one of the top choices for high-accuracy testing. This unit is not only a reliable test set for protection devices of all kinds but also an all-inclusive calibration tool. Due to the OMICRON CMC 256 Plus's high precision, the unit for allows calibrating a wide range of measuring devices, including electricity meters of class 0.2, measuring transducers, power quality measurement devices, and phasor measurement units (PMU). The excellent current measuring accuracy of error < 0.015 % rd.3 + 0.005 % rg.3 typ. at 0-12.5 A and flexibility make the CMC 256 Plus ideal for protection and measurement. The Protective Relay Test set is suitable for research and development, production, and type testing. The CMC 256 Plus can be operated by the Test Universe software, running on a PC or by the front panel control device CMControl. This unit is also compliant with NERC/FERC protective relay standards testing.
Features
- Protection test set and universal calibrator in one device
- Testing of all relay generations – electromechanical, static, numerical, IEC 61850
- Highly accurate test signals
- For meter testing: The sources are the reference – no additional reference meters are required
- Continuous synchronized outputs with CMIRIG-B (e.g. for PMU or MU testing)
- Test Universe software with unrivaled manual and automated testing functionality
- Front panel control with the unique CMControl (option)
- 10-channel analog measurement and transient recording functionality (option)
- Reliable and robust
- High-burden electromechanical relays
- IEC 61850 IEDs (GOOSE and Sampled Values)
- End-to-End testing with GPS or IRIG-B
- Busbar protection (up to 22 signal generators)
- Wide area protection
- Transient playback (COMTRADE, PL4 (EMTP), ...)
- Power quality measurement devices according to IEC 61000
Specifications
Current max. compliance voltage 15 Vpk / 60 Vpk Accuracy Current:
error < 0.015 % rd.3 + 0.005 % rg.3 typ. at 0-12.5 A
error < 0.04 % rd. + 0.01 % rg. guar. at 0-12.5 AVoltage:
error < 0.015 % rd.3 + 0.005 % rg.3 typ. at 0-300 V
error < 0.04 % rd. + 0.01 % rg. guar. at 0-300 VFrequency Range sine signals: 10-1000 Hz
Range harmonics / interharmonics: 10-3000 HzNominal frequency 50/60 Hz Number of outputs Binary: 4
Low level: 6 (12 with Option LLO-2)Operation temperature 0-50 °C (32-122 °F) Storage temperature -25-70 °C (-13-158 °F)
