The innovative PeakTech 6180 power supply unit with color TFT display combines the advantages of a linear-controlled laboratory power supply unit with the remote control options, which have mostly been reserved by switching power supplies so far.
It is operated via the graphical menu system and enables simple control and programming of its multiple features. In addition, the device is using the included PC software that allows a complete remote control.
For doubling the output voltage or output current values, the two independent channels can be interconnected in serial or parallel circuit. Also a plus/minus connection of the outputs is possible.
The technique used by this device and the multiple functions integrated are ideal for the use in research and development in HF-sensitive components and PCBs.

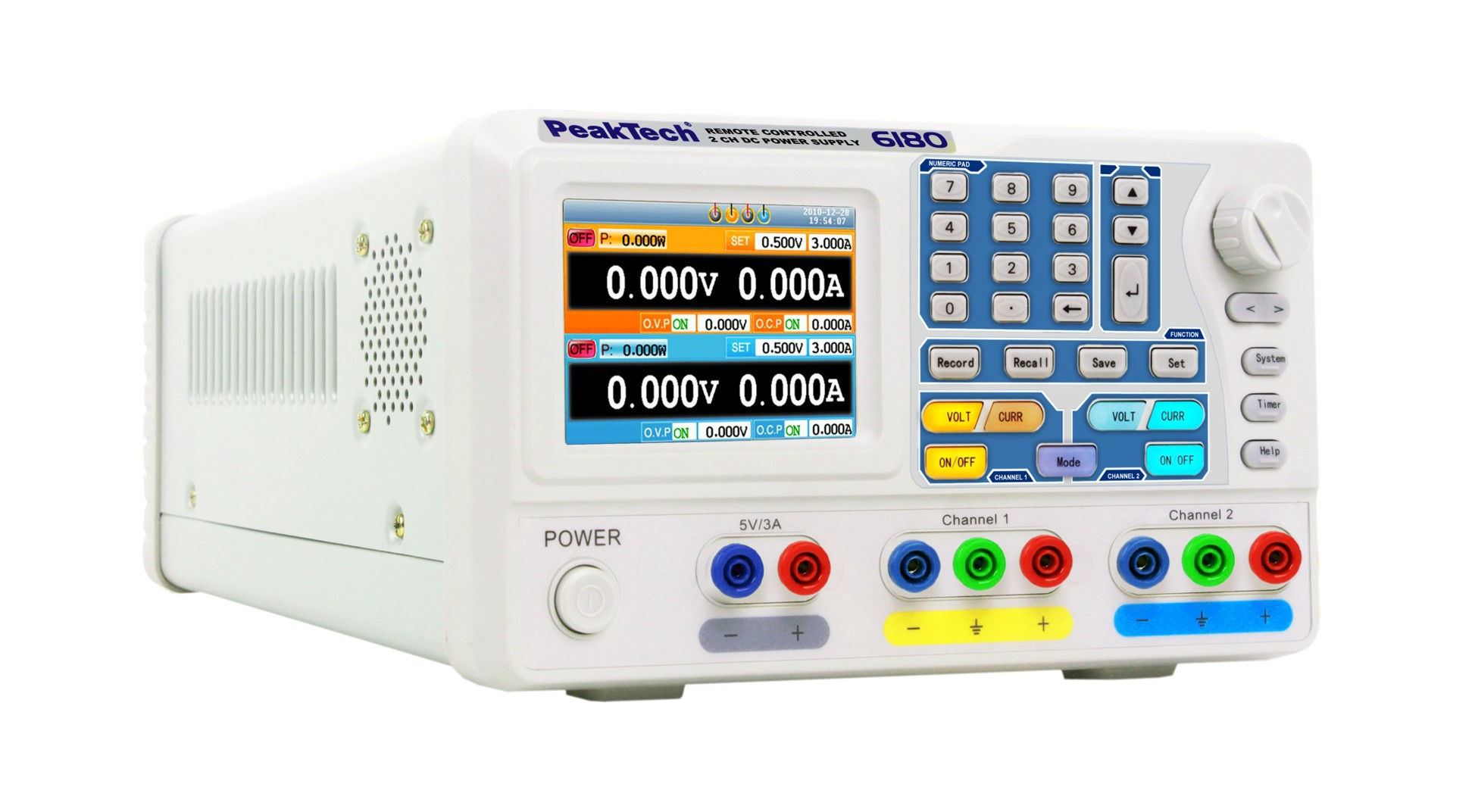

Peaktech P6180 Programmable DC Power Supply 30V 3A Dual Channel, 5V 3A
Included Accessories
- Power Cable
- User Manual
- USB Cable
- Software CD
Order Info
Please allow 4 – 5 weeks lead time for this new product to arrive.
Contact us at info@stratatek.com for data sheets or more information about this product.
Features
- 10 cm (3.9 ") TFT color display
- Graphical User Menu
- Two independent channels with 30 V / 3 A DC
- With fixed voltage output 5 V / 3 A DC
- High output resolution of 1 mV and 1 mA
- Low Ripple & Noise
- Over Voltage and Over Current protection
- Current, Voltage and Power display
- Up to 100 Group-Timer steps
- Time programs selectable as loop or cycle
- Included PC software for remote control
- Up to 10 preset system configruations
- Settings and sequences can be stored
- Outputs Serial, Parallel, or plus/minus interconnected
- Record of Output values to USB-Storage
- USB host and USB Device interface
