The S3302 series Spectrum Analyzer has a wide frequency range, high performance, fast scanning speed, multi-function tests, easy operation and other advantages.
This responsive spectrum analyzer is widely used on site and applied to signal and equipment test in aerospace, microwave, satellite communications and wireless communications.



Key Features

  • Wide frequency range from 9kHz to 44 GHz.
  • Low DANL level to -163 dBm @ 1 Hz RBW.
  • Excellent phase noise performance.
  • Fast scanning speed.
  • A variety of measurement functions.
  • Flexible interfaces and friendly UI.

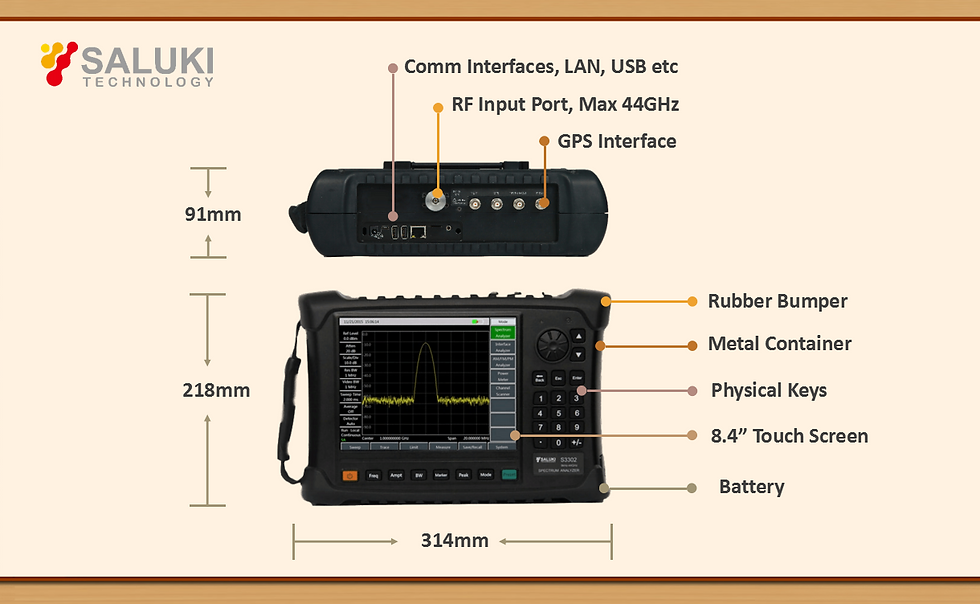

Saluki S3302 Handheld Spectrum Analyzer (up to 44GHz)

$21,249.00Price
Models
  • Frequency Range

    S3302A

    9 kHz - 20 GHz

    S3302B

    9 kHz - 26.5 GHz

    S3302C

    9 kHz - 32 GHz

    S3302D

    9 kHz - 44 GHz

    Bandwidth

    Resolution Bandwidth

    1 Hz - 10 MHz (step by 1-3)

    Video Bandwidth

    1 Hz - 10 MHz (step by 1-3)

    Phase Noise

    @1GHz, 10 kHz offset

    <-102 dBc/Hz

    @1GHz, 100 kHz offset

    <-106 dBc/Hz

    @1GHz, 1 MHz offset

    <-111 dBc/Hz dBc / Hz

    Residual Response

    10 MHz -13 GHz, preamplifier off

    <-90 dBm

    13 GHz -20 GHz, preamplifier off

    <-85 dBm

    20G Hz -44 GHz, preamplifier off

    <-80 dBm

    Displayed Average Noise Level (DANL)

    10 MHz - 4 GHz

    ≤-138 dBm (Pre-amplifier on)



    ≤-157dBm  (Pre-amplifier off)

    4 GHz - 6 GHz

    ≤-135 dBm (Pre-amplifier on)



    ≤-152 dBm  (Pre-amplifier off)

    6 GHz - 20 GHz

    ≤-138dBm (Pre-amplifier on)



    ≤-157dBm (Pre-amplifier off)

    20 GHz - 32 GHz

    ≤-135d Bm  (Pre-amplifier on)



    ≤-154 dBm  (Pre-amplifier off)

    32 GHz - 44 GHz

    ≤-127 dBm (Pre-amplifier on)



    ≤-148 dBm  (Pre-amplifier off)

    Second-order Harmonic Distortion

    10MHz - 18GHz

    <60 dBc

    Sweep Time

    Zero-span

    10 μs - 600 s



    General Information

    Dimension

    314 (W) × 218 (H) × 91 (D) mm

    (without the handle, brackets)



    338 (w) × 218 (H) × 100 (D) mm

    Weight

    <5kg

    Battery Life

    2.5 h

    Input Interface

    S3302A / B: N-type



    S3302C / D: 2.4 mm (M)

  • Please contact us for available options/accessories or more information about this product.

    Please allow 4-6 weeks lead time for new product to arrive.


    For USA customers, all items will arrive FOB. Any taxes or tariffs are prepaid by us.
