The S3331 series handheld spectrum analyzer is designed for field use and it is also a good substitute for benchtop spectrum analyzers. S3331 has a compact design; total weight is less than 3.5kg. The built-in battery can provide 4-hours working time. S3331 provides a variety of useful functions: spectrum analysis, interference analysis, audio analysis, ACPR, OBW, Channel power, AM/FM, limit line etc. A built-in tracking source makes the S3331 a network analyzer. S3331 is a good tool for both onsite maintenance and R&D.
Key Features
- Frequency range from 9kHz - 3.6GHz/7.5GHz
- Sensitive, best DANL <-160 dBm
- Standard pre-amplifier
- Standard LAN and USB interface, support SCPI
- Standard AM,FM demodulation functions.
- Optional tracking Generator function to 3.2GHz
- Low weight, small size, large bright screen, suitable for field use

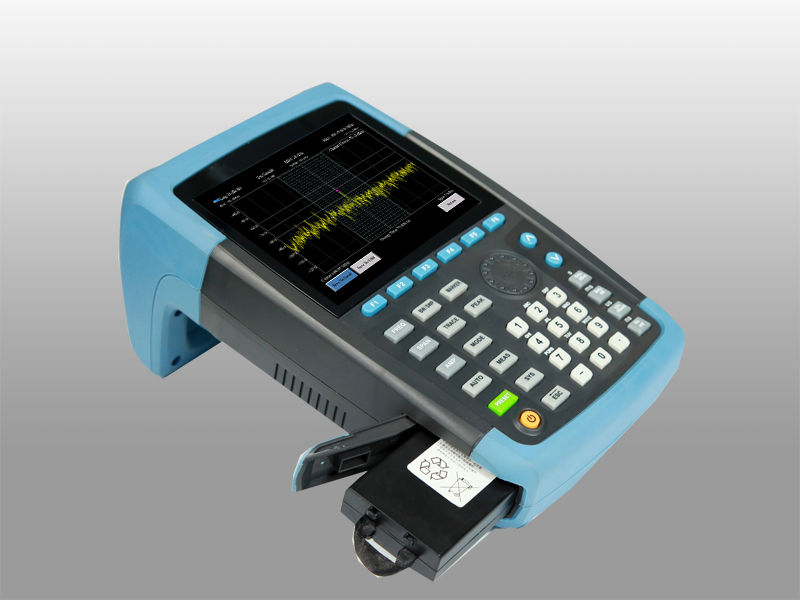

Saluki S3331 Handheld Spectrum Analyzer (up to 7.5GHz)
Specs
For S3331A and S3331B
Frequency range
9 kHz - 3.6 GHz
9 kHz - 7.5 GHz
Resolution
1 Hz
1Hz
RBW Range
1 Hz - 50 kHz, 1 MHz, 3 MHz
1 Hz - 50 kHz, 1 MHz, 3 MHz
VBW Range
10 Hz - 3 MHz
10 Hz - 3MHz
DANL (CF = 1GHz, RBW=1 Hz)
<-135 dBm Preamp off
<-155 dBm Preamp on<-133 dBm Preamp off
<-148 dBm Preamp onOrder
Please allow 4-6 weeks lead time for new product to arrive.
For USA customers, all items will arrive FOB. Any taxes or tariffs are prepaid by us.
Options
Please contact us for pricing on the below optional accessories:
- S3331-01 Backup Battery
- S3331-02 Portable Soft bag
- S3331-03 Field Strength Measurement
- S3331-04 Direction Antenna (Frequency range: 600MHz - 8GHz)
- S3331-05 Omnidirectional Antenna (Frequency range: 300MHz - 7.5GHz)
- S3331-06 Near Field Probe Kit
- S3331-07 SWR Bridge (Frequency range: 10MHz - 3.6GHz)
- S3331-08 USB Power Sensor (Frequency range: 10MHz - 6GHz)
