Available Models:
33-928 - FiberMASTER™ - MM/SM power meter with MM 850nm light source

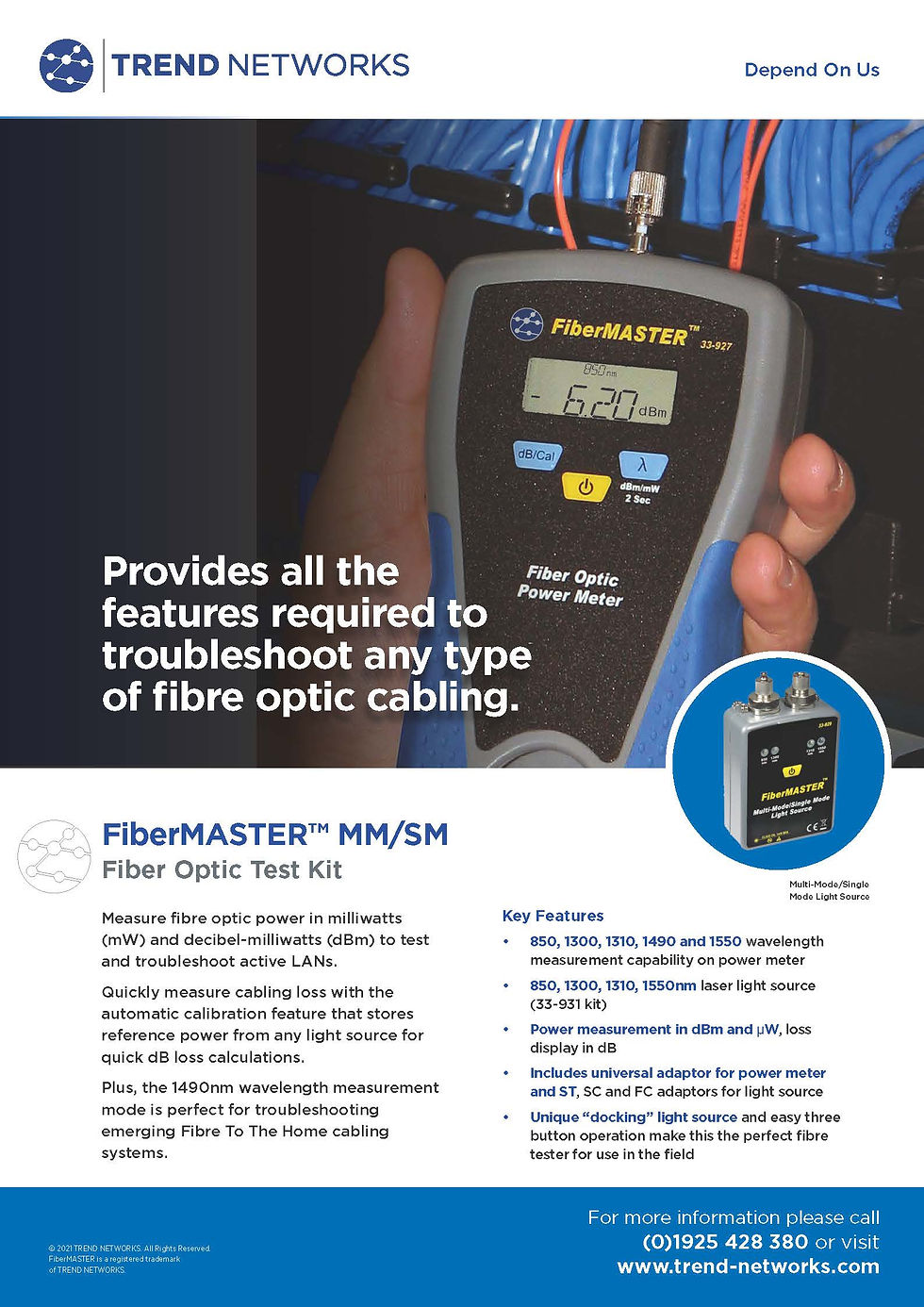

33-931 - FiberMASTER MM/SM power meter with MM/SM light source Optic Test Kit (See Datasheet in Photos for More Information.)
The TREND FiberMASTER fibre optic testing kit allows the user to measure absolute power and calculate the loss of fibre optic links at several wavelengths. Absolute power measurements are helpful when trouble shooting equipment that may not be operating properly. The dB calibration feature allows the operator to set a reference level to the light source and directly read the loss of fibre optic links without needing to manually calculate the values. The unique form factor allows the light source to be docked neatly within the power meter. This makes the kit compact for easy storage while still allowing full operation of both the source and meter.
Trend Networks FIBERMASTER Series Fibre Data Cable Tester Measures In mW and dBm
Ordering Information
Please allow 1-2 weeks for this product to arrive.
This product comes with a 12 month (One Year) warranty from the manufacturer.
Included Equipment
See photo for full details.
Technical Specifications
Power Meter:
- 850, 1300, 1310, 1490 and 1550 nm measurements
- Power measurement in dBm and mW, loss display in dB
- Auto Power Off
- Includes universal 2.5mm adaptor and fixed FC adapter
- Operates on standard AAA batteries, (3)

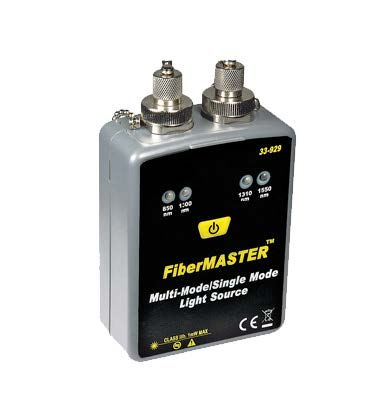

Light Source
- 850nm VCSEL/Laser – 33-928 MM kit
- 850/1300nm (VCSEL/Laser), 1310/1550nm (Laser) – 33-931 MM/SM kit
- Includes ST, SC and FC adaptors
- Docks in the bottom of the power meter for easy storage
- Operates on standard AAA batteries, (3)
- Low battery indication
Applications
For certification and troubleshooting of fibre optic cabling- Certifying (Tier 1) cable performance to ISO 11801 and TIA 568-C standards
- Meet cabling specifications as required by engineers, designers and clients
- Avoid call-backs by identifying faults while onsite
- Ensure cable loss falls within allowable power budget of network components
- Troubleshoot fibre optic network components by measuring power output
