• 12-bit High Resolution – 4096-level ADC for enhanced low-noise measurements
• 80 MHz Bandwidth – Suitable for embedded, analog, and power applications
• 4 Analog Channels – Monitor multiple synchronized signals with ease
• Ultra Phosphor 3.0 – 256-color grading, up to 1M wfms/s capture rate
• 1.25 GSa/s Sample Rate – High-speed capture of transients and glitches
• 100 Mpts Memory – Full-length capture on all four channels
• Built-in Protocol Analysis – Decode UART, I²C, SPI, CAN, LIN
• Integrated Power Analysis Tools – Switching loss, SOA, ripple, and harmonics
• 1M-point FFT – Spectrum analyzer with waterfall, markers, and zoom
• 6-in-1 Integration – Includes oscilloscope, DVM, frequency counter, spectrum and protocol analyzers, and power suite

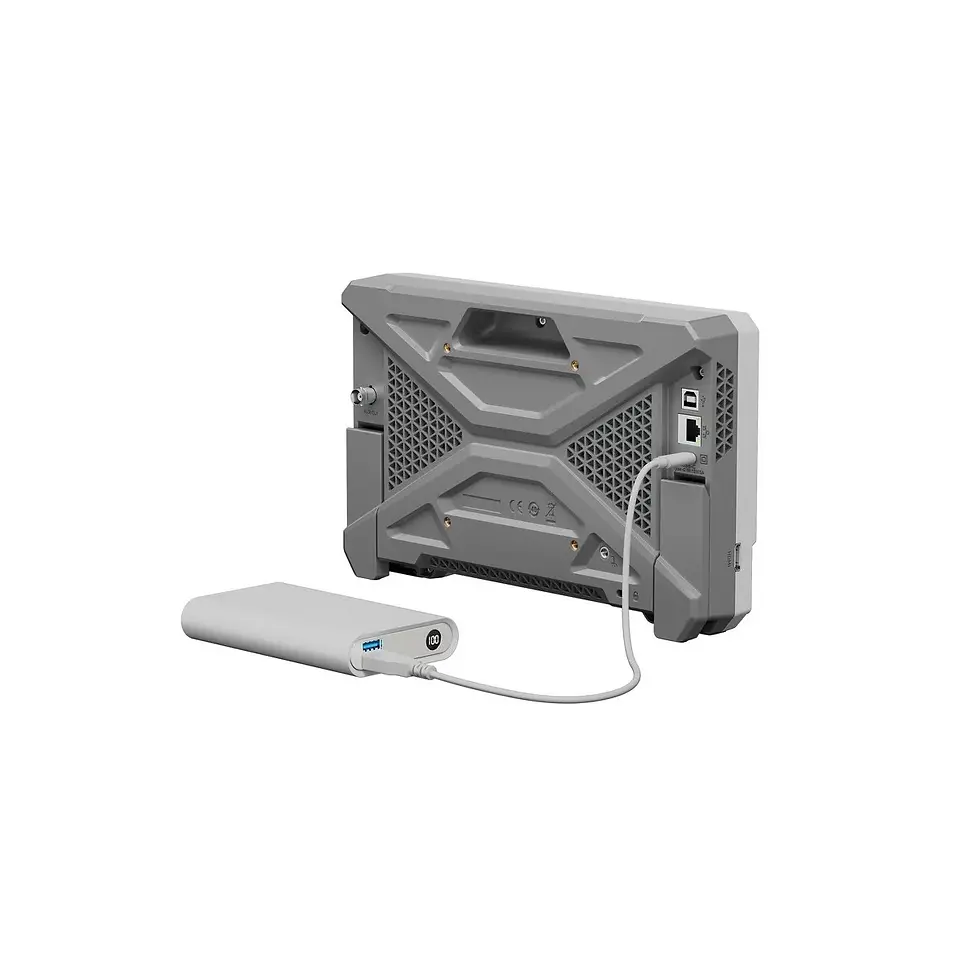

• USB-C PD Power – Operate from bench or battery pack
• Remote Access – SCPI over LAN/USB + built-in web server

Parameter	UPO1084HD Specification
Bandwidth	80 MHz
Channels	4 analog
Sampling Rate	1.25 GSa/s (1CH), 625 MSa/s (2CH), 312.5 MSa/s (4CH)
Vertical Resolution	12-bit (16-bit with ERES)
Memory Depth	100 Mpts
Capture Rate	Up to 1,000,000 wfms/s
Display	7" 1024×600 capacitive touchscreen
Interfaces	USB Host/Device, LAN, HDMI, AUX Out
Power	USB-C PD (≥12 V/3 A)
Weight	1.56 kg

Package Contents

• UPO1152HD Oscilloscope
• 2 × UT-P05 Passive Probes (200 MHz)
• USB 2.0 Cable (UT-D14)
• Type-C PD Power Adapter
• User Manual & Calibration Certificate

Optional Accessories

• UT-ISOT Isolation Transformer
• UT-DF01 Deskew Fixture
• UT-P21 High Voltage Probe (15 kV)
• UT-P4030D High-Frequency Current Probe (100 MHz)
• UT-P4150 Current Probe (150 A/30 A, 12 MHz)
