UTi760XH features a high-resolution infrared detector of 640×512 pixels and a 13MP digital camera. The high-precision thermal
UTi760XH features a high-resolution infrared detector of 640×512 pixels and a 13MP digital camera. The high-precision thermal camera is designed specifically for the industrial field. 30Hz infrared frame rate for fast and accurate access to more temperature data of the moving targets. The wide temperature measurement range and the optional camera lens meet the requirements of numerous severe measurement scenarios.

UNI-T UTi760XH Expert Thermal Imager

US$7,999.00Price
Quantity

  • Order Information

    Please allow 2-3 weeks lead time for new product to arrive.

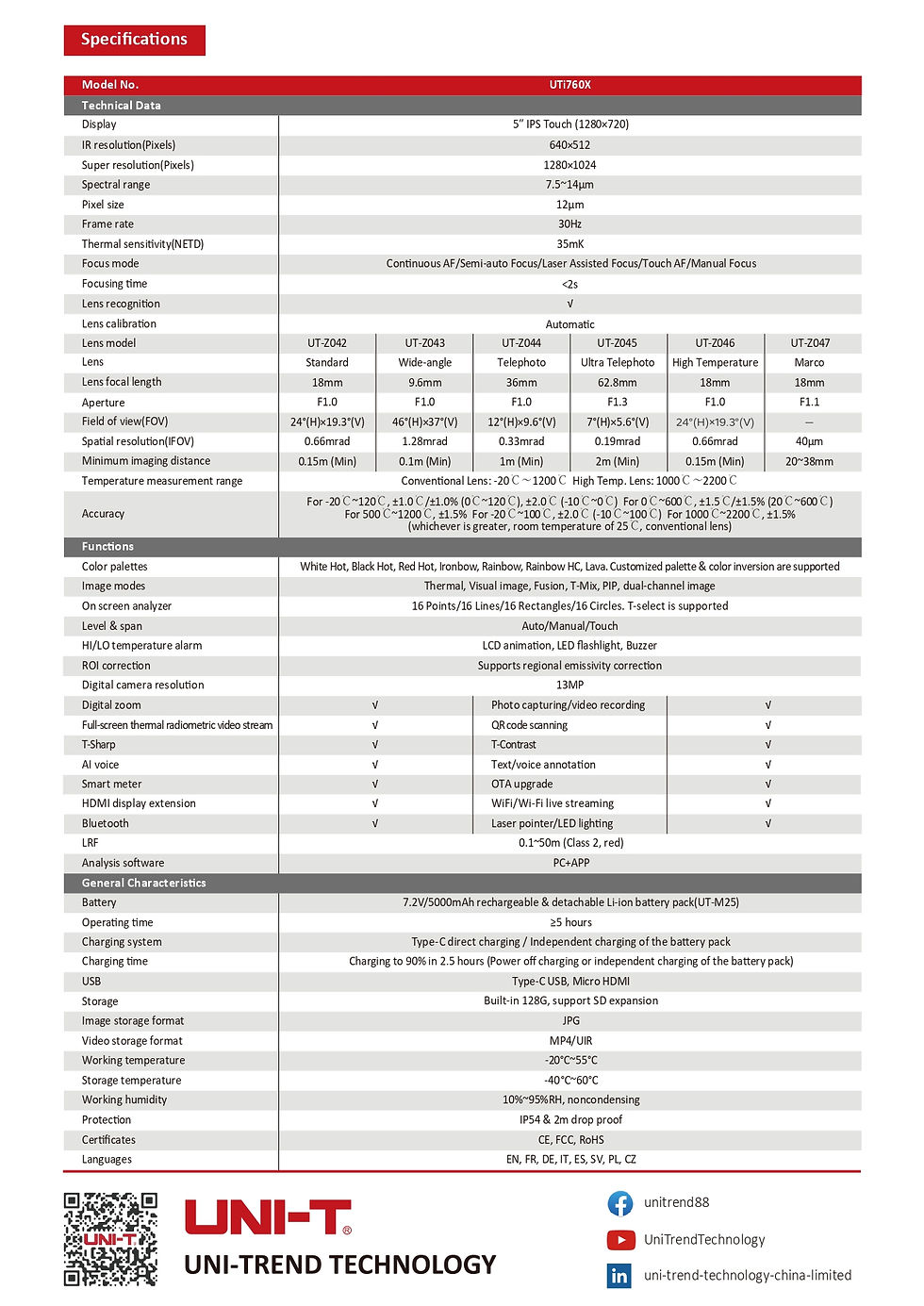

  • Specifications

    Model No. UTi760XH
    Technical Data
    Display 5′ IPS Touch (1280×720)
    IR resolution(Pixels) 640×512
    Super resolution(Pixels) 1280×1024
    Spectral range 7.5～14μm
    Pixel size 12μm
    Frame rate 30Hz
    Thermal sensitivity(NETD) 35mK
    Focus mode Continuous AF/Semi-auto Focus/Laser Assisted Focus/Touch AF/Manual Focus
    Focusing time <2s
    Lens recognition ✔
    Lens calibration Automatic



    Color palettes White Hot, Black Hot, Red Hot, Ironbow, Rainbow, Rainbow HC, Lava. Customized palette & color inversion are supported
    Image modes Thermal, Visual image, Fusion, T-Mix, PIP, dual-channel image
    On-screen analyzer 16 Points/16 Lines/16 Rectangles/16 Circles. T-select is supported
    Level & span Auto/Manual/Touch
    HI/LO temperature alarm LCD animation, LED flashlight, Buzzer
    HI/LO temperature tracking ✔
    ROI correction Supports regional emissivity correction
    Digital camera resolution 13MP
    Digital zoom ✔
    Photo capturing / Video recording ✔
    Full-screen thermal radiometric video stream ✔
    T-Contrast ✔
    T-Sharp ✔
    Smart meter ✔
    AI voice ✔
    OTA upgrade ✔
    QR code scanning ✔
    Text/Voice annotation ✔
    HDMI display extension ✔
    WiFi / Wi-Fi live streaming ✔
    Bluetooth ✔
    Laser pointer ✔
    LRF 0.1～50m (Class 2, red)
    LED lighting ✔
    Analysis software PC+APP



    Battery 7.2V/5000mAh rechargeable & detachable Li-ion battery pack
    Operating time ≥5 hours
    Charging system Type-C direct charging / Independent charging of the battery pack
    Charging time Charging to 90% in 2.5 hours (Power off charging or independent charging of the battery pack)
    USB Type-C USB, Micro HDMI
    Storage Built-in 128G, supports SD expansion
    Image storage format JPG
    Video storage format MP4/UIR
    Working temperature -20℃～55℃
    Storage temperature -40℃～60℃
    Working humidity 10%～95%RH，noncondensing
    Protection IP54 & 2m drop-proof
    Certificates CE, FCC, RoHS
    Languages EN, FR, DE, IT, ES, SV, PL, CS

  • Features

    • 640×512 pixels (upgrade to 1280×1024 when Super Resolution is on)
    • Temp. Measurement range up to 2200℃
    • Interchangeable camera lens (support lens autocal)
    • Multiple focus modes (Continuous AF/Contrast AF/Laser AF/Touch AF/Manual Focus/Automatic)
    • With the T-Mix image fusion algorithm technology
    • High-precision measurement (accuracy is up to ±1.0℃ or ±1.0%)
    • Smart meter
    • AI voice
    • Laser rangefinder
    • OTA upgrade
