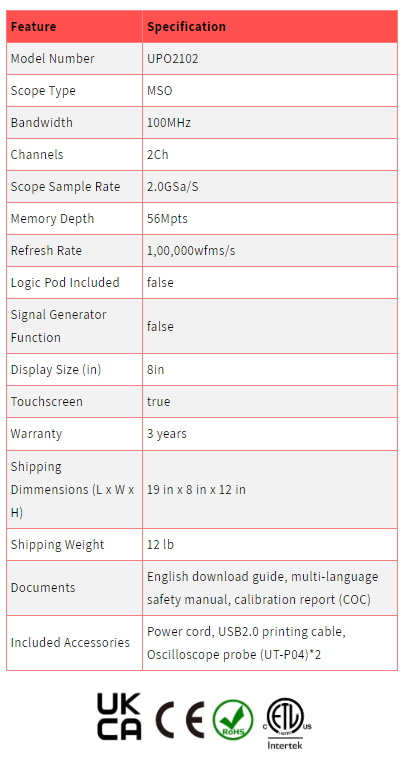

UNI-T UPO2102 100MHz 2Ch MSO Mixed Signal Oscilloscope (w/o Logic Pod)
When you need to analyze analog waveforms, the Uni-T UPO2102 is a great choice! Add the UT-M15 to decode digital bus signals.

Digital fluorescent display
256-level grayscale display capability, timely reflecting the probability of the appearance of the waveform, and the waveform change is clearly visible.

Excellent storage depth
Up to 56Mpts storage depth, users can capture longer Time signal without losing waveform details.

Up to 80,000wfms/s waveform capture rate
Up to 80,000wfms/s waveform capture rate, discover occasional problems in time, greatly improve the ability to capture extremely low-probability events, and observe signal jitter and glitches more intuitively

Independent time base adjustable
The time base of each channel is independently adjustable, which is convenient for users to observe four channels of frequencies at the same time Significantly different signals.

Rich data measurement functions
Support 34 kinds of automatic measurement parameter functions, Support Zoom, Math, statistics and advanced calculation functions.

UNI-T UPO2102 100MHz 2Ch MSO Mixed Signal Oscilloscope (w/o Logic Pod)

$769.00 Regular Price
$538.30Sale Price

  •

    Please inquire for pricing and availability on the below options and accessories:

    Software Options:

    MSO/UPO2000-AUTO
    Function and application bundle option, for MSO/UPO2000 series，including MSO/UPO-CAN, MSO/UPO-CAN...

    MSO/UPO2000-BND
    Function and application bundle option for MSO/UPO2000 series, includes MSO/UPO-EMBD

    MSO/UPO2000-CAN
    Auto serial bus trigger and analysis-CAN for MSO/UPO2000 series

    MSO/UPO2000-CAN FD
    Auto serial bus trigger and analysis-CAN FD for MSO/UPO2000 series

    MSO/UPO2000-EMBD
    Function and application bundle option, for MSO/UPO2000 series, includes MSO/UPO-COM,.

    MSO/UPO2000-FlexRay
    FlexRay serial bus trigger and analysis for MSO/UPO2000 series

    MSO/UPO2000-I2C
    Embedded serial bus trigger and analysis-I2C for MSO/UPO2000 series

    MSO/UPO2000-LIN
    Auto serial bus trigger and analysis-LIN for MSO/UPO2000 series

    MSO/UPO2000-SPI
    Embedded serial bus trigger and analysis-SPI for MSO/UPO2000 series

    MSO2000-S-BODE
    Bode plot option for MSO2000-S Models

    UPO2000-LA16
    16-channel upgrade option (software), for UPO2000 models only. Requires Logic

    Accessories:

    Passive Probes:

    UT-P03 Scope Probe
    Passive Probe, Probe Attenuation: 10:1, Bandwidth (MHz): 60MHz, Voltage: 600Vpp

    UT-P04 Scope Probe
    Passive Probe, Probe Attenuation: 10:1, Bandwidth (MHz): 100MHz, Voltage: 600Vpp

    UT-P05 Scope Probe
    Passive Probe, Probe Attenuation: 10:1, Bandwidth (MHz): 200MHz, Voltage: 600Vpp

    UT-P06 Scope Probe
    Passive Probe, Probe Attenuation: 10:1, Bandwidth (MHz): 300MHz, Voltage: 600Vpp

    UT-P07 Scope Probe
    Passive Probe, Probe Attenuation: 10:1, Bandwidth (MHz): 500MHz, Voltage: 600Vpp

    UT-P08A Scope Probe
    Passive Probe, Probe Attenuation: 10:1, Bandwidth (MHz): 350Mhz, Voltage: 600Vpp

    UT-P20 High Voltage Scope Probe
    Passive Probe, Probe Attenuation: 100:1, Bandwidth (MHz): 250MHz, Voltage: 1500Vpp

    UT-P21 High Voltage Scope Probe
    Probe Attenuation: 1000:1, Bandwidth (MHz): 50MHz, Voltage: DC 15kVrms/AC 10kV

    UT-V23 High Voltage Scope Probe
    Passive Probe, Probe Attenuation: 100:1, Bandwidth (MHz): 100MHz, Voltage: 2000Vpp

    Current Probes:

    UT-P40 AC/DC Current Probe
    Voltage: 600Vrms, Output: 50mV/A, 5mV/A, Max A AC: N/A, MAX A DC: 60A, Frequency: DC~100kHz

    UT-P41 AC/DC Current Probe
    Voltage: , Output: 100mV/A, 10mV/A, Max A AC: N/A, MAX A DC: 100A, Frequency: DC~100kHz

    UT-P42 AC/DC Scope Probe
    Voltage: , Output: , Max A AC: , MAX A DC: 200A, Frequency: 150KHz

    UT-P43 Current Probe
    Output: 100mV/A, Max A AC: 20A, MAX A DC: 20A, Frequency: DC~25MHz

    UT-P44 Current Probe
    Output: 50mV/A, Max A AC: 40A, MAX A DC: 40A, Frequency: DC~50MHz

    Differential Probes:

    UT-P30 Differential Scope Probe
    Differential Probe, Probe Attenuation: 10:1/100:1, Bandwidth (MHz): 100MHz, Voltage: ±800Vpp

    UT-P31 Differential Scope Probe
    Differential Probe, Probe Attenuation: 10:1/100:1, Bandwidth (MHz): 100MHz, Voltage: ±1500Vpp

    UT-P32 Differential Scope Probe
    Differential Probe, Probe Attenuation: 100:1/1000:1, Bandwidth (MHz): 50MHz, Voltage: ±3000Vpp

    UT-P33 Differential Scope Probe
    Differential Probe, Probe Attenuation: 10:1/100:1, Bandwidth (MHz): 120MHz, Voltage: ±14KVpp

    UT-P35 Differential Scope Probe
    Differential Probe, Probe Attenuation: 50:1/500:1, Bandwidth (MHz): 50MHz, Voltage: 130VDC+PeakAC/1300VDC

    UT-P36 Differential Scope Probe
    Differential Probe, Probe Attenuation: 200:1/500:1, Bandwidth (MHz): 100MHz, Voltage: 560VDC+PeakAC/5600VDC

    Other Accessories:

    UT-ISOT Isolation Transformer
    Used for Bode Plot analysis. Requires scopes to have MSO2000-S-BODE or MSO3000CS-S-BODE option

    UT-M15 Logic Pod
    16Ch Logic Analyzer Probe Pod for MSO and UPO Series mixed-signal oscilloscopes

  • Please allow 2-3 weeks lead time for new product to arrive.
