When you need an affordable way to analyze analog waveforms, the Uni-T UTD2102CL+ is a great choice!
Specifications:
100MHz, 2CH, 500MSa/s, Memory Depth: 64kpts, ≥5000wfms/s, 7in display
Introducing the Uni-T UTD2102CL+ Digital Storage Oscilloscope (DSO)
Are you an electrical engineer grappling with complex waveform analysis challenges? Meet the Uni-T UTD2102CL+ Digital Storage Oscilloscope (DSO), an instrument designed to empower you with the precision and versatility needed to overcome the most demanding electrical engineering tasks.
Key Specifications
- Bandwidth: 100MHz
- Analog Channels: 2
- Real-Time Sample Rate: 500MSa/s
- Max. Memory Depth: 64kpts
- Waveform Capture Rate: 5,000wfms/s
Empowering Features to Overcome Electrical Engineering Challenges:
Math Function for Complex Calculations:
Benefit: Simplify complex waveform analysis with the Uni-T UTD2102CL+ Digital Storage Oscilloscope.
Challenge Overcome: Address intricate electrical signal calculations efficiently, essential for designing advanced circuits and systems.
Zoom Function for In-Depth Analysis:
Benefit: Examine waveforms at various levels of detail.
Challenge Overcome: Tackle intricate electrical signal analysis challenges by closely scrutinizing waveform characteristics, uncovering anomalies and fine-tuning system performance.
XY Mode for Phase Difference Measurement:
Benefit: Accurate phase difference measurement.
Challenge Overcome: The easy to use XY Mode on the Uni-T UTD2102CL+ Digital Storage Oscilloscope will allow you to quickly resolve phase alignment issues in circuits, ensuring synchronization between signals, crucial for applications such as motor control systems.
AUTO Mode for Effortless Setup:
Benefit: Streamline waveform display setup.
Challenge Overcome: Using the Uni-T UTD2102CL+ Digital Storage Oscilloscope can simplify complex setups, reduce human error, and expedite waveform analysis, a boon for testing and troubleshooting.
FFT Spectral Analysis for Comprehensive Signal Insight:
Benefit: Gain frequency domain insights from time domain signals.
Challenge Overcome: Identify and address harmonic distortions, noise, and vibration issues in power systems and electronic components with the Uni-T UTD2102CL+ Digital Storage Oscilloscope.
Automatic Parameter Measurement for Precision Analysis:
Benefit: Accurate measurement of signal parameters.
Challenge Overcome: Obtain precise measurements with the Uni-T UTD2102CL+ Digital Storage Oscilloscope. It is essential when validating circuit designs and diagnosing signal anomalies in complex systems.
Variety of Triggers for Signal Capture Control:
Benefit: Fine-tune signal capture for precise analysis.
Challenge Overcome: Use your Uni-T UTD2102CL+ Digital Storage Oscilloscope to capture signals of interest while filtering out noise and unwanted data, crucial for accurate measurements.
Alternating Trigger for Frequency Differentiation:
Benefit: Observe signals with varying frequencies.
Challenge Overcome: Analyze signals from different sources simultaneously, with the Uni-T UTD2102CL+ Digital Storage Oscilloscope. An invaluable tool for diagnosing faults in multi-component systems.
The Uni-T UTD2102CL+ Digital Storage Oscilloscope (DSO) is your partner in overcoming the complexities of electrical engineering challenges. Unlock the potential of this advanced tool and elevate your work to new heights of precision and accuracy. Purchase the Uni-T UTD2102CL+ now and revolutionize your electrical engineering endeavors. Your next breakthrough awaits!

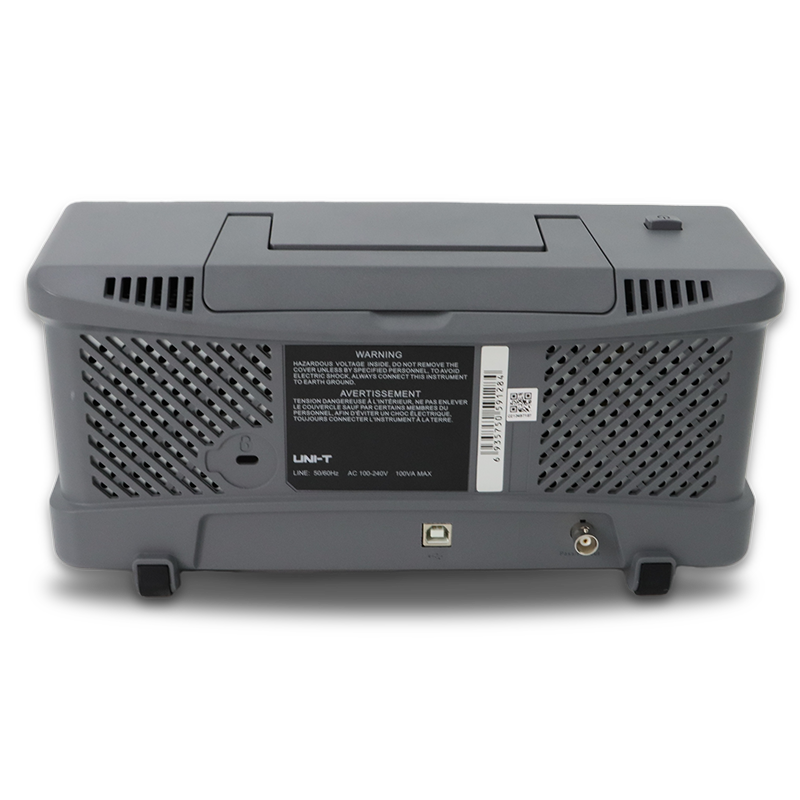

UNI-T UTD2102CL+ 100MHz 2Ch Digital Storage Oscilloscope DSO
Please inquire for pricing and availability on the below accessories:
Passive Probes:
UT-P03 Scope Probe
Passive Probe, Probe Attenuation: 10:1, Bandwidth (MHz): 60MHz, Voltage: 600VppUT-P04 Scope Probe
Passive Probe, Probe Attenuation: 10:1, Bandwidth (MHz): 100MHz, Voltage: 600VppUT-P05 Scope Probe
Passive Probe, Probe Attenuation: 10:1, Bandwidth (MHz): 200MHz, Voltage: 600VppUT-P06 Scope Probe
Passive Probe, Probe Attenuation: 10:1, Bandwidth (MHz): 300MHz, Voltage: 600VppUT-P07 Scope Probe
Passive Probe, Probe Attenuation: 10:1, Bandwidth (MHz): 500MHz, Voltage: 600VppUT-P08A Scope Probe
Passive Probe, Probe Attenuation: 10:1, Bandwidth (MHz): 350Mhz, Voltage: 600VppUT-P20 High Voltage Scope Probe
Passive Probe, Probe Attenuation: 100:1, Bandwidth (MHz): 250MHz, Voltage: 1500VppUT-P21 High Voltage Scope Probe
Probe Attenuation: 1000:1, Bandwidth (MHz): 50MHz, Voltage: DC 15kVrms/AC 10kVUT-V23 high Voltage Scope Probe
Passive Probe, Probe Attenuation: 100:1, Bandwidth (MHz): 100MHz, Voltage: 2000VppCurrent Probes:
UT-P40 AC/DC Current Probe
Voltage: 600Vrms, Output: 50mV/A, 5mV/A, Max A AC: N/A, MAX A DC: 60A, Frequency: DC~100kHzUT-P41 AC/DC Current Probe
Voltage: , Output: 100mV/A, 10mV/A, Max A AC: N/A, MAX A DC: 100A, Frequency: DC~100kHzUT-P42 AC/DC Scope Probe
Voltage: , Output: , Max A AC: , MAX A DC: 200A, Frequency: 150KHzUT-P43 Current Probe
Output: 100mV/A, Max A AC: 20A, MAX A DC: 20A, Frequency: DC~25MHzUT-P44 Current Probe
Output: 50mV/A, Max A AC: 40A, MAX A DC: 40A, Frequency: DC~50MHz
Differential Probes:
UT-P30 Differential Scope Probe
Differential Probe, Probe Attenuation: 10:1/100:1, Bandwidth (MHz): 100MHz, Voltage: ±800VppUT-P31 Differential Scope Probe
Probe Attenuation: 10:1/100:1, Bandwidth (MHz): 100MHz, Voltage: ±1500VppUT-P32 Differential Scope Probe
Differential Probe, Probe Attenuation: 100:1/1000:1, Bandwidth (MHz): 50MHz, Voltage: ±3000VppUT-P33 Differential Scope Probe
Differential Probe, Probe Attenuation: 10:1/100:1, Bandwidth (MHz): 120MHz, Voltage: ±14KVppUT-P35 Differential Scope Probe
Probe Attenuation: 50:1/500:1, Bandwidth (MHz): 50MHz, Voltage: 130VDC+PeakAC/1300VDC+PeakAC, Accuracy: 2%UT-P36 Differential Scope Probe
Probe Attenuation: 200:1/500:1, Bandwidth (MHz): 100MHz, Voltage: 560VDC+PeakAC/5600VDC+PeakAC, Accuracy: 2%
Other Accessories:
UT-ISOT Isolation Transformer
Used for Bode Plot analysis. Requires scopes to have MSO2000-S-BODE or MSO3000CS-S-BODE optionUT-M15 Logic Pod
16Ch Logic Analyzer Probe Pod for MSO and UPO Series mixed-signal oscilloscopesPlease allow 2-3 weeks lead time for new product to arrive.
