The Model 670C offers premium signal integrity with an easy to use and robust touch-screen display interface in a compact chassis. The output voltage can be adjusted in amplified mode up to 12 Volts. The innovative architecture provides unmatched performance, versatile functionality, outstanding usability, and future upgradability for the life of the instrument.
Berkeley BNC Model 670C 180 MHz 600 MSa/s Arbitrary Waveform Generator
Ordering Information
Please allow 3 - 6 weeks for this product to arrive.
This product comes with a 1 year (12 Month) warranty.
Technical Specifications

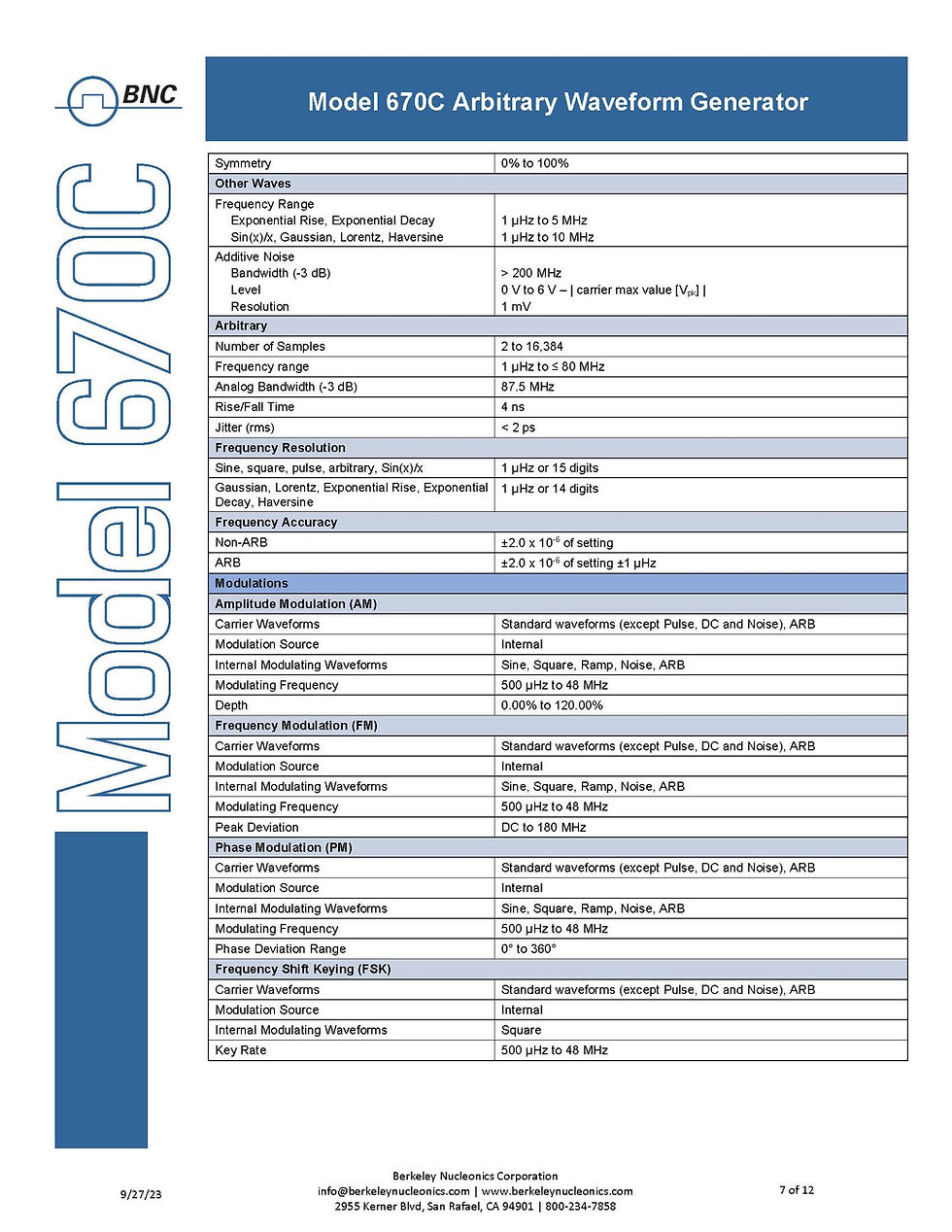

SEE PHOTOS FOR FULL BREAKDOWN OF SPECIFICATIONS
Features/Applications Key Specifications
FEATURES
- 50MHz sine, 10MHz Arbitrary Waveform
- 14-bit, 125MSa/s, 256 K-point ARB
- Pattern Generator (16 bits wide, 256K depth)
- Pulse, Ramp, Triangle, Noise
- AM, FM, PM (PSK), FSK & PWM Modulation
- Linear & Logarithmic Sweeps
- USB, LAN or GPIB Optional programming
- wavePRO Waveform Creation, Editing and Importing
APPLICATIONS
- Nanotechnology, Automotive to Power Industry testing
- Radar, Medical / Biomedical Simulations
- Phase Sync'd signals for MEMS, gyro control
- Count rate Simulation (linear or non-linear)
- Throughput / Response Measurements
KEY SPECIFICATIONS
- 50MHz ARB with 14 bit, 125M samples/sec, 256K memory
- Display - Illustrates Active Waveform
- Sync - Multiple units together, or to an external clock
- Functions - Square Wave w/ 10nS Risetimes, ramps, triangles, pulses with adjustable edges to 10nS, noise to 20MHz
- Standard Waveforms —Sine, Square, Ramp, Triangle, Pulse, Noise, DC
- Built-In ARB Waveforms — Exponential Rise and Fall, Negative Ramp, Sin(x)/x, Cardiac
- Total Harmonic Distortion —DC to 20kHz, 0.04%
- Square Wave —1uHz to 25MHz
- Modulation Modes - AM, Amplitude Modulation; FM, Frequency Modulation; PM, Phase Modulation; PWM, Pulse Width Modulation; FSK, Frequency Shift Keying
- Pulse Mode Frequency—10MHz
- Pulse Mode Width —10nS res
- Arbitrary Mode Frequency — 1uHz to 10MHz
- Arbitrary Model Length — 2 to 256K
