Today’s cars include many highly sophisticated Electronic Control Unit (ECU) with sensitive electronic components. The Model 685 combines 6.16 GSa/s with a 16-bit vertical resolution, making it an ideal tool for successfully addressing the new testing challenges in the automotive industry.

CAN bus, CAN-FD, LIN, Flexray, SAE J2716 SENT Protocol Emulation
EMI debugging, troubleshooting and testing
Electrical standards emulation up to 12V
Power MOSFET circuitry in automotive electronics optimization

Berkeley BNC Model 685 Arbitrary Waveform Generator 2GHz 6GS/s 16-Bit AWG

Quantity

Ordering Information
Please allow 3 - 6 weeks for this product to arrive.

This product comes with a 1 year (12 Month) warranty.
Technical Specifications
SEE PHOTOS FOR FULL BREAKDOWN OF SPECIFICATIONS
Features/Applications

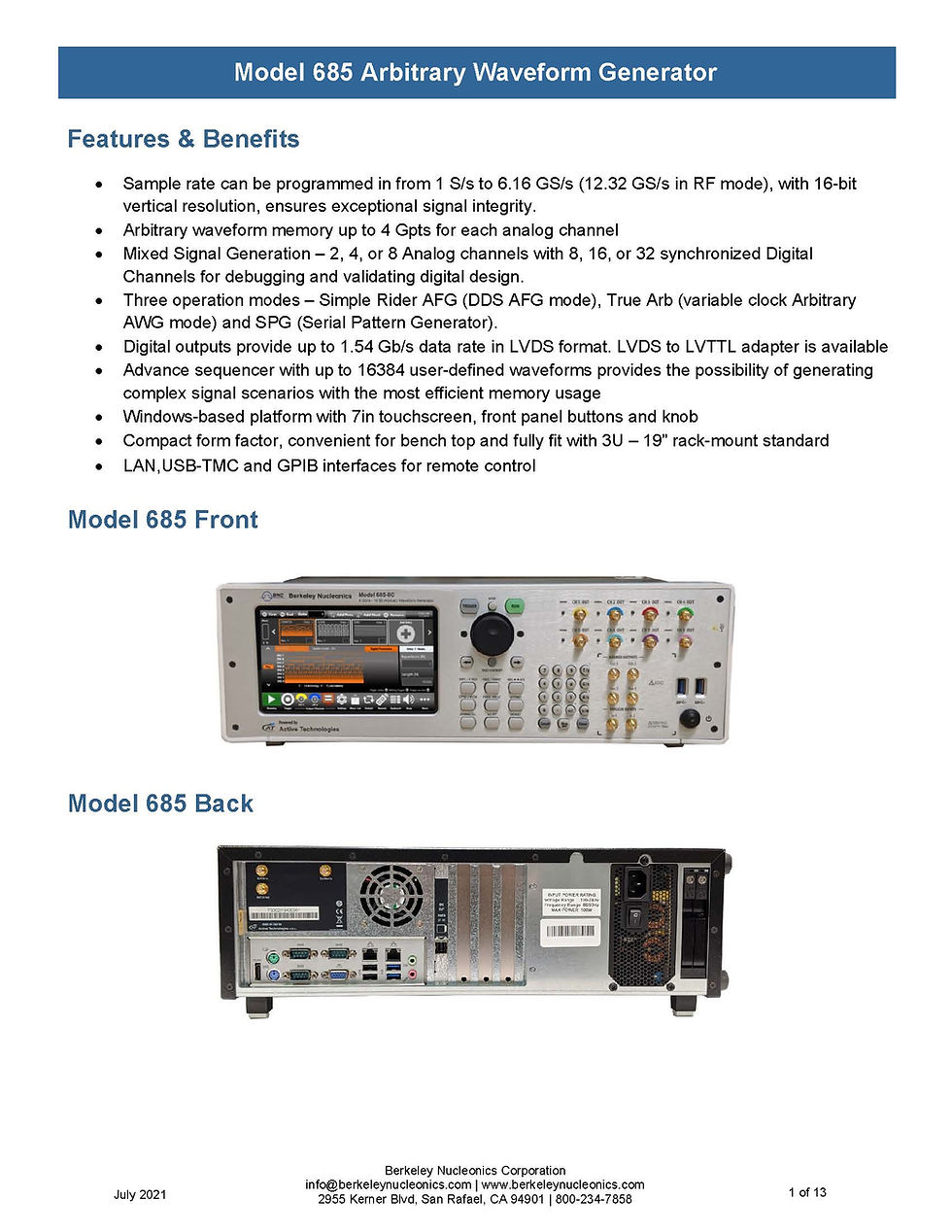

FEATURES
- Number of Channels: 2, 4 or 8
- Resolution: 6.16 GS/s 16 Bit Vertical
- Bandwidth: 2 GHz
- Offset: ± 2.5V
- Amplitude: 3Vpp Differential (5Vpp Single-Ended) into 50 Ω
- Memory: 4096 Mpts Waveform per channel

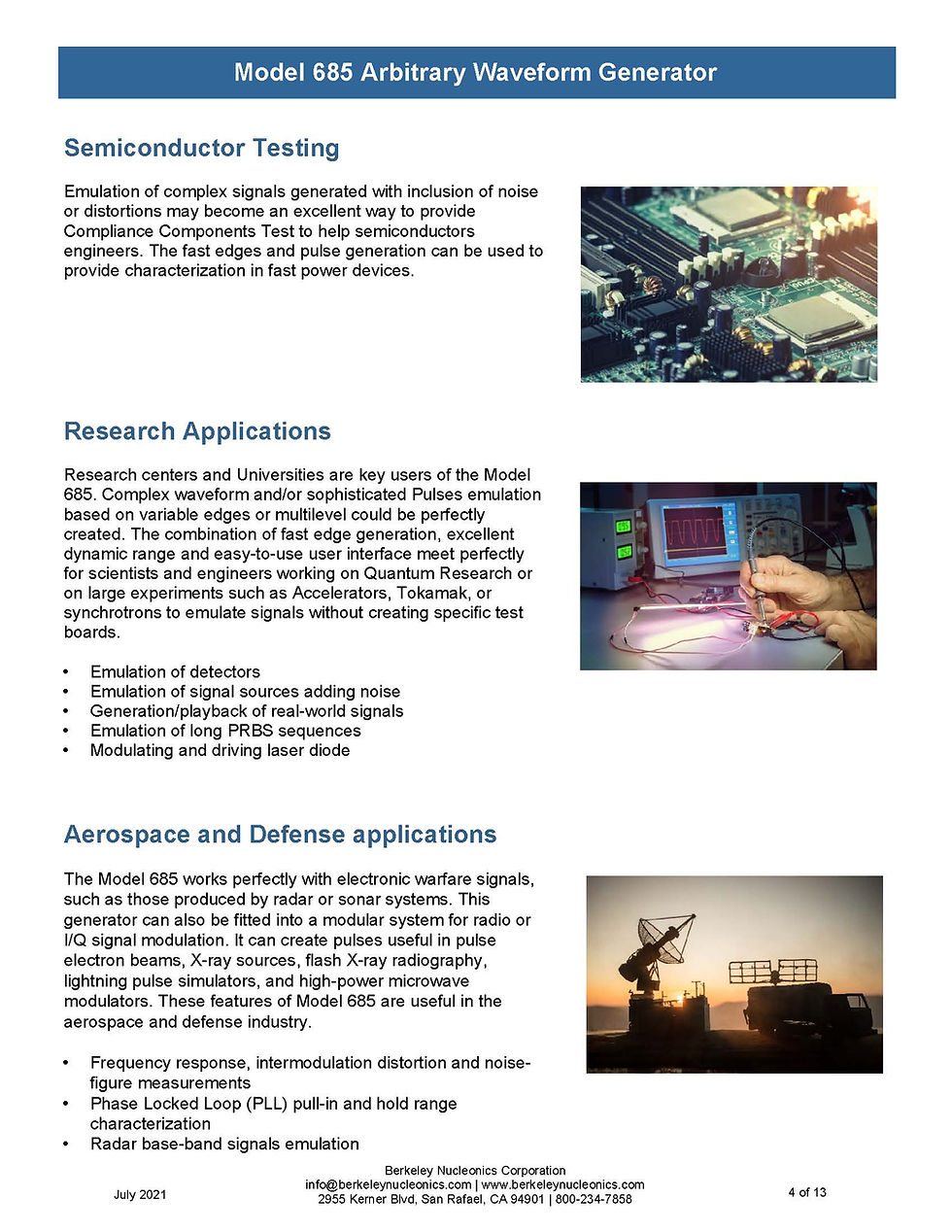

APPLICATIONS
- Automotive
- Research Applications
- Neuroscience
- Aerospace and Defense
- IoT and Industry 4.0
- Semiconductors Test
- Quantum Computing
