The VC431 is a triaxial vibrometer (in accordance with the regulation ISO 804) and the ideal instrument for vibration measurements in-line with Directive 2002/44/EC on risks arising from the exposure of workers to mechanical vibration.
The VC431 can also evaluate the effect of vibration on the structure of buildings and terrain (UNE 22-381-93).
The VC431 is a user-friendly instrument (thanks to its simple iconographic display) with a single scale, simultaneous measurement and display of all parameters for each application.
With the CESVA Capture Studio software (included) the measurements carried out with the VC431 can be downloaded (USB) and the results analyzed quickly and simply.
Its reduced weight, versatility and user-friendliness make it the hand-held instrument par excellence for the assessment of risks related to vibration.
Accelerometer is not included.
CESVA VC431 Triaxial Vibrometer ISO 804 Vibration Meter
Order Info
Please allow 3 - 4 weeks lead time for this new product to arrive.
Includes a One Year warranty from manufacturer.
Contact us for any questions or more information about this product.
Features
- Vibrometer in-line with ISO 8041

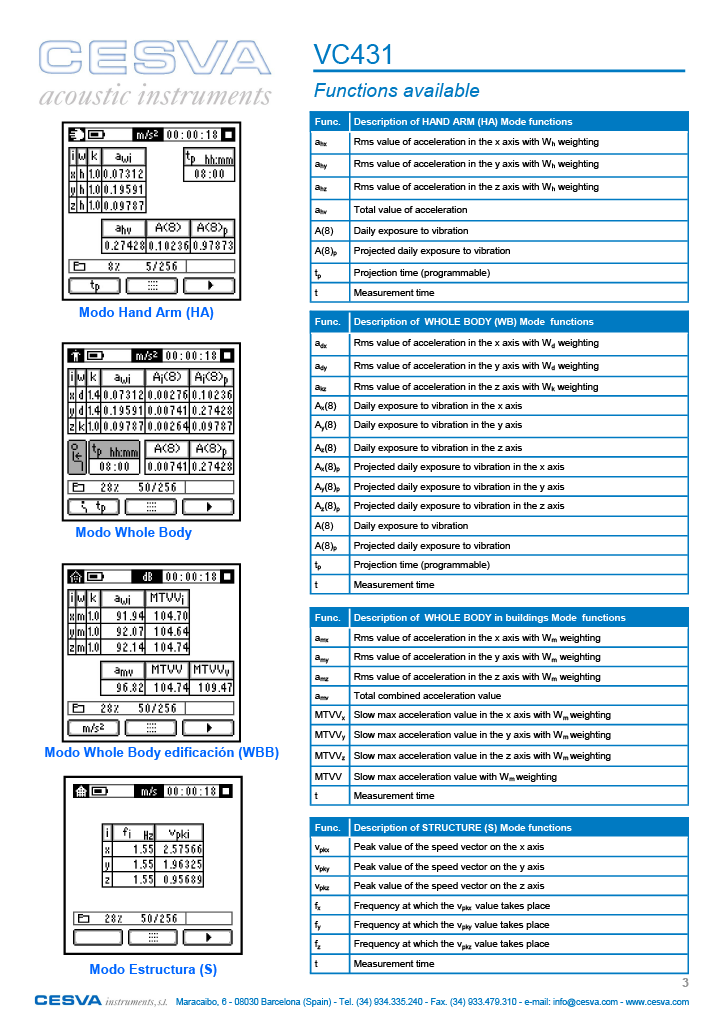

- Measures all parameters simultaneously for each application (HA, WB, Buildings and Structure)
- Single measurement scale, irrespective of the application (HA, WB, Buildings and Structure)
- Great storage capacity: saves the time history of the measurement
- USB connectivity & power
Included Accessories
- FN431 Case
- STF030 Computer program
- CN1US USB cable miniature connector—USB Two 1,5 volt batteries
Optional Accessories
- AC031: Triaxial IEPE accelerometer for the measurement of workplace vibration exposure transmitted through the hand-arm system.
- AC032: Triaxial IEPE accelerometer for the measurement of whole body vibrations in building interiors
- AC033: Triaxial IEPE accelerometer for the measurement of whole body workplace vibration exposure
- TR040: Tripod for sound level meter, dosimeter and microphone. Maximum height 1.1 meters.
- TR050: Tripod for sound level meter, dosimeter and microphone. Maximum height 1.55 meters.
- ML040: Briefcase (48 x 37 x 16 cm)
- ML012: Briefcase (39 x 32 x 12 cm)
- ML060: Special outdoors briefcase (51 x 38 x 15 cm) for Sound Level Meter / Dosimeter / Vibrometer, Sound Calibrator and Tripod.
- AM300: Mains power feeder with USB
Accessories included with the AC031 accelerometer: AA031 Handle adapter for the AC031 accelerometer AA131 Tool adapter for the AC031 accelerometer.
Accessories included with the AC032 accelerometer: CN032 Connection cable from the AC032 accelerometer to the VC431 vibrometer.
