The MI 3110 EurotestIM is a perfect tool for testing of permanent integrated or portable Low Voltage Electrical Installa-tions supplied by Generator or Transformer and protected by an IT earthing system. Designed for simple but efficient safety testing of Integrated IT Earthing System powered with LV Generator or Transformer! With a single, pre-programmed AUTO SEQUENCE® with sub-tests and adjustable limits it is possible to perform all the necessary verifications of safety limits of a specific LV IT installation.
Metrel MI 3110 EurotestIM - Low Voltage Electrical Installation Tester
Ordering Information
Please allow 2 - 3 weeks lead time for this new product to arrive.
This product is only available to customers in North America and Canada.
Contact us for any questions or more information about this product.

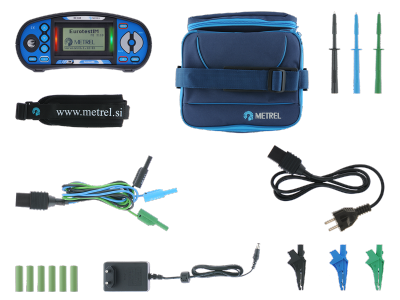

Included Equipment
- Instrument MI 3110 EurotestIM
- Soft carrying bag
- Mains cable
- Test lead, 1.5 m
- Crocodile clip, black, green, brown
- Test probe, black, green, brown
- NiMH rechargeable batteries, type AA, 6 pcs
- PC software EuroLink PRO
- USB and RS232 cable
- Instruction manual
- Calibration certificate
Features and Application
Measuring functions
- Voltage, frequency and phase sequence.
- Line impedance and prospective short circuit current.
- Voltage drop.
- First fault leakage current (ISFL).
- Testing of insulation monitoring devices (IMD).
Key features
- AUTO SEQUENCE ®: One single AUTO SEQUENCE ® with programmable limits and sub-tests ensuring Safety on all PASS bar-rier parameters.
- Voltage monitor: IT System recognizing, Voltage Range and Voltage Balance.
- ISFL test: ISFL Single Fault Leakage current from Phase 1 and Phase 2 to PE. Fuse Trip-out Ability Evaluation, Line Impedance and Ipsc Prospective Short Circuit Current.
- IMD control: IMD Insulation / ELM Earth Leakage / RCM Residual Current Monitor Devices Control.
- IMD adjust: Alarm Trigger or Trip-Out Check and Adjust.
