The RFenable value line of amplifiers offers solid performance with respect to output power, thermal management and reliability. The amplifiers are designed for continious operation and all come with options for connectors in the Front or Back of the unit as well as options for integrated bidirectional power couplers to allow external monitoring of power.

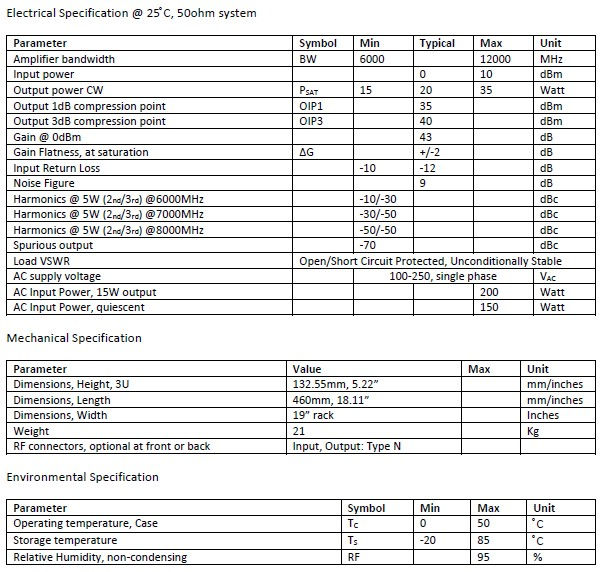

The RFe-6000-12000-15 is a wide band high power 19” rack mountable amplifier. Bandwidth: 6000MHz – 12000MHz

RFenable RFe-6000-12000-15 RF Power Amplifier 15W 6000-12000MHz Frequency Range

  • Bandwidth: 6000MHz – 12000MHz

    • Peak output power: 35W (45dBm)
    • Solid state, highly efficient GaN amplifier design
    • Build-in protection and control circuitry
    • Suitable for CW, AM and FM modulated signals
    • 50 ohm type N input and output connections
    • Highly rugged and reliable design
    • Optional build in forward and reverse power coupler

  • Please be advised the lead time on this item is 8 weeks

    This item comes with a  2  year manufacturer warranty.
