Saluki SK9901x family is about to launch five RF multi-purpose testers: SK9901J, K, R, T, B. Its main function is full dual-port vector network analysis (VNA), and it also supports simple spectrum analyzer, field strength meter, RF signal source, audio signal source, dual-port comparator and other functions.
Compared with the SK9901x one-port VNA, the new product is slightly larger in size and replaced with a larger LCD screen
Recommended Applications
The SK9901 is mainly used for adjusting various RF circuits, such as filters, amplifiers, splitters, combiners; testing input/output impedance, evaluating antenna feeding system and detecting equipment’s signal amplitudes at all levels. It can also do field strength measurement, which is useful for checking the correct operation of low powered devices with integrated antennas and when searching for interference sources etc.

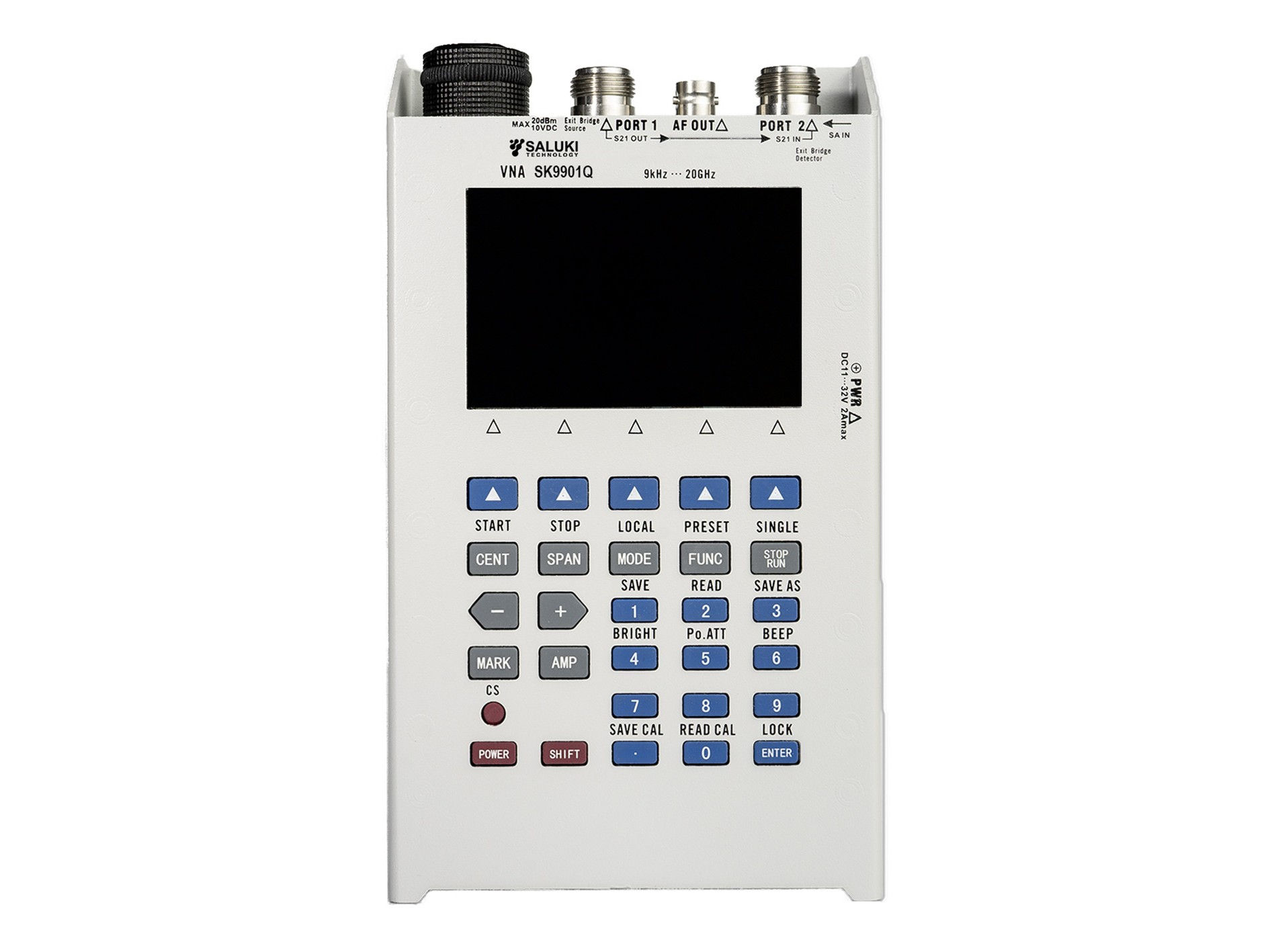

Saluki SK9901X 2 Ports Handheld Vector Network Analyzer VNA
Order
Please allow 3-4 weeks lead time for new product to arrive.
For USA customers, all items will arrive FOB. Any taxes or tariffs are prepaid by us.
Specificaitions
SK9901J Frequency Range 5KHz – 2GHz
Span Range(S11) 1KHz – 2GHz
Span Range(SPEC) 1KHz – 2GHz
SK9901K Frequency Range 5KHz – 4GHz
Span Range(S11) 1KHz – 4GHz
Span Range(SPEC) 1KHz – 4.1GHz
SK9901R Frequency Range 5KHz – 7GHz
Span Range(S11) 1KHz – 7GHz
Span Range(SPEC) 1KHz – 7GHz
SK9901T Frequency Range 5KHz – 10GHz
Span Range(S11) 1KHz – 10GHz
Span Range(SPEC) 1KHz – 10GHz
SK9901B Frequency Range 1GHz~22GHz
Span Range(S11) 1kHz~22.5GHz
Span Range(SPEC) 1kHz~22.5GHz
For more information click here.
Features
- 5 kHz to 2/4/7/10/22 GHz
- S-parameter (S11, S12, S21, S22) and time domain measurement
- RF/AF generator, dual-port comparator, field meter, spectrum function
- 100 dB(typ.) transmission daynamic range and 42dB directionality
- Temperature-compensated high-precision measurement
- Ethernet and USB data connection
Options
Module No. Item Description SK9901J Dual-Port Handheld Vector Network Analyzer 5kHz to 2GHz SK9901K Dual-Port Handheld Vector Network Analyzer 5kHz to 4GHz SK9901R Dual-Port Handheld Vector Network Analyzer 5kHz to 7GHz SK9901T Dual-Port Handheld Vector Network Analyzer 5kHz to 10GHz SK9901B Dual-Port Handheld Vector Network Analyzer 1GHz to 22GHz
