The Model 865B-M-40-X is a multi-channel wideband low phase-noise synthesizer settable from 100 kHz to 43.5 GHz. The unit is available with 2, or 4 fully independently configurable outputs. For each channel, frequency, power, phase, and modulation can be set. The settable output power range of the 865B-M-40-X is from -5 to +25 dBm.

Model 865B-M-40-X comes with an intuitive Graphical User Interface and also compatible with C++, Python, Java, and other programming languages.

Berkeley BNC Model 865B-M-40-X | 100 kHz to 40 GHz Multi-Channel Synthesizer

Quantity

Ordering Information
Please allow x - x weeks for this product to arrive.

This product comes with a x year(month) warranty.

Technical Specifications

Channels	1, 2, 3, or 4
Frequency	Range: 100 kHz to 40 GHz (settable to 43.5 GHz) Resolution: 0.001 Hz Accuracy: 0.1 ppm
Output Power	-10 to +25 dBm
Switching Speed (Sweep Mode)	500µs (20µs with option FS)
Phase Noise At 1 GHz	at 1 kHz: -132 dBc/Hz at 20 kHz-145 dBc/Hz at 10 MHz: -155 dBc/Hc
Remote Control (SCPI v1999)	Ethernet, USB, GPIB (optional)
Modulation	Pulse
Sweeps	List, Frequency
Dimensions (W x L x H) Weight	16.93 x 18.11 x 1.69in [430 x 460 x 43 mm] 22 lbs [10 kg]

Shipping Dimensions	23 x 23 x 9 in
Shipping Weight	24 lbs [11 kg]

Features and Applications
Features
- Fast switching down to 20 µs
- FM, PM, Pulse
- Internal OCXO, External variable clock reference
Applications
- Automated Test Environment
- LO for frequency converters
- Telecom / SatCom
- Quantum Computers
Options & Accessories
OPTIONS

8k Frequency Range Extension down to 8kHz

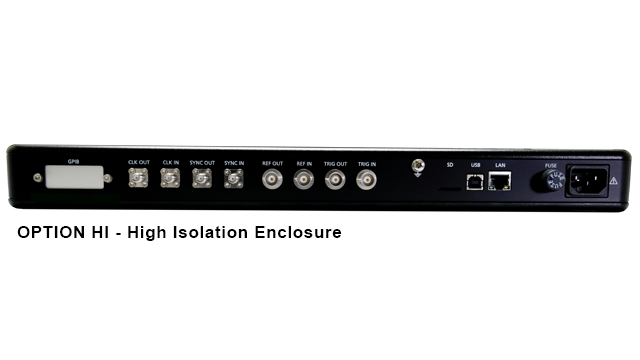

HI High Channel-to-Channel Isolation Chassis
LN Enhance Close-in Phase Noise
FS Fast Switching (per channel)
FLASH Removable MicroSD card slot
FILT Harmonic Filtering
VREF Variable External Reference Input from 1 MHz to 250MHz
GPIB GPIB Communication Port
