The PVX-2506 pulse generator is designed using a bi-directional MOSFET output stage using DEI’s DE-Series Fast Power MOSFETs. This design allows for several benefits, including fast rise and fall times with minimal overshoot, undershoot and ringing as fast settling times. To protect the pulse generator from potential damage due to arcs and shorts in the load or interconnect cable, the PVX-2506 has overcurrent detection and shutdown circuitry.
The PVX-2506’s direct coupled, air cooled, solid state design is ideal for pulsed I-V (current-voltage) characterization of semiconductor devices at up to 50 Volts and 10 Amps. It offers equally fast pulse rise and fall times, low power dissipation, and minimal overshoot, undershoot, or ringing. The PVX-2506 is also well suited for other applications requiring high current, precision voltage pulses.

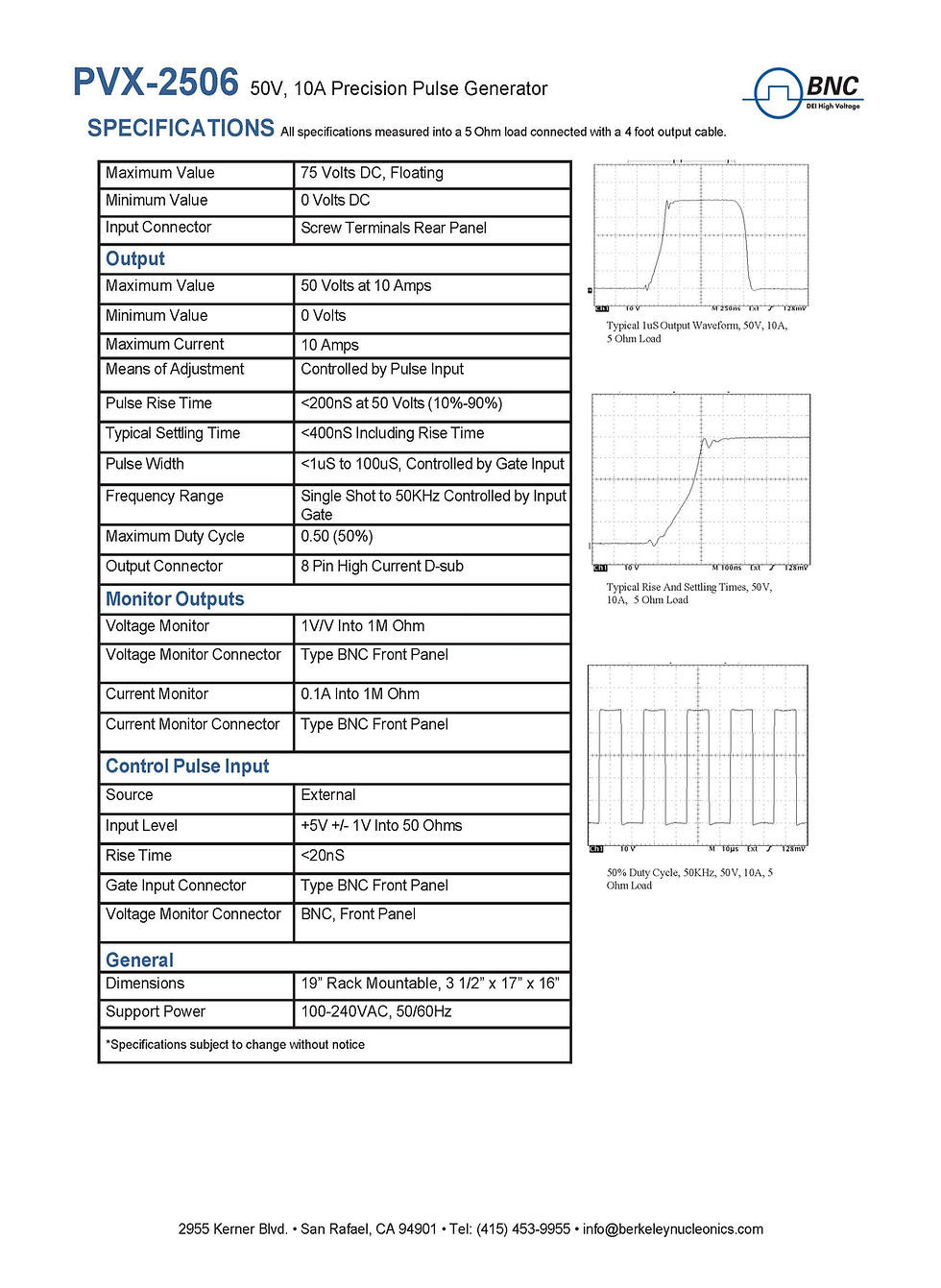

Berkeley BNC PVX-2506 | +50V Pulse Output Pulsed I/V Measurement Pulse Generator
Ordering Information
Please allow 3 - 6 weeks for this product to arrive.
This product comes with a 1 year (12 Month) warranty.
Technical Specifications
Max Voltage Amplitude 50V Pulse Polarity Positive (+) Min/Max Pulse Width <1µs to 100µs Max Frequency 50kHz Rise/Fall Time 200ns Pulse Engine (Trigger) External Remote Control N/A Form Factor Benchtop, Rackmount Dimensions (in) 22x22x12 Weight (lbs) 18 Features/Applications
FEATURES
- Output Voltage to +50V
- Output Current to 10A
- 50% Maximum Duty Cycle
- Pulse widths from <1µS to 100µS
- Instrument-quality analog voltage and current monitors for data acquisition
APPLICATIONS
- Designed for precision pulsing of semiconductor devices for pulsed I-V characterization
