The LR SMART TECH digital pressure gauges of the DM 80 product family are suitable for digital measurement and display of pressures in hydraulic systems, especially for oils and water. Depending on the version, the devices can display current measured values as well as minimum and maximum values with an accuracy of 0.5 % of the full scale value.
The LR SMART TECH Digital Pressure Gauges DM 80 are available individually or as part of a complete test case. They are very robust, reliable, long-term stable and easy to operate. In addition, the digital pressure gauges have a built-in high-capacity battery or are battery operated
and allow the pressure readings not only to be displayed but also stored.
The DM 80 portable measuring devices for recording the system pressure are characterized by their long-term stability, flexibility and the possibility of data recording through CSV file output via micro-USB.
This item comes with a one year warranty from the manufacturer. Please allow 3-4 weeks lead time for this new product to arrive.

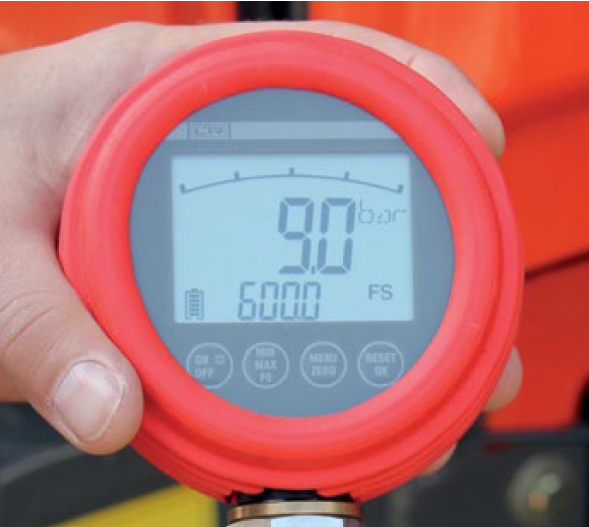

LR-Smart Tech DM 80 Digital Pressure Gauge 0.5% Accuracy 0 - 36 000 PSI
DM 80 Info/Data Sheet
Features
- Standard delivery with 3-point factory calibration certificate
- Display with bar graph, drag indicator and peak value display
- Min / Max display
- Rotatable display with backlight
- Easy reading through 16mm digit height+/- 0.5% FS
- High long-term stability
Available Pressure Ranges for Digital Gauge
Available Ranges are:
- -50…+50 mbar (-0.7 PSI to +0.7 PSI)
- -200…+200 mbar (-2.9 PSI to +2.9 PSI)
- 0…4 bar, absolut (0 to 58 PSI)
- -1…+16 bar (-14 to 232 PSI)
- 0…+25 bar (0 to 362 PSI)
- 0…+40 bar (0 - 580 PSI)
- 0…+60 bar (0 to 870 PSI)
- 0…+100 bar (0 to 1450 PSI)
- 0…+250 bar (0 to 3625 PSI)
- 0…+400 bar (0 to 5800 PSI)
- 0…+600 bar (0 to 8700 PSI)
- 0…+1000 bar (0 to 14500 PSI)
- 0…+2500 bar (0 to 36250 PSI)
