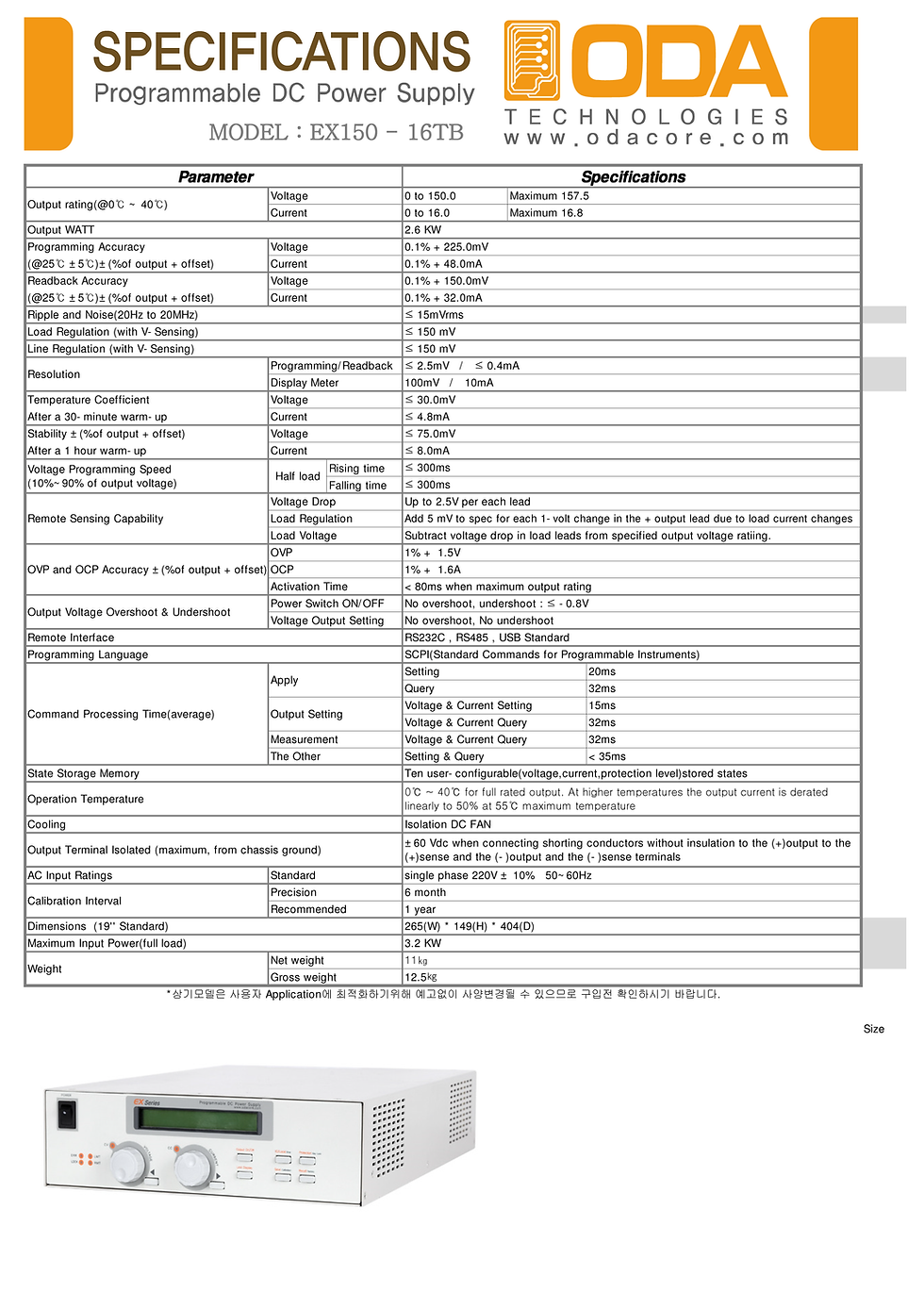

ODA EX150-16TB Switching Type Programmable DC Power Supply 150V 16A 2.4kW

• Bench top size for up to 2.4kW power with 265mm(W) x 75mm(H)/150mm(H) x 404mm(D)
• 4-Digit Display Resolution
• 16×1 Big-Char Type LCD Display attached
• Adjustment encoder provided for voltage and current
• OVP (Over Voltage Protection), OCP (Over Current Protection) Protection Mode provided
• UVL (Under Voltage Lock), OVL (Over Voltage Lock), UCL (Under Current Lock), OCL (Over Current Lock)
• Calibration function provided (manual and PC)
• Panel Lock function provided
• Memory Store & Recall function provided (It is possible to store and recall 10)
• Output ON/ OFF function (Signal control is optional)
• Limit Display function provided
• 11 diverse Factory Modes provided
• RS-232C, RS485 Communication mode is basic(TCP/IP communication is optional)
• Single phase, AC Input 220VAC ±10% and 3 phase AC Input(option)

Options

• RJ45 to RS232C cable
• RS-232C cable
• RS- 485 cable
• TCP/IP communication
• Output ON/OFF signal control
• Analog Programing(Vout & Iout voltage programming) & Monitoring(Output Voltage & Current Monitoring) by 0~5V or 0~10V, Isotated type
• AC Power Cord(Other type)
• AC Input 380V or 400V± 10%, 3-phase 4-wire system(R,S,T,N,G), 50~60Hz
• AC Input 200V or 220V± 10%, 3-phase 3-wire system(R,S,T,G), 50~60Hz

Accessories

• AC Power Cord(Type F)
• Operating Manual(QR Code)
• Demo software program(QR Code)
