EX-TB Series Single Output products are high-performance and high-efficiency programmable DC power supply with RS232C, RS485(RJ-45 type) interface based on SCPI (Standard Commands for Programmable Instruments) protocol and the combination of bench-top and system features in these power supplies provides versatile solutions for your design and test requirements in the industrial fields, R&D institute center and education fields.

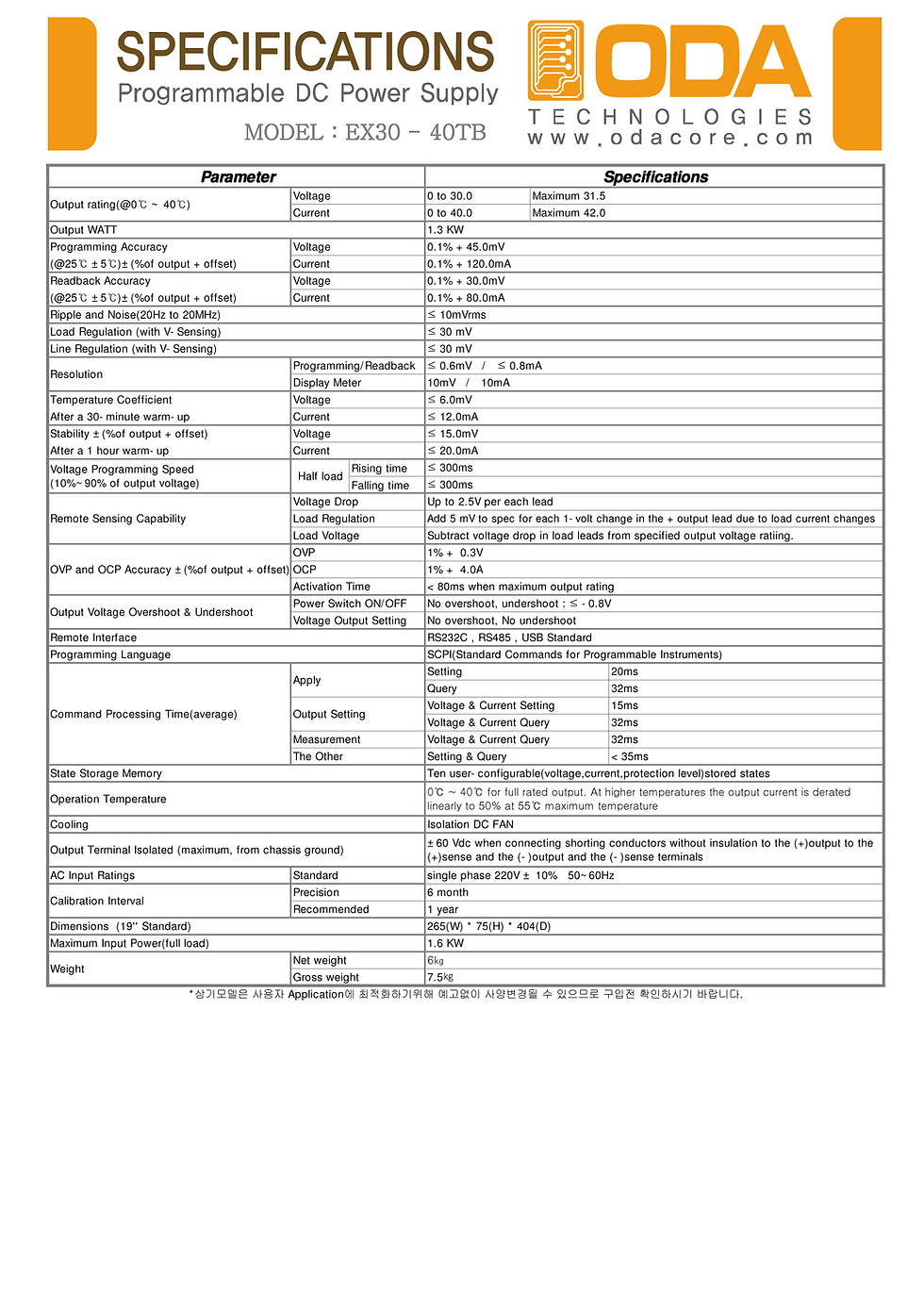

ODA EX30-40TB Switching Type Programmable DC Power Supply 30V 40A 1.2kW
US$1,899.00Price
Ordering Information
Please allow 4-6 weeks lead time for this new item to arrive.
This product comes with a 2 year warranty from the manufacturer.
Features
- Bench top size for up to 2.4kW power with 265mm(W) x 75mm(H)/150mm(H) x 404mm(D)
- 4-Digit Display Resolution
- 16×1 Big-Char Type LCD Display attached
- Adjustment encoder provided for voltage and current
- OVP (Over Voltage Protection), OCP (Over Current Protection) Protection Mode provided
- UVL (Under Voltage Lock), OVL (Over Voltage Lock), UCL (Under Current Lock), OCL (Over Current Lock)
- Calibration function provided (manual and PC)
- Panel Lock function provided
- Memory Store & Recall function provided (It is possible to store and recall 10)
- Output ON/ OFF function (Signal control is optional)
- Limit Display function provided
- 11 diverse Factory Modes provided
- RS-232C, RS485 Communication mode is basic(TCP/IP communication is optional)
- Single phase, AC Input 220VAC ±10% and 3 phase AC Input(option)
Accessories & Options
Options
- RJ45 to RS232C cable
- RS-232C cable
- RS- 485 cable
- TCP/IP communication
- Output ON/OFF signal control
- Analog Programing(Vout & Iout voltage programming) & Monitoring(Output Voltage & Current Monitoring) by 0~5V or 0~10V, Isotated type
- AC Power Cord(Other type)
- AC Input 380V or 400V± 10%, 3-phase 4-wire system(R,S,T,N,G), 50~60Hz
- AC Input 200V or 220V± 10%, 3-phase 3-wire system(R,S,T,G), 50~60Hz
Accessories
- AC Power Cord(Type F)
- Operating Manual(QR Code)
- Demo software program(QR Code)
