The LR-Cal LTC-DB-0550-60 metal block temperature calibrator with a particularly large immersion depth serves as both a temperature source and a reference device for testing and calibrating all types of temperature measuring instruments.
Temperature range from ambient temperature to +550°C
Ramp function
Thermostat tests
Computer-controlled calibrations via computer interface (PC software optionally available)
Various metal block inserts with different bores for test specimens available
Due to the large immersion depth, the holes are designed as milled recesses (around the circumference). When the insert is inserted, this results in the desired holes
Includes factory certificate of accuracy, stability, and performance
Computer interface (RS232, RS232-USB interface converter available as an accessory)
Note: This calibrator does NOT include a block insert in the standard scope of delivery.

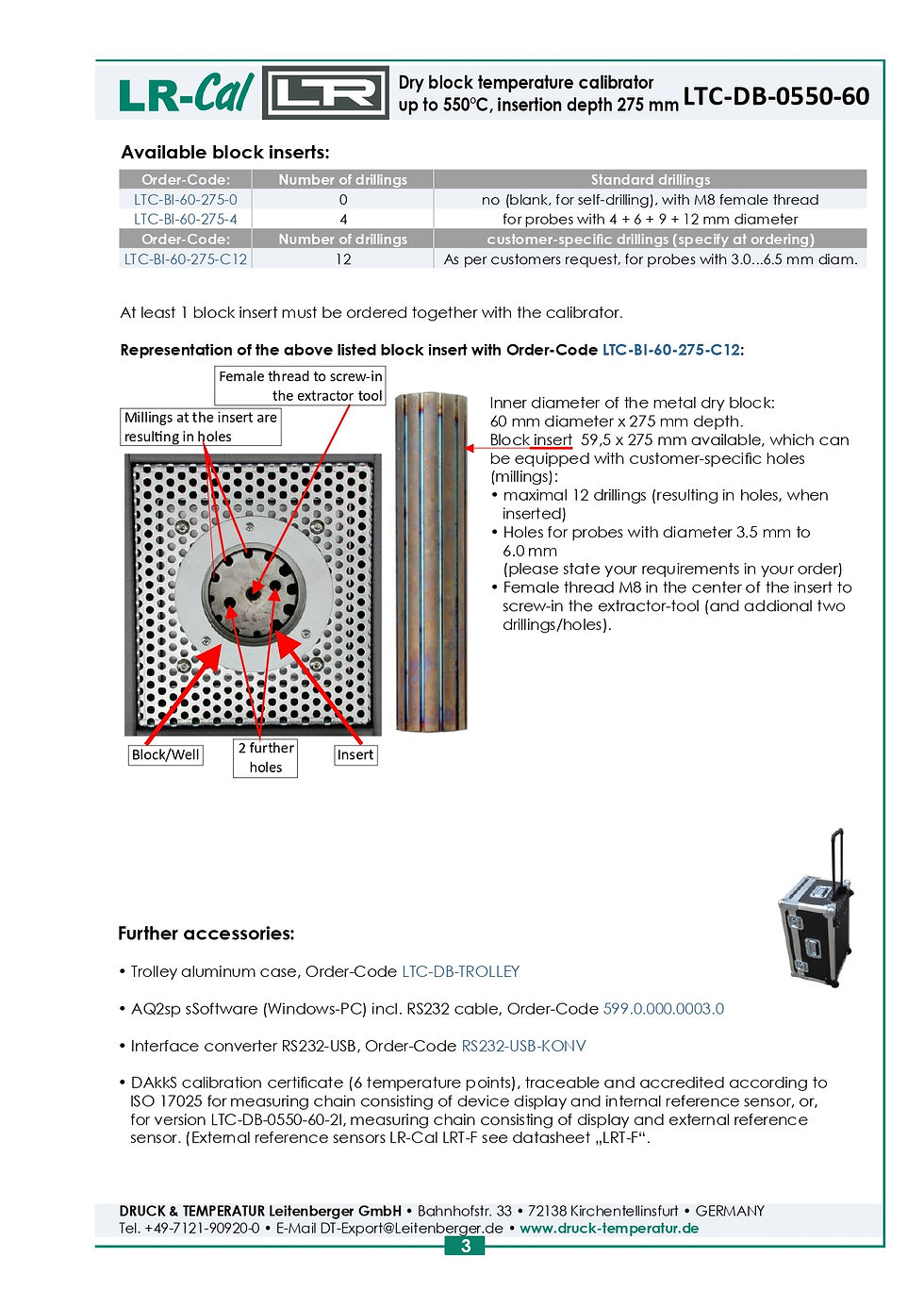

LR-Cal LTC-DB-0550-60 available block inserts
Note: This calibrator does NOT include a block insert in the standard scope of delivery.

Note: This calibrator does NOT include a block insert in the standard scope of delivery.

LR-Cal LTC-DB-0550-60 device versions

The dry block temperature calibrator LR-Cal LTC-DB-0550-60 can be supplied in two different versions:

Version LR-Cal LTC-DB-0550-60
Standard version
Order-Code LTC-DB-0550-60
Without inputs for resistance thermometer / thermocouples

Version LR-Cal LTC-DB-0550-60-2I
Version with 2 measuring inputs for resistance thermometers Pt 100 (2-, 3- or 4-wire) or Pt 1000 as well as thermocouples incl. cold junction compensation types B, E, J, K, N, R, S and T.
Order-Code LTC-DB-0550-60-2I
The signals from up to two external temperature sensors can also be displayed.
Extended scope of delivery:
Electrical connection cables, plugs/terminals for the electrical connections.

Accuracy (maximum deviation) of the two measuring inputs for device version "-2I":
Pt 100 or Pt 1000
at -40°C:
±0.09°C
at 0°C:
±0.08°C
at +150°C:
±0.11°C
at +300°C:
±0.14°C
Thermocouple type B
at +950°C:
±0.97°C
at +1050°C:
±1.03°C
at +1200°C:
±1.12°C


Thermocouple type E
at -40°C:
±0.42°C
at 0°C:
±0.40°C
at +350°C:
±0.61°C


Thermocouple type J
at +200°C:
±0.52°C
at +450°C:
±0.67°C
at +700°C:
±0.82°C


Thermocouples types K, N, R and S
at +400°C:
±0.64°C
at +700°C:
±0.82°C
at +1000°C:
±1.00°C


Thermocouple type T
at -40°C:
±0.42°C
at 0°C:
±0.40°C
at +350°C:
±0.61°C
