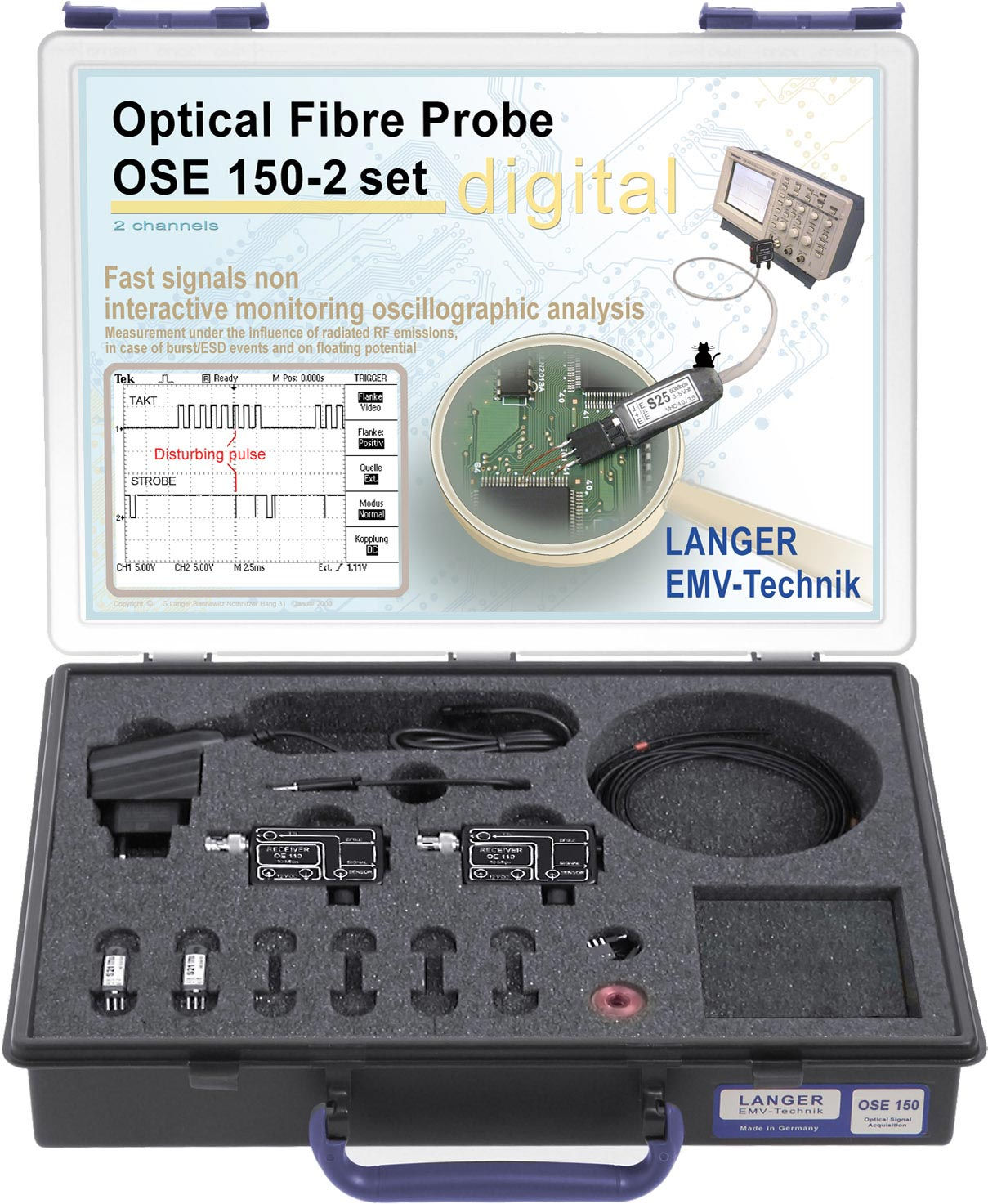

With the OSE 150-2 set it is possible to potentially free oscilloscograph digital signals under EFT/burst interference. Disturbed signals from the device under test can be easily detected. The set consists of two single sensors which are used to detect two digital signals within the device under test. It is connected via two fibre optical cables and two receivers to the oscilloscope. Inside the device under test a sensor transforms measured logical signals into light signals. Different types of sensors with different measuring ranges are available for the detection of logical signals in the device under test. Several sensor types with different measuring ranges are available. Either S25 or S21 can be chosen when placing your order. The light signals are transmitted to the optical receiver via a fibre optical cable. The receiver transforms them into digital electric signals. These can be visualised with an oscilloscope or can be used to control other devices. The system is suitable for signal monitoring from an anechoic chamber, a shielded RF chamber, or in an EMC test lab. Hard- and software can be EMC-optimized.

OSE 150-1 Set consists of:
2xOE 150, Optical Receiver
2xS25, Optical Sensor (50 Mbps)
2xLWL Ø 2.2 mm 6 m, Optical Fibre, Single 6 m
1xNT FRI EU, Power Supply Unit
1xOSE 150-2 acc, Accessories
1xOSE 150-2 case, System Case
1xDigital m, OSE User Manual
