Please allow 4-5 weeks leadtime for this product.
The PeakTech 1211 is a new, innovative oscilloscope, which is based on the size and design of a standard tablet. With the tablet oscilloscope it is possible to record each normal measured variable and measurement form as with a stationary oscilloscope. The PeakTech 1211 is a four-channel oscilloscope, it has a bandwidth of 70 MHz and it is able to perform various measurements with a sampling rate of up to 1 GS/s. Settings can be made quickly and precisely with the 8 inch touchscreen, but also with the function keys. The intuitive menu navigation enables the user to carry out an optimal analysis of the variables to be measured on systems or devices. The PeakTech 1211 is a tablet oscilloscope, which is used in almost all areas of electrical engineering due to its mobility and excellent application possibilities.

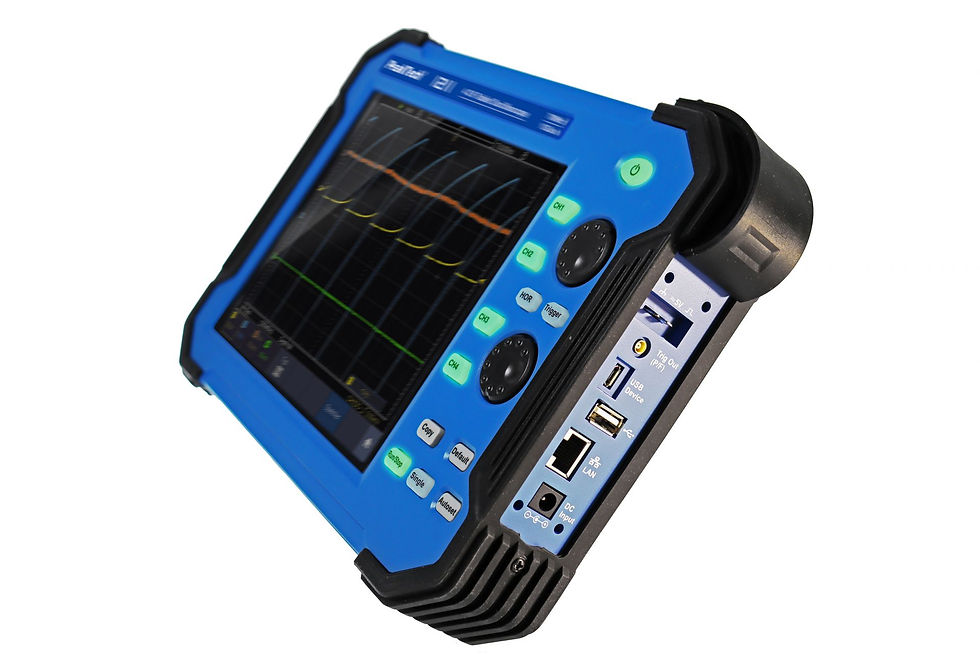

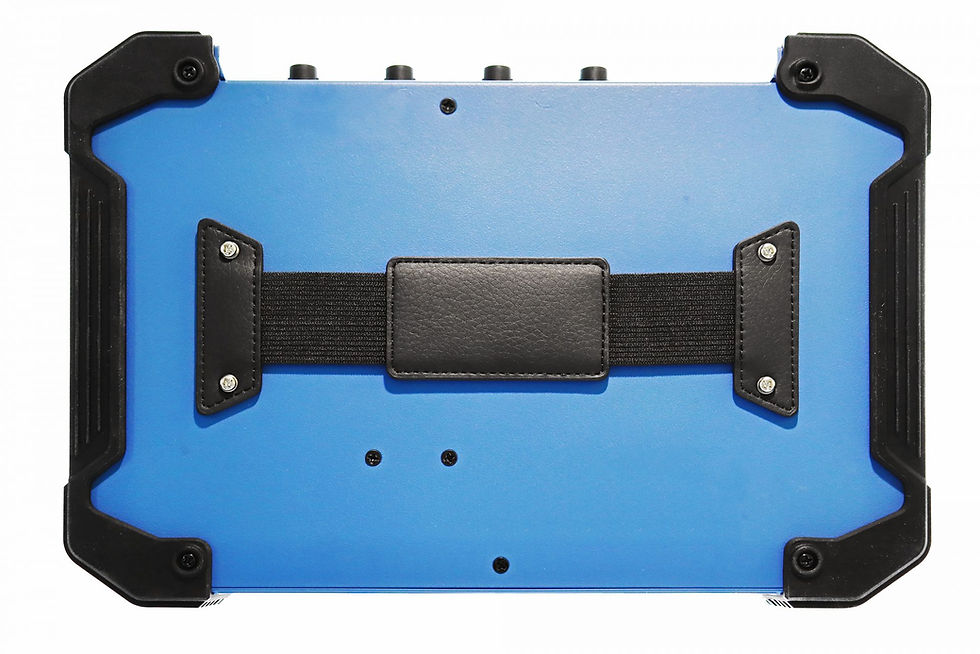

Peaktech P1211 70 MHz / 4 CH, 1 GS/s Tablet Oscilloscope
Included Accessories
Accessories: power cord with charging adapter, software CD for Windows, 4 probes, BNC cable, power adapter, stand and user manual
Specifications
-
Sampling 1 CH: 1 GS/s Sampling 2 CH: 500 MS/s Sampling 4 CH: 250 MS/s USB: ■ Bandwidth: 70 MHz Battery: Li-Ion 7,4 V 8000 mAh Channels: 4 CH Display Type: Touchscreen TFT Hor. scale max.: 1000 s/div Hor. scale min.: 2 ns/div LAN: ■ Mains voltage: 110/240 V AC; 50/60 Hz Memory depth: 40.000.000 Points Resolution: 800 x 600 Pixel Rise Time: < 5 ns Screen size (TFT): 20 cm (8") Vert. resolution: 8 Bit Vert. scale max.: 10 V/div Vert. scale min.: 1 mV/div Integr. DMM: ■
-
Order Info
Please allow 4 – 5 weeks lead time for this new product to arrive.
Contact us at info@stratatek.com for data sheets or more information about this product.
