TH2839A - 5MHz
TH2839 - 10MHz
Applications
■ Passive component:
Impedance parameter estimation and performance analysis of
capacitor, inductor, magnetic core, resistor, piezoelectric devices,
transformers, chip components and network components
■ Semiconductor component
Parasitic parameter test and analysis of LED driver integrated circuit
C-VDC features of varactors
Parasitic parameter analysis of transistors or integrated circuit
■ Other components
Impedance assessment of printed circuit boards, relays,
switches, cables, batteries
■ Dielectric material
Dielectric constant and loss angle evaluation of plastics,
ceramics and other materials
■ Magnetic materials
Magnetic permeability and loss angle assessment of ferrite,
amorphous body and other magnetic materials
■ Semiconductor materials
Dielectric constant, electrical conductivity and C-V
characteristics of semiconductor materials
■ Liquid crystal cell
Dielectric constant, elastic constant and C-V characteristics
of liquid crystal cell

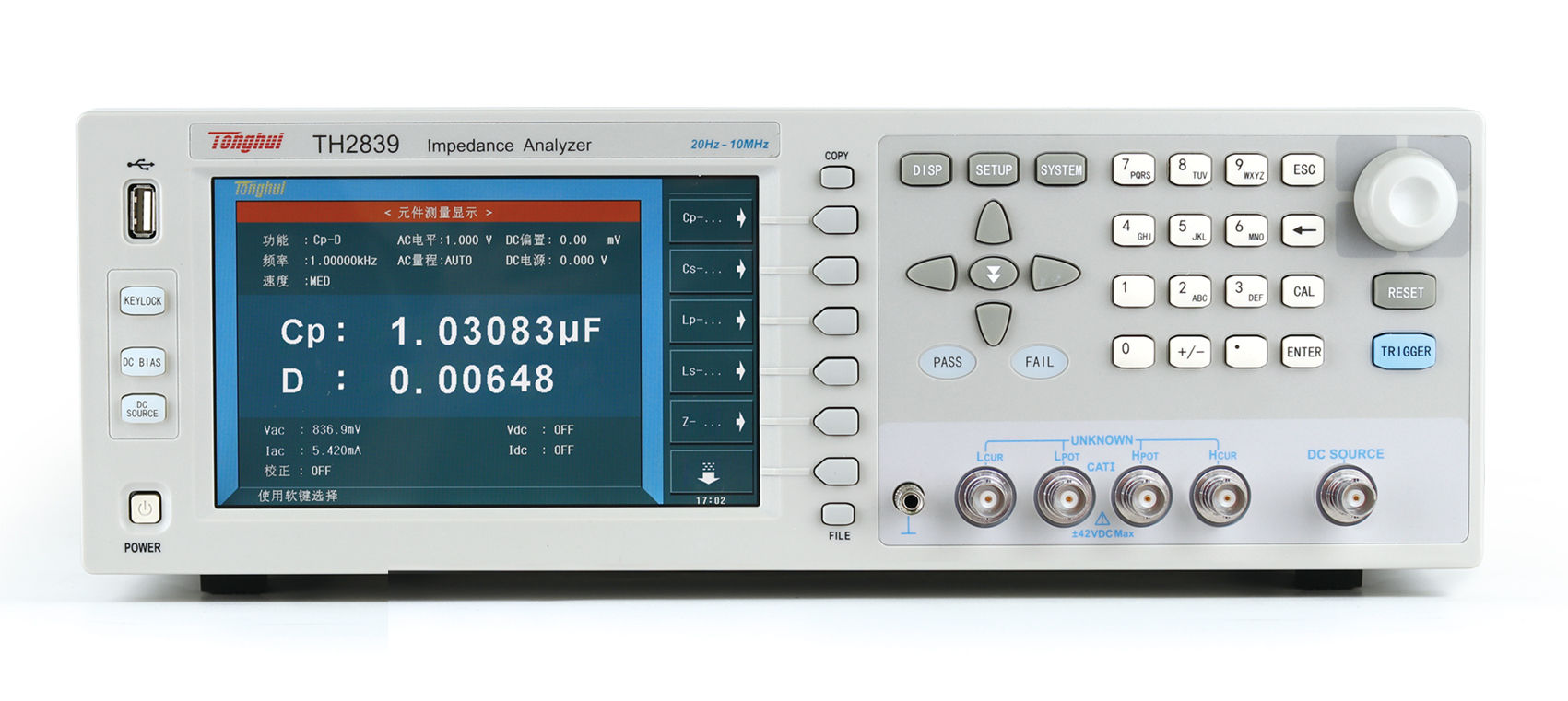

Tonghui TH2839 Impedance Analyzer High Speed Auto Balance 20Hz-10MHz
- Please see datasheet in photos for more information.
Features
■ High accuracy:Auto-balance bridge technology, 4-terminal pair
■ High stability and consistency:Up to 15 test ranges
■ High speed:Up to 7.7ms
■ High resolution:7- inch, 800×600
■ 201 Points List Sweep Function
■ Multi-parameter Graphic Sweep Function
■ Varactor diode automatic polarity function
■ 10 bins sorting, sorting result with sound and light alarm
■ Storage space: Internal: 40 groups of setting files
USB External: 500 groups of setting files, data log
files and image files
■ Simultaneous testing for Ls-RDC
■ High compatibility: Support SCPI commands, compatible with
KEYSIGHT E4980A, E4980AL, HP4284A etc. Please allow 4-6 weeks lead time for this new product to arrive. These items come with a one year warranty from the manufacturer.
